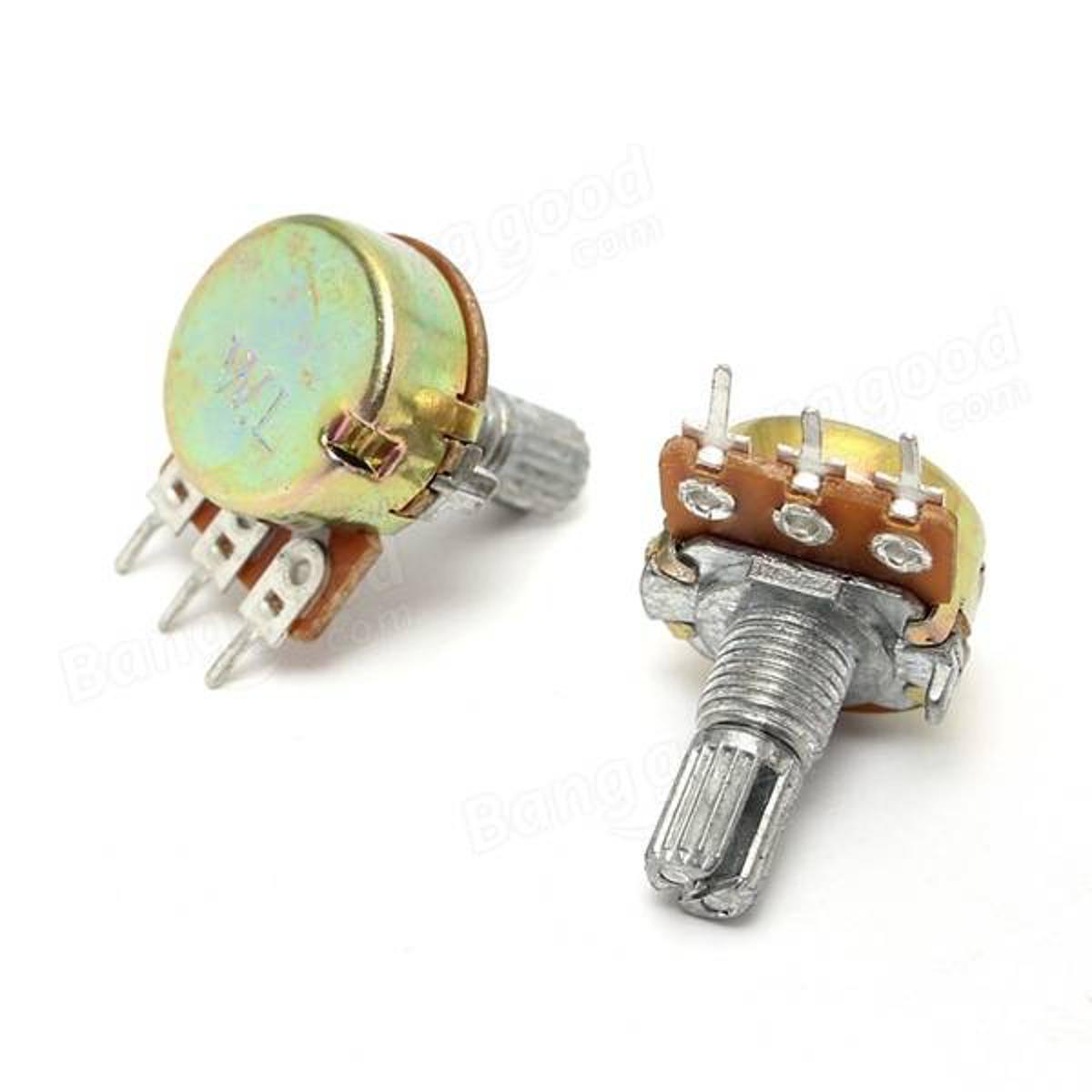

Descriptions: Panel Mount 100K Ohm Linear Potentiometer (Breadboard Friendly)

An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a ¼” metal knurled shaft diameter, solder lug terminals, no detents, and has a 100K linear taper.

Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

Specifications:

• B100K 100K ohm Single Linear Taper Rotary Potentiometers
• 100K Ohm, 1/2W Power, 3 Terminals, Single Linear (Type B), Suits Most Standard Knobs.
• Top adjustment type and knutled shaft for easy operate in daily use time.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
• Material : Metal Electronic Parts
• 100,000 Cycle Life
• Rotational travel: 300 °
• Static Stop Strength: 90 oz-in
• Rotational Torque: 0.5 to 1.25 oz-in
• Tolerance: 20%
• Base diameter: 16.5mm
• Base depth: 8.5mm
• Shaft diameter: 6mm
• Shaft length: 16mm (with thread)
• Pith: 5mm (through hole or solder)
• Weight : 13g
