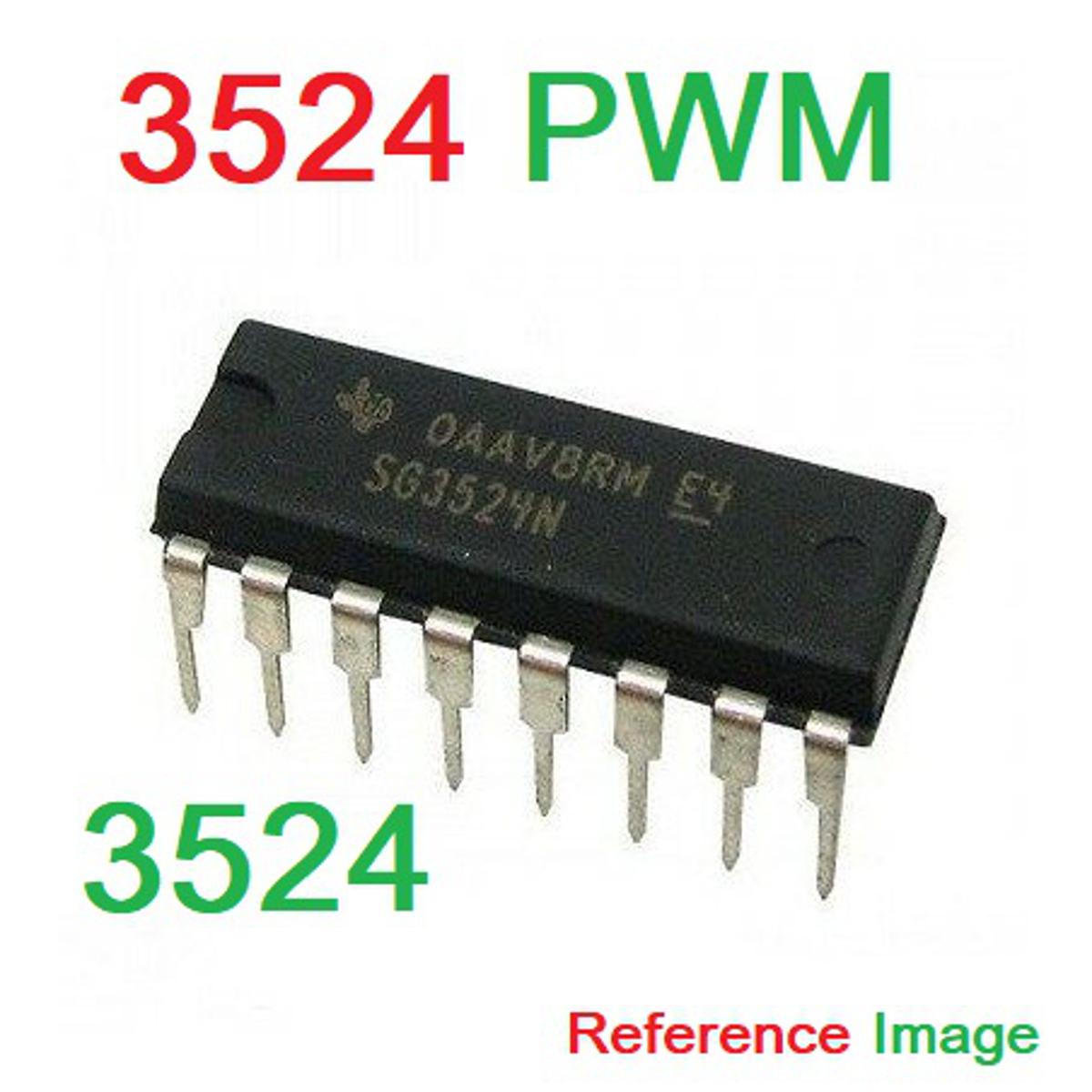

Description: 3524 PWM

This monolithic integrated circuit contains all the control circuitry for a regulating power supply inverter or switching regulator. Included in a 16-pin dual-in-line package is the voltage reference, error amplifier, oscillator, pulse-width modulator, pulse steering flip-flop,dual alternating output switches and current-limiting and shut-down circuitry. This device can be used for switching regulators of either polarity, transformer-coupled DC-to-DC converters, transfor merless voltage doublers and polarity converters, as well as other power control applications. The SG3524 is designed for commercial applications of 0°C to +70°C.

Features:

• Complete PWM power control circuitry
• Single ended or push-pull outputs
• Line and load regulation of 0.2%
• 1% maximum temperature variation
• Total supply current is less than 10mA
• Operation beyond 100kHz
• Maximum Supply Voltage:40V
• Power Dissipation at Tamb,70° C=1000mW
• Collector Output Current=100mA
• Operating Ambient Temperature Range:0°C to 70°C

• Complete PWM power control circuitry
• Single ended or push-pull outputs
• Line and load regulation of 0.2%
• 1% maximum temperature variation
• Total supply current is less than 10mA
• Operation beyond 100kHz
• Maximum Supply Voltage:40V
• Power Dissipation at Tamb,70° C=1000mW
• Collector Output Current=100mA
• Operating Ambient Temperature Range:0°C to 70°C
