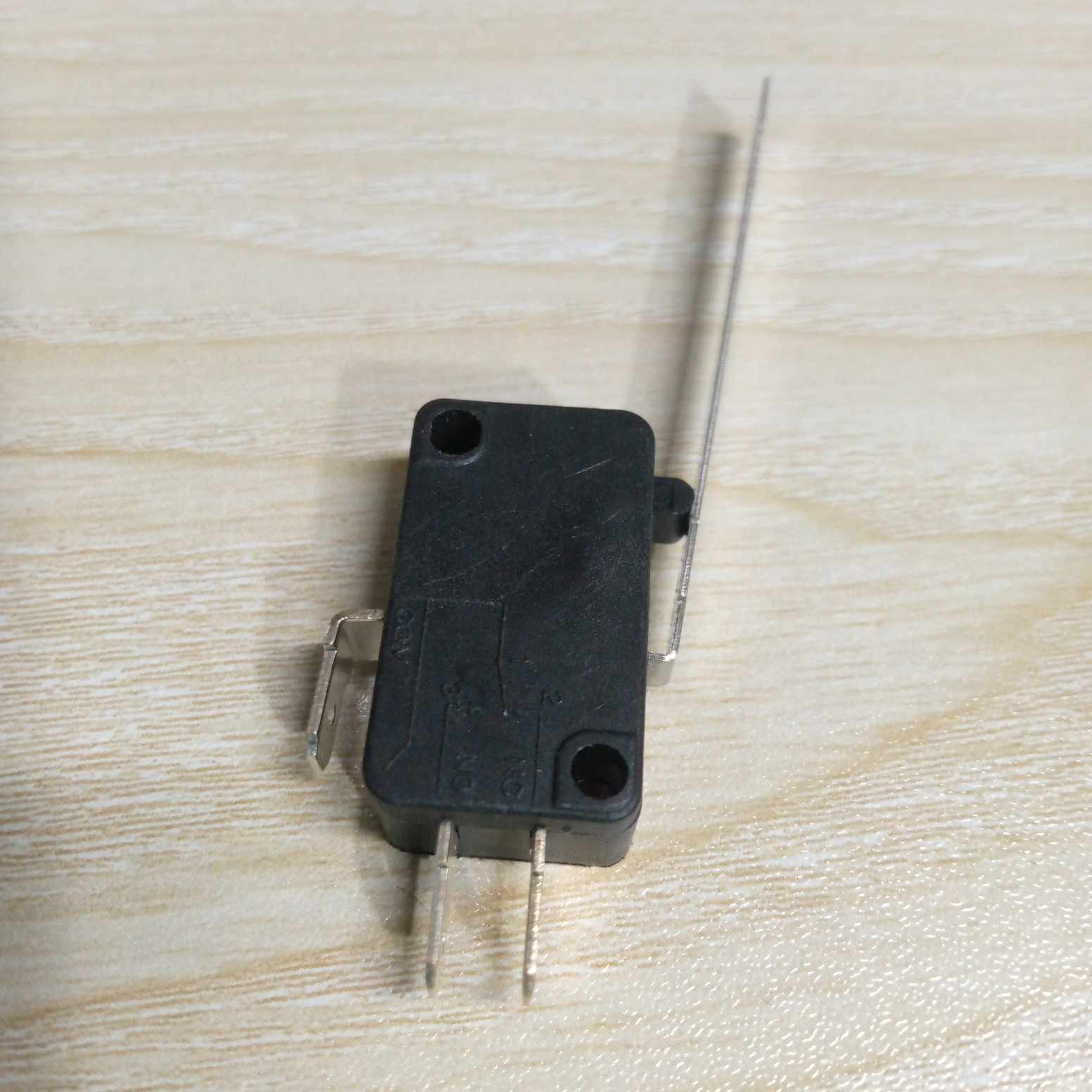

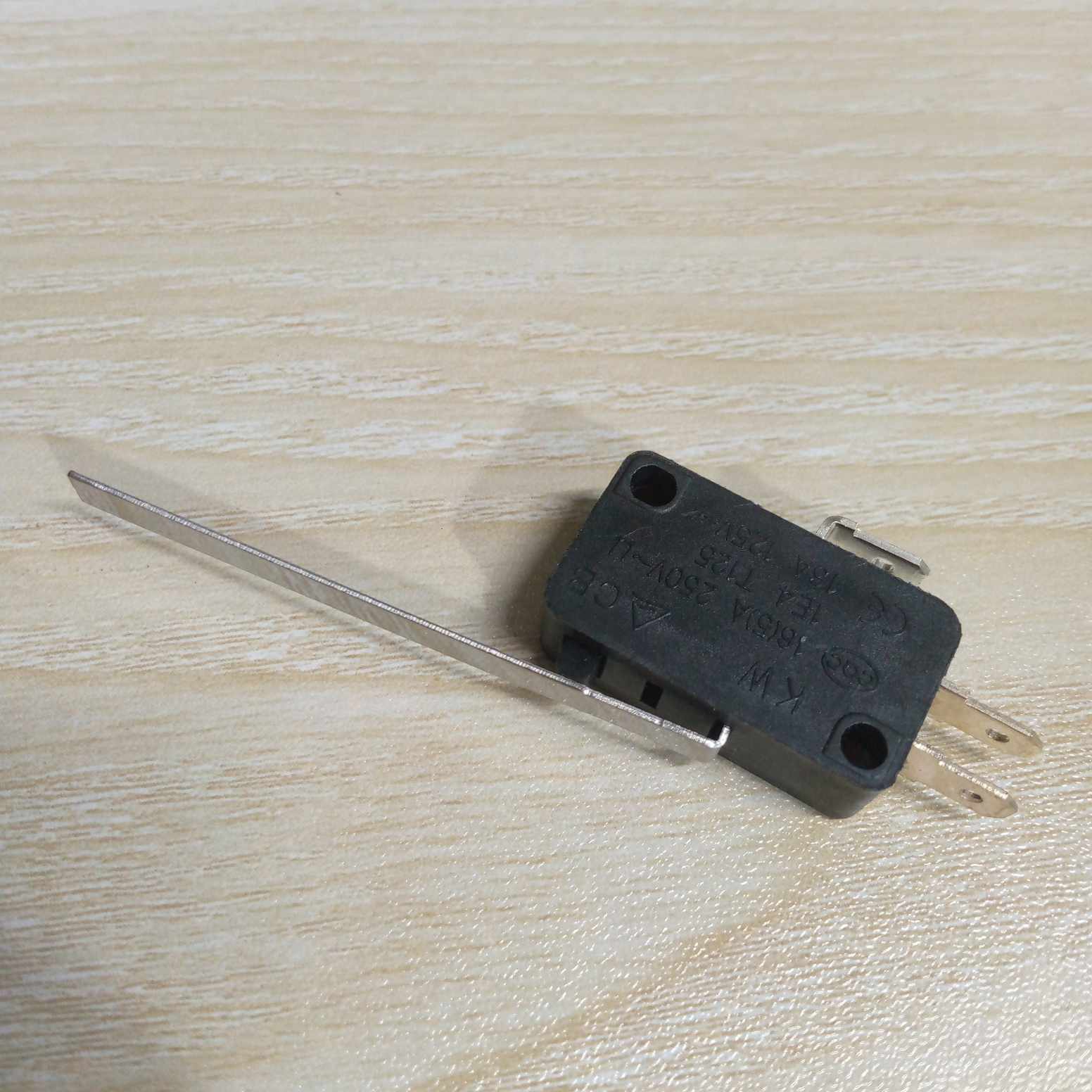

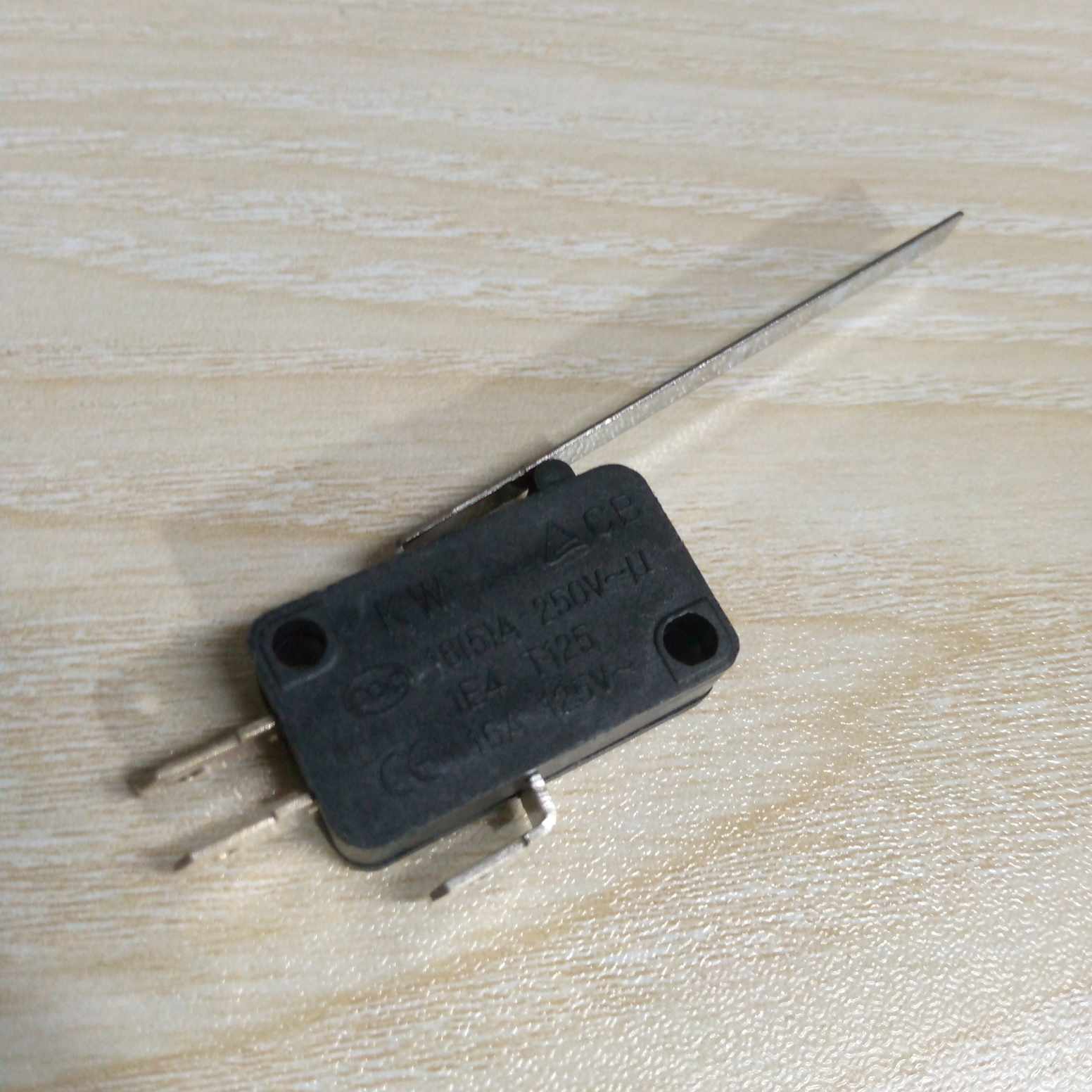

Description: Micro Limit Switch 16A 250VAC SPDT 3 Pin 50mm Long Straight Hinge Lever Switch For 3D CNC Machine Electronic Project DIY

Micro switch micro switch 16Amp 250v adopts the high quality for injection molding, the shell is high strength and good heat resistance. The die structures are special design, all action positions are high accuracy. The switch button push sounds silvery, feel perfect and good rhythm. Our switches arefast action, long life, high reliability, stability and good appearance. We specialize in switches field for more than ten years and we have established business relationship with many world famous company such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton and Emerson etc.

Features:

• Good micro switch
• Micro switch by RoHS compliant!
• The MOQ of all kinds of micro switch is flexible!
• High quality, competitive price, great service!
• The best micro switch at the best price!
• Designed for water and dust tight(IP67)
• Small compact size -Global safety approvals
• Long life and high reliability -Variety of Terminals and levers
• Widely used in Auto Control, Appliance and Other Industrial Control
• Thediestructuresare specialdesign, allaction positions are high accuracy.
• Fast action, long life, high reliability and stability.
• Lowtohigh operatingforceareavailable for various types.
• The die structures are special design, all action positions are high accuracy.
• The switch button push press sounds silvery, feel perfect and good rhythm.
• Small contact gap, snap action, high sensitivity and small operating travel.
• A Variety of levers and contact terminals are available for choosing.

Specifications:

• Actuator Type: Long Straight Hinge Lever
• Terminals: 3
• Contact Type: Normally Open
• Button plastic: PC or Nylon
• Spring Materials: Tungsten steel
• Rating:16A, 250VAC
• Operating temperature: -25 to + 80C
• Contact configuration: SPDT
• Switch Body Size: 28x10x16mm (Approx.)
• Fixing Holes Dia: 3mm
• Button Height: 3mm
• Long Straight Hinge: 50mm
• Dielectric intensity: ≥1000V AC/Min
• Contact Resistance: OF≤0.75N:≤30mΩ,OFF≤0.75N:≤50 mΩ
• Life: Mechanical≥1,000,000cycles;
• Electrical≥10,000cycles
• Insulation Resistance : ≥100MΩ
• Operating Speed: 1mm~500mm(related with actuator forms)
• Operating frequency: Mechanical 60cycles/min; Electrical 25cycles/min
• Vibration resistance: 10~55Hz,1.5mm Double amplitude
• Shock resistance: Malfunction:300/s²(approx.30)max
• Test voltage: AC 600V,50/60Hz,1min
• Certificate: CE ,CQC

Application:

Our Micro switch micro switch 16a 250v are widely used for microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine etc.
