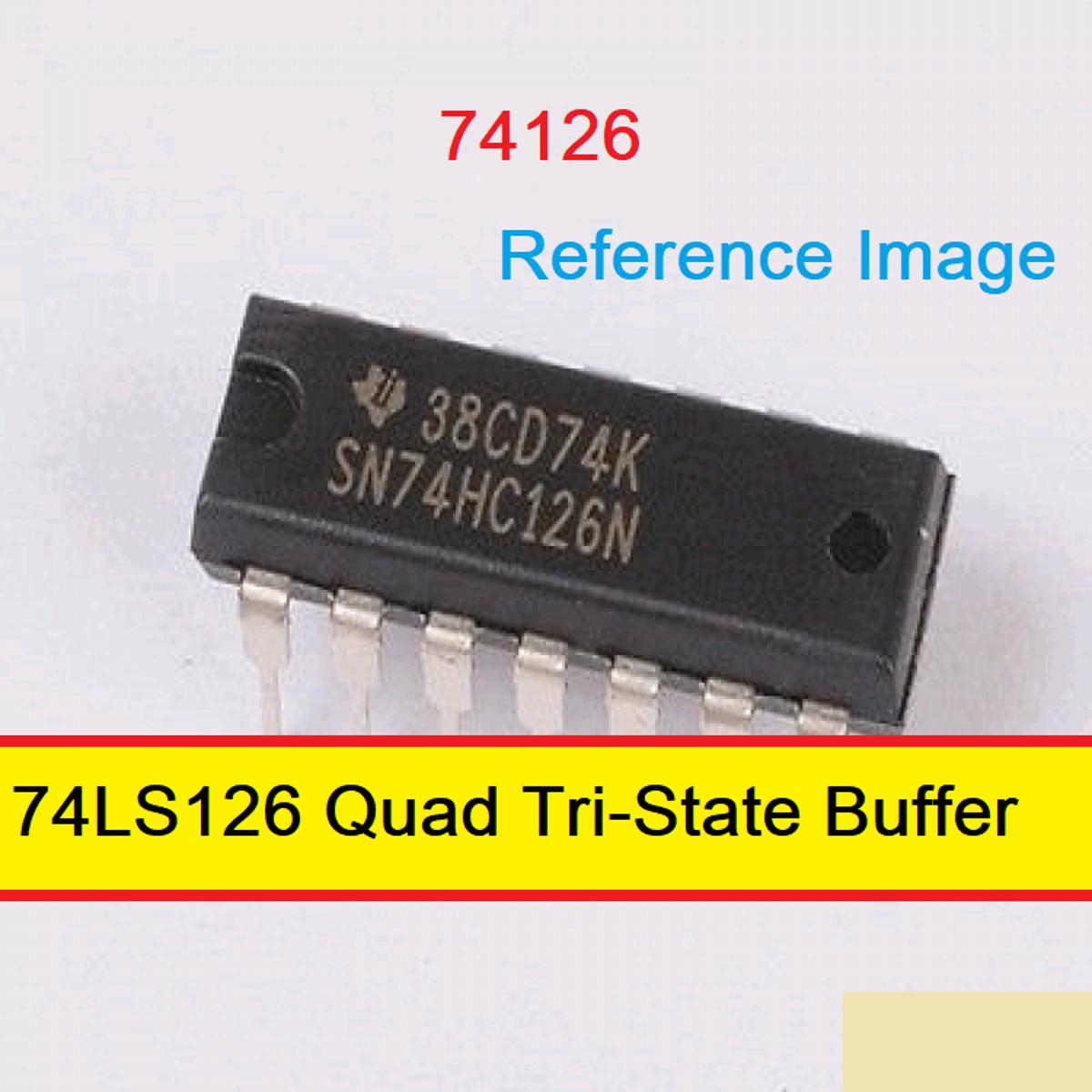

Description: 74126 SN74HC126N 74HC126 74LS126 Tri State Buffer Dual In Package DIP 14 Pin IC

These are high speed CMOS QUAD BUS BUFFER (3-STATE) FABRICATED IN SILICON GATE C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power con-Sumption. These devices require the same 3-STATE control input G to be taken high to make the output go into the high impedance state. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Features:

• Four Independent Non-Inverting Buffer Gates
• Enabled Mode
• Fast Switching Times
• Operating Temperature up to 70oC
• Standard TTL Switching Voltages
• Supply Voltage: -0.5 to +7 V
• DC Input Voltage: -0.5 to VCC + 0.5 V
• DC Output Voltage: -0.5 to VCC + 0.5 V
• DC Input Diode Current: ± 20 mA
• DC Output Diode Current :± 20 mA
• DC Output Source Sink Current Per Output Pin: ± 25 mA

• Four Independent Non-Inverting Buffer Gates
• Enabled Mode
• Fast Switching Times
• Operating Temperature up to 70oC
• Standard TTL Switching Voltages
• Supply Voltage: -0.5 to +7 V
•  DC Input Voltage: -0.5 to VCC + 0.5 V
•  DC Output Voltage: -0.5 to VCC + 0.5 V
•  DC Input Diode Current: ± 20 mA
•  DC Output Diode Current :± 20 mA
•  DC Output Source Sink Current Per Output Pin: ± 25 mA
