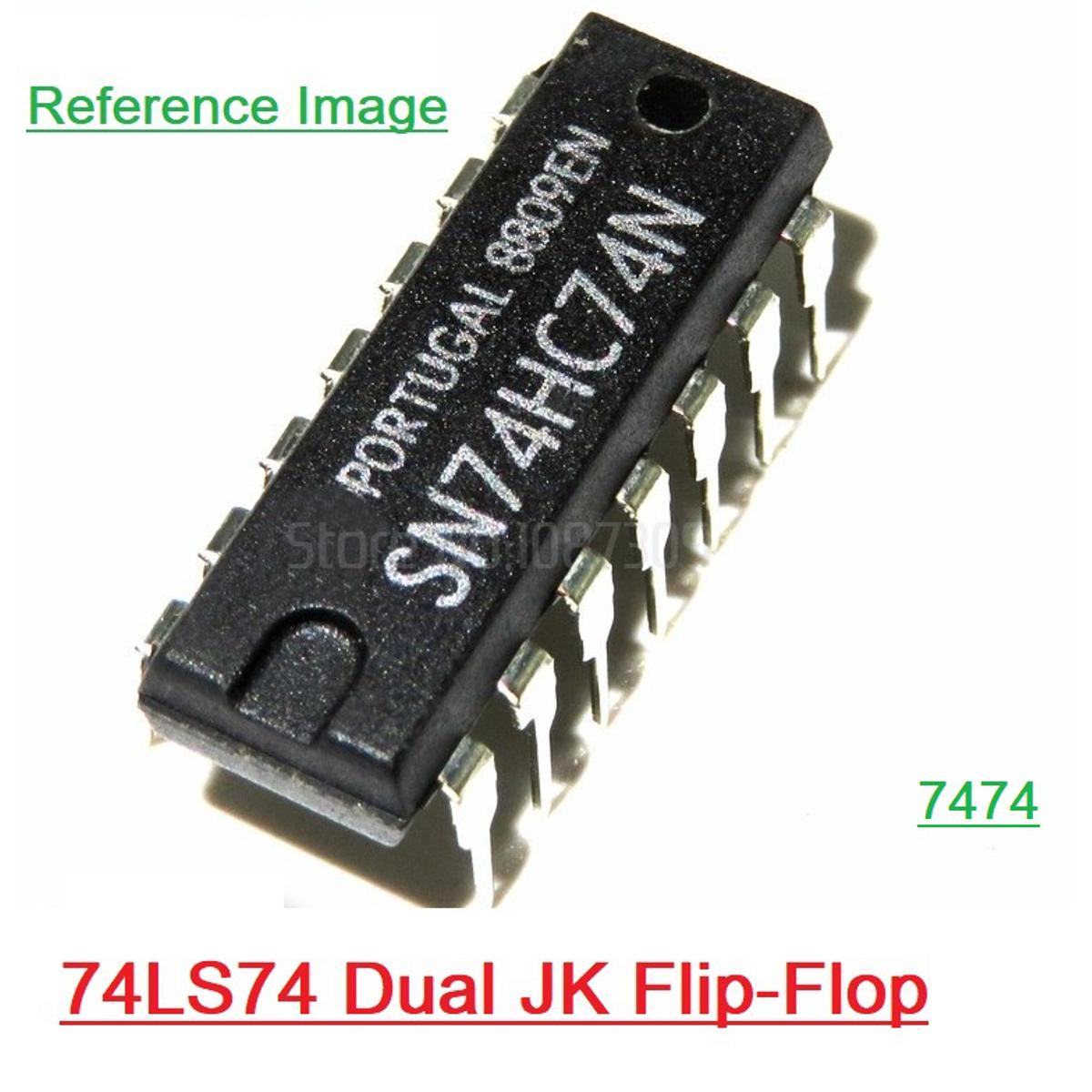

Description: 7474 SN74HC74N 74HC74 74LS74 D-Type Flip Flop Dual In Package 14 Pin IC

This device contains two independent positive-edge-trig-gered D flip-flops with complementary outputs. The infor-mation on the D input is accepted by the flip-flops on the positive going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition time of the rising edge of the clock. The data on the D input may be changed while the clock is LOW or HIGH without affecting the outputs as long as the data setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.

Specification:

• Recommended Voltage Supply Range:4.75-5.25V
• Maximum Supply Voltage:7V
• Maximum Input Voltage:7V
• Storage temperature : –65 to +150 °C

Features:

• Two independent Negative Edge Triggered JK Flip-Flops
• Standard Pin Arrangement
• Fast Switching Times
• Operating Temperature up to 70oC
• Standard TTL Switching Voltages

• Recommended Voltage Supply Range:4.75-5.25V
• Maximum Supply Voltage:7V
• Maximum Input Voltage:7V
• Storage temperature : –65 to +150 °C
