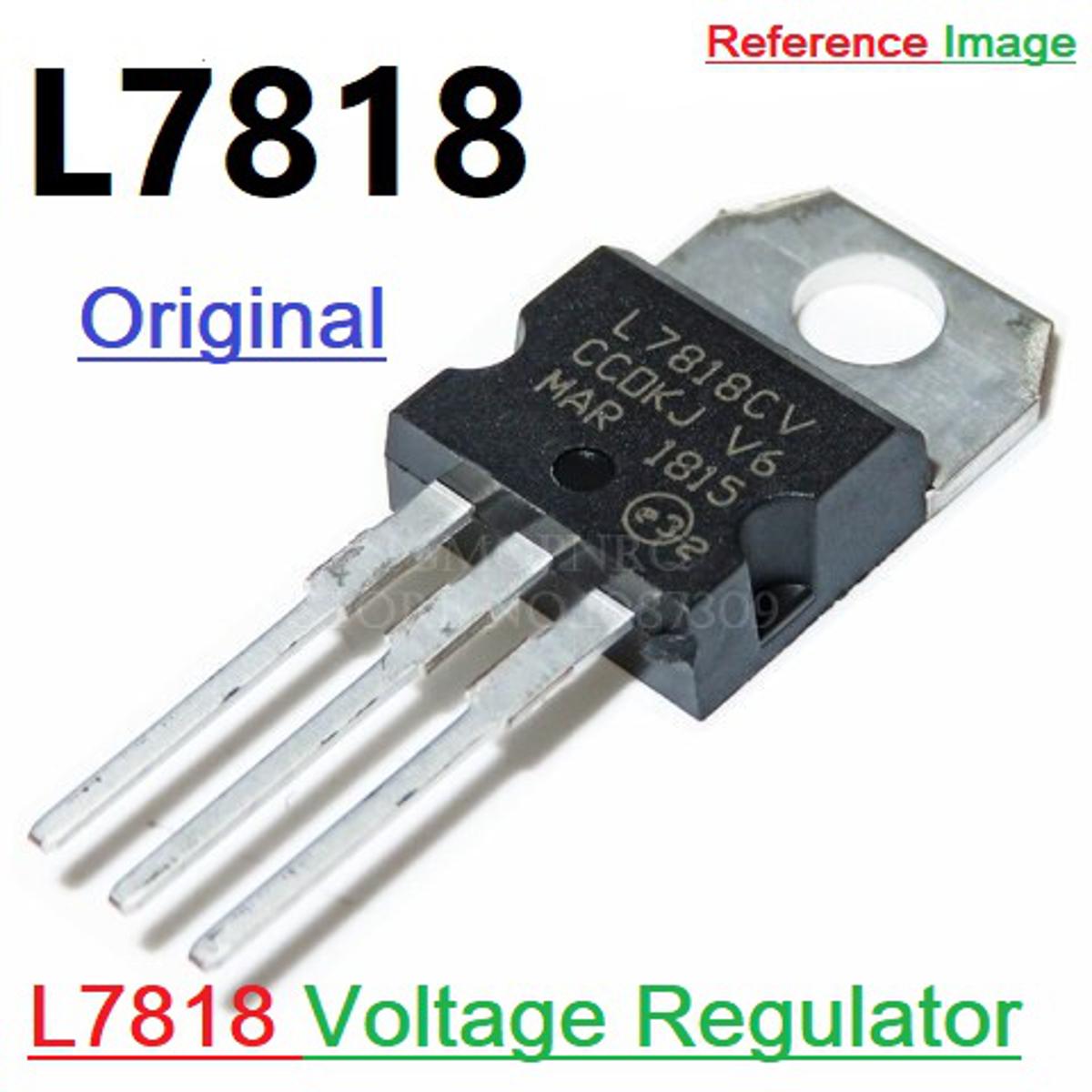

Description: L7818 Voltage Regulator

The L7818 Voltage Regulatorof three-terminal positiv regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external comp These are positive voltage regulators with 18V output.

• Operating Voltage : 15V.
• Max input voltage:35V.
• Max output current:1A
• Quiescent (standby) current: 5mA
