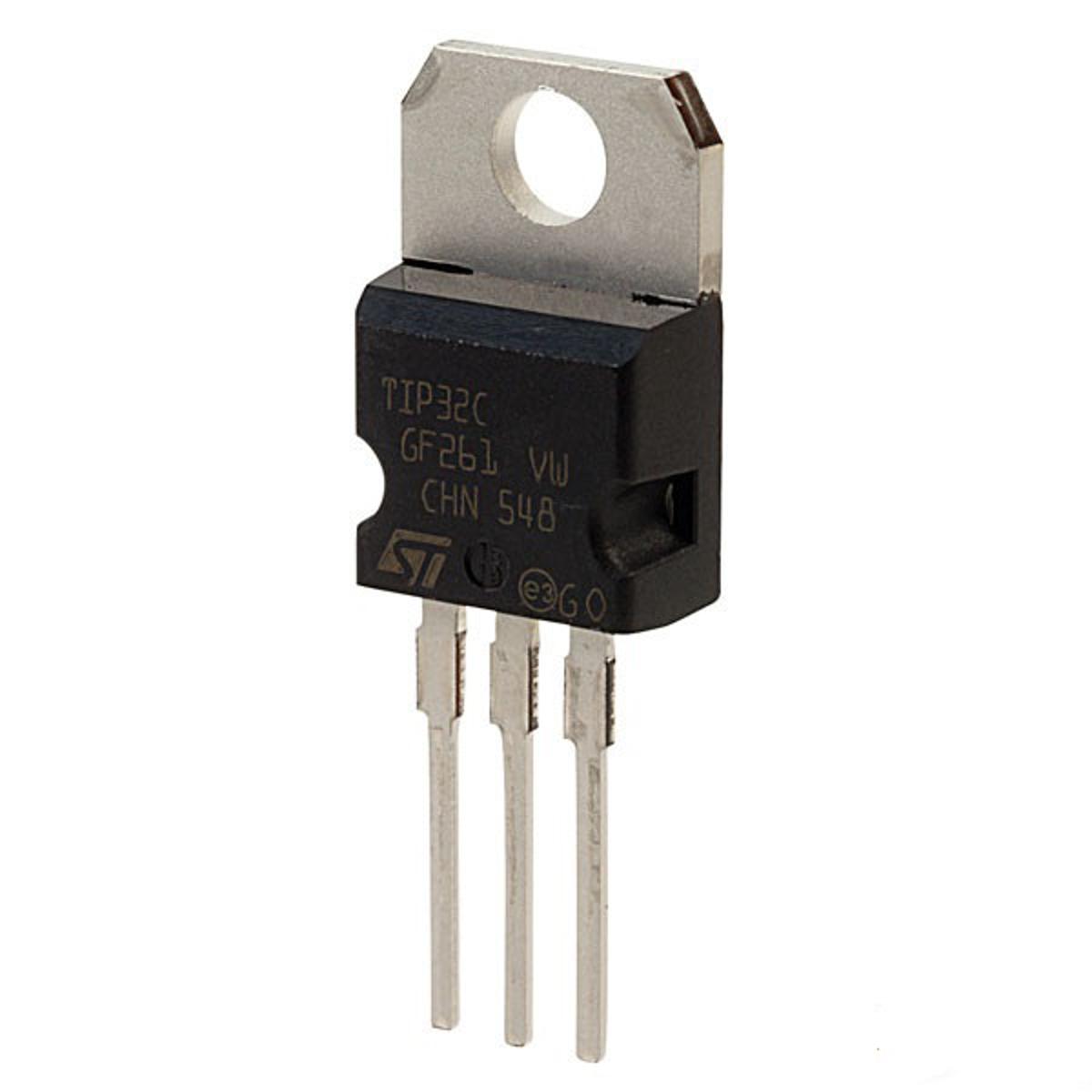

Description: TIP32C PNP Power Transistor

A CLASS TIP32C TIP32 TIP 32 Transistor 100V 3A 40W PNP Transistor Bipolar BJT Silicon Power Transistor TO-220 Package 3 Pin Leads

TIP32C is another must have transistor in your electronics lab. It is a low cost power transistor that can serve many general purpose switching and amplification applications. The maximum load this transistor can handle is 3A and the maximum peak current it can handle is 5A, the peak current is the current the transistor cannot handle continuously but in pulses. The maximum load voltage limit is 100V. Other than that it can also serve as an amplifier, the max collector dissipation is 40W which also makes this transistor ideal to use in audio amplifier stages and also as separate amplifier to drive speaker. The metal can tab or the heatsink connection tab is also connected with the collector of the transistor.

Technical Specifications:

Package Type: TO-220

Transistor Type: PNP

Max Collector Current(IC): –3A or -3000mA

Max Collector-Emitter Voltage (VCE): –100V

Max Collector-Base Voltage (VCB): –100V

Max Emitter-Base Voltage (VEBO): –5V

Max Collector Dissipation (Pc): 40W

Max Transition Frequency (fT): 3 MHz

Minimum & Maximum DC Current Gain (hFE): 10 – 50

Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

Features

Medium-power PNP Transistor

DC Current Gain (hFE) 10 to 50

Continuous Collector current (IC) is 3A

Collector-Emitter voltage (VCE) is 100 V

Collector-Base voltage (VCB) is 100V

Emitter Base Voltage (VBE) is 5V

Available in To-220 Package

Low saturation voltage

Simple drive requirements

High safe operating area

For low distortion complementary designs

Easy to carry and handle

NPN Complementary

NPN Complementary of TIP32C is TIP31C

Replacement and Equivalent

TIP32C transistor nearest possible equivalents are CJF32C, TIP32D, BD582, BD592, BDT32C 2N6475 2N6476, 2SB1016, MJE30C, MJE32C, MJE5195, NSP582, NSP5195, RCA30C, RCA32C, TIP62A, TIP62B, TIP62C, 2SB761B, 2SB762B, 2SB860, 2SB869, 2SB945, BD242C, BD540C, BD954, ECG292.

Additionally if the load you are driving is under 40V or 80V then you can also use exact match transistors which are TIP32A, TIP32B, these are the exact same replacement but in lower voltages like TIP32A can drive loads under 60V and TIP32B can drive loads under 80V.

Where We Can Use it & How to Use

TIP32C can be used in many general applications. When used as a switch it is capable to drive 3A load therefore it can be used to drive DC motors, LEDs, relays, bulbs and also at the output of arduio, raspberry pi and other platforms. Other than that it can also be used for many general audio and other signal amplification requirements.

Applications

Separate Audio Amplifier

Audio Amplifier Stages

For Handling 3A Load

DC Motors Driver and Controller

Darlington Pairs

Output of Arduino, Raspberry Pi and other Electronic Platforms

high current switching (upto 2A) loads

Can be used as medium Power switches

Large signal amplification

Speed control of Motors

Half bridge circuits

Inverter and other rectifier circuits

• Collector-Emitter Volt (Vceo): 100V
• Collector-Base Volt (Vcbo): 100V
• Collector Current (Ic): 3.0A
• hfe: 10-50 @ 3000mA
• Power Dissipation (Ptot): 40W
• Current-Gain-Bandwidth (ftotal): 3MHz
• Type: NPN
