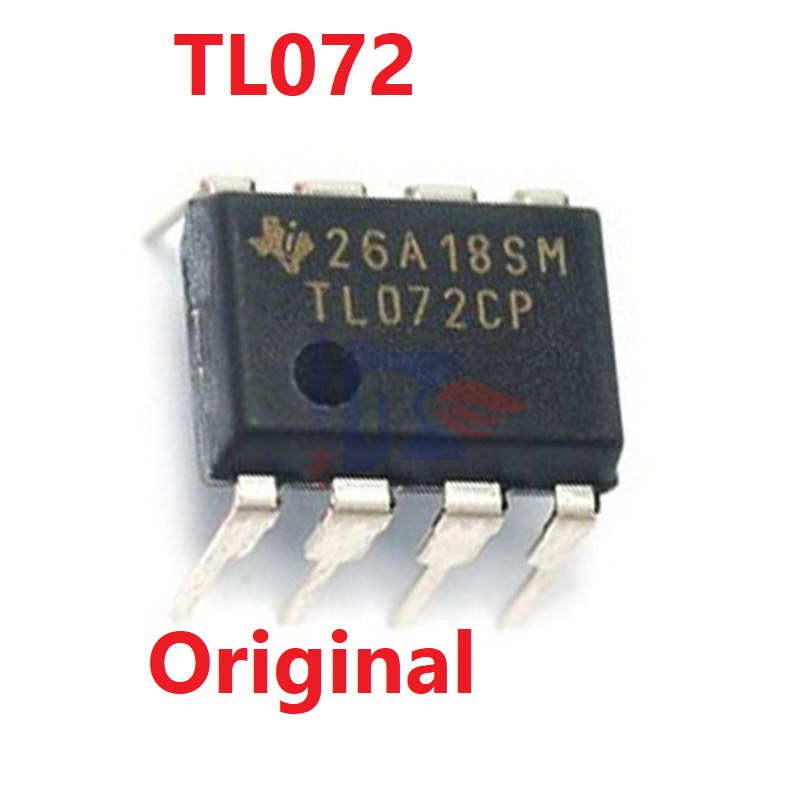

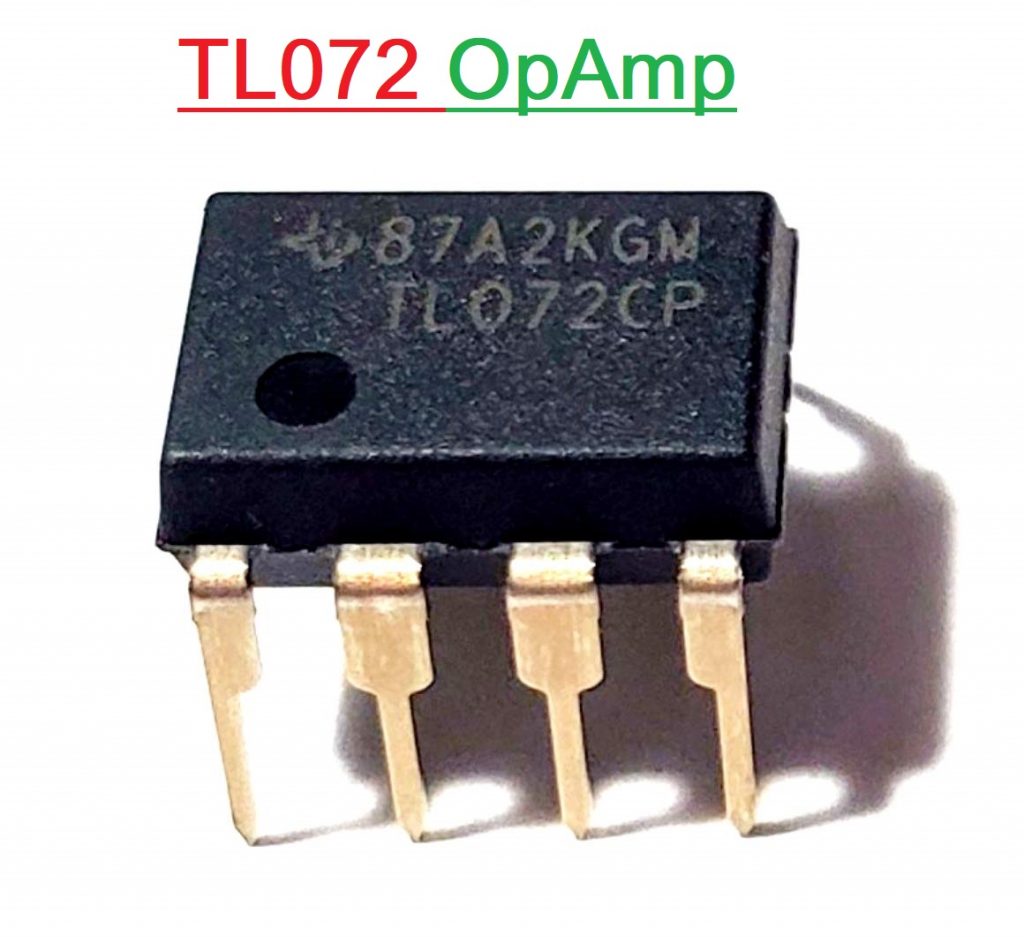

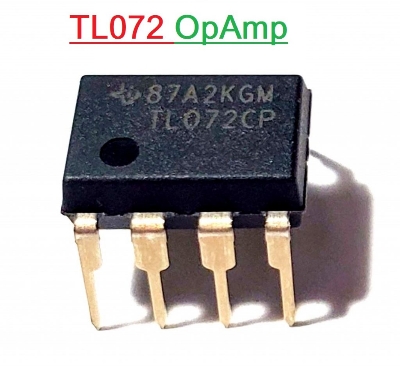

Description: TL072CP TL072 Dual Low Noise JFET Input Operational Amplifier A Class IC Op Amp Chip
A Class TL072 TL072CP TL072C Low Noise JFET Dual Input Operational Amplifier Op-Amp IC OPAMP Integrated Circuit DIP-8 8 Pin Dual In Line Package Chip Electrical Circuitry & Parts

The TL072 JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.

The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL072 series ideally suited for high-fidelity and audio pre-amplifier applications. Offset adjustment and external compensation options are available within the TL07x family.

Features
1. Low Power Consumption
2. Wide Common-Mode and Differential Voltage Ranges
3. Low Input Bias and Offset Currents
4. Output Short-Circuit Protection
5. Low Total Harmonic Distortion: 0.003% Typical
6. High-Input Impedance: JFET Input Stage
7. Internal Frequency Compensation
8. Latch-Up-Free Operation
9. High Slew Rate: 13 V/µs Typica

• 1. Low Power Consumption
• 2. Wide Common-Mode and Differential Voltage Ranges
• 3. Low Input Bias and Offset Currents
• 4. Output Short-Circuit Protection
• 5. Low Total Harmonic Distortion: 0.003% Typical
• 6. High-Input Impedance: JFET Input Stage
• 7. Internal Frequency Compensation
• 8. Latch-Up-Free Operation
• 9. High Slew Rate: 13 V/µs Typica
