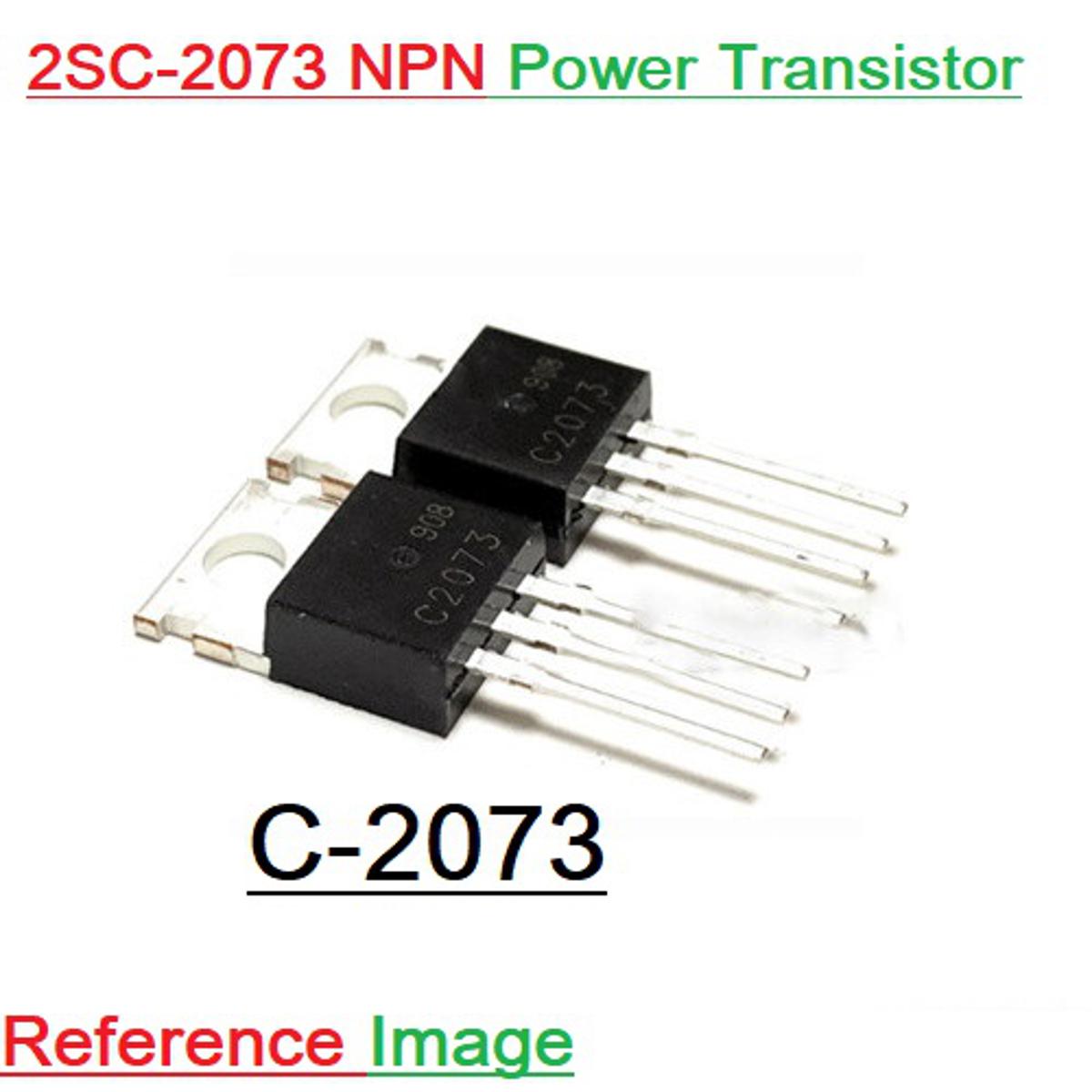

Picture of 2Pcs- C2073 2SC2073 2SC 2073 NPN Transistor 150V 1.5A 25W Silicon Plastic Bipolar Power Transistor TO-220 General Purpose Amplifier 3Pin Leads
Picture of 2Pcs- C2073 2SC2073 2SC 2073 NPN Transistor 150V 1.5A 25W Silicon Plastic Bipolar Power Transistor TO-220 General Purpose Amplifier 3Pin Leads

2Pcs- C2073 2SC2073 2SC 2073 NPN Transistor 150V 1.5A 25W Silicon Plastic Bipolar Power Transistor TO-220 General Purpose Amplifier 3Pin Leads

Category: Building Materials
SKU: UDBD05049
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 72
Tk 85
Tk 85
15% OFF
0 review(s)
  • Type Designator: 2SC2073
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 25
  • Maximum collector-base voltage Ucb, V: 150
  • Maximum collector-emitter voltage Uce, V: 150
  • Maximum emitter-base voltage Ueb, V: 5
  • Maximum collector current Ic max, A: 1.5
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 1
  • Collector capacitance (Cc), pF: 70
  • Forward current transfer ratio (hFE), min: 40

Call For Order : 09613-800800

Descriptions: 2SC-2073 NPN Transistor 25W 150V 1.5A TO-220.

  • Type Designator: 2SC2073
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 25
  • Maximum collector-base voltage |Ucb|, V: 150
  • Maximum collector-emitter voltage |Uce|, V: 150
  • Maximum emitter-base voltage |Ueb|, V: 5
  • Maximum collector current |Ic max|, A: 1.5
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 1
  • Collector capacitance (Cc), pF: 70
  • Forward current transfer ratio (hFE), min: 40






  • Type Designator: 2SC2073
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 25
  • Maximum collector-base voltage Ucb, V: 150
  • Maximum collector-emitter voltage Uce, V: 150
  • Maximum emitter-base voltage Ueb, V: 5
  • Maximum collector current Ic max, A: 1.5
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 1
  • Collector capacitance (Cc), pF: 70
  • Forward current transfer ratio (hFE), min: 40
