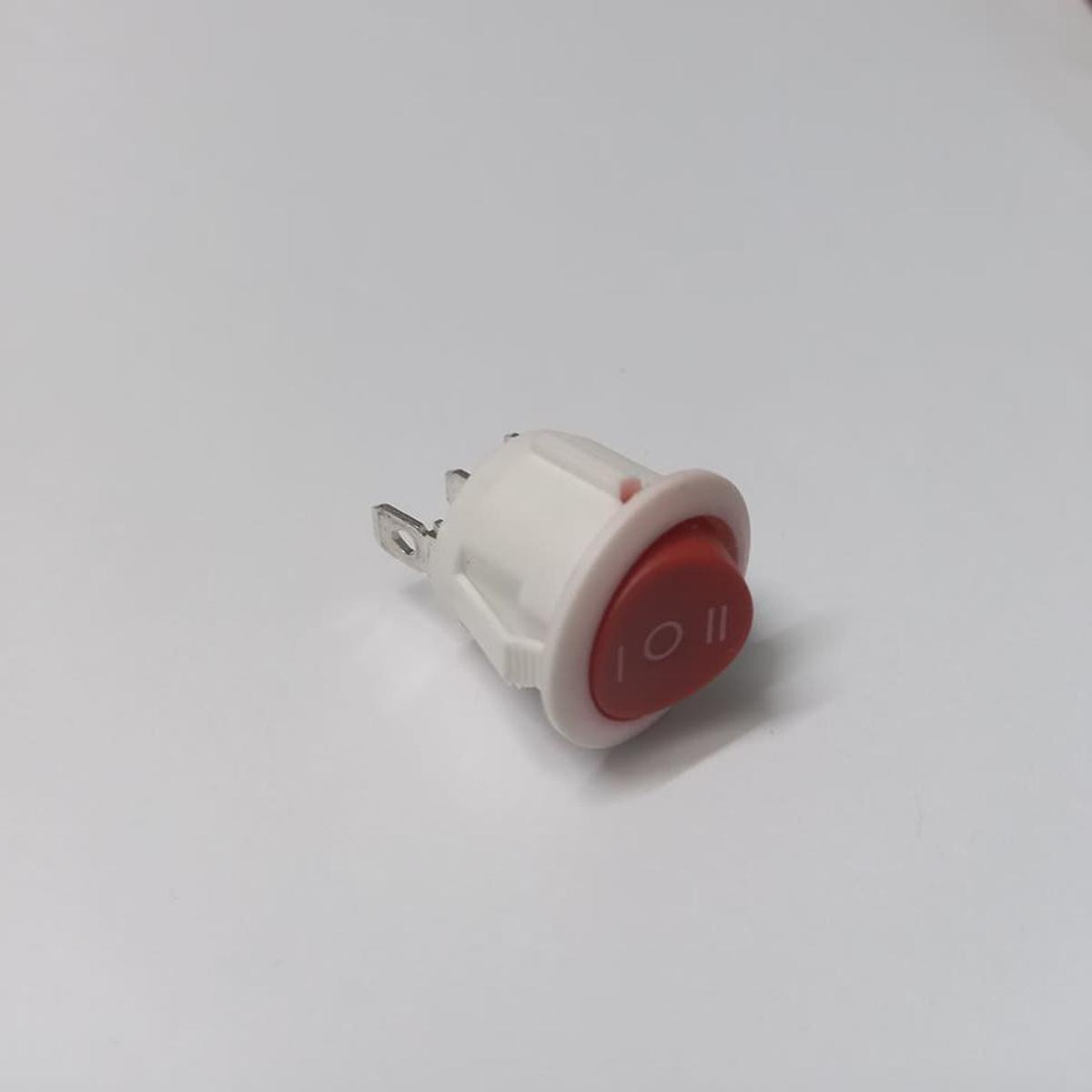

KCD1-5-103 Round Boat Rocker Switch 6A 250V AC 3 Pins 3 Position On Off On AC SPDT Car Boat Rocker Switch 20mm Diameter Snap 3 Way Rocker Switch Panel Mount For Auto Car Boat IPS UPS

KCD105-003/KC105-004 is On-Off-On 3 position round panel mount rocker switch, the rated load is 6A AC250V and 10A AC125V , 3 pin Quick Connect terminals , it is widely used in Telecom equipment, Car, Vessel, computer speakers, car batteries, motorcycles, TVs, coffee machine, sockets, massage machines, industrial machines.

Features:

• product name: Rocker Switch;
• Mechanical life: more than 80.000 cycles.
• Electrical life: more than 10, 000 cycles
• Poles : SPDT;
• Terminals : 3 Pins;
• Position:3Position(ON/OFF/ON)； ( This switch can use 12V )
• Rated Voltage and Current : AC 125V, 10A; AC 250V, 6A；
• Mounting Diameter: 20mm
• Total Size: 23 x 28mm

Specification:

• Dimensions: 23.0mm(L )x 19.8mm(W )x 17.8.mm(H)
• Contact form: ON-OFF-ON
• Illumination Type: None
• Number of pins: 3
• Mounting Style: Panel Mount
• Termination Style: Quick Connect Terminal
• Number of Positions: 3
• Rated Load: AC125V 10A AC250V 6A T85
• Contact Resistance: ≤ 50mΩ
• Insulation Resistance: ≥ 100MΩ
• Withstand Voltage: AC 500V 50Hz/1min
• Electric Life: 10000 Cycles Min.
• Environmental Temperature: -25℃—+70℃
• Relative Humidity: ≤ 95%

Application:

• 1. Audio / Video product: MP3, MP4, DVD, stereo system
• 2. Communication products: Mobiles, car telephone, telephone, building equipment, PDA etc.
• 3. Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
• 4. Security Products: Videophone, Monitor etc.
• 5. Computer products: Camera, recording pen etc.
• 6. Fitness equipment: Running machine, massage chair, timer etc.

Package Include:

• 1 x KCD1-5-103 Round Boat Rocker Switch 6A 250V AC 3 Pins 3 Position On Off On AC SPDT Car Boat Rocker Switch

• Dimensions: 23.0mm(L )x 19.8mm(W )x 17.8.mm(H)
• Contact form: ON-OFF-ON
• Illumination Type: None
• Number of pins: 3
• Mounting Style: Panel Mount
• Termination Style: Quick Connect Terminal
• Number of Positions: 3
• Rated Load:  AC125V 10A  AC250V 6A  T85
• Contact Resistance:  ≤ 50mΩ
• Insulation Resistance:  ≥ 100MΩ
• Withstand Voltage:  AC 500V 50Hz/1min
• Electric Life: 10000 Cycles Min.
• Relative Humidity:  ≤ 95%
