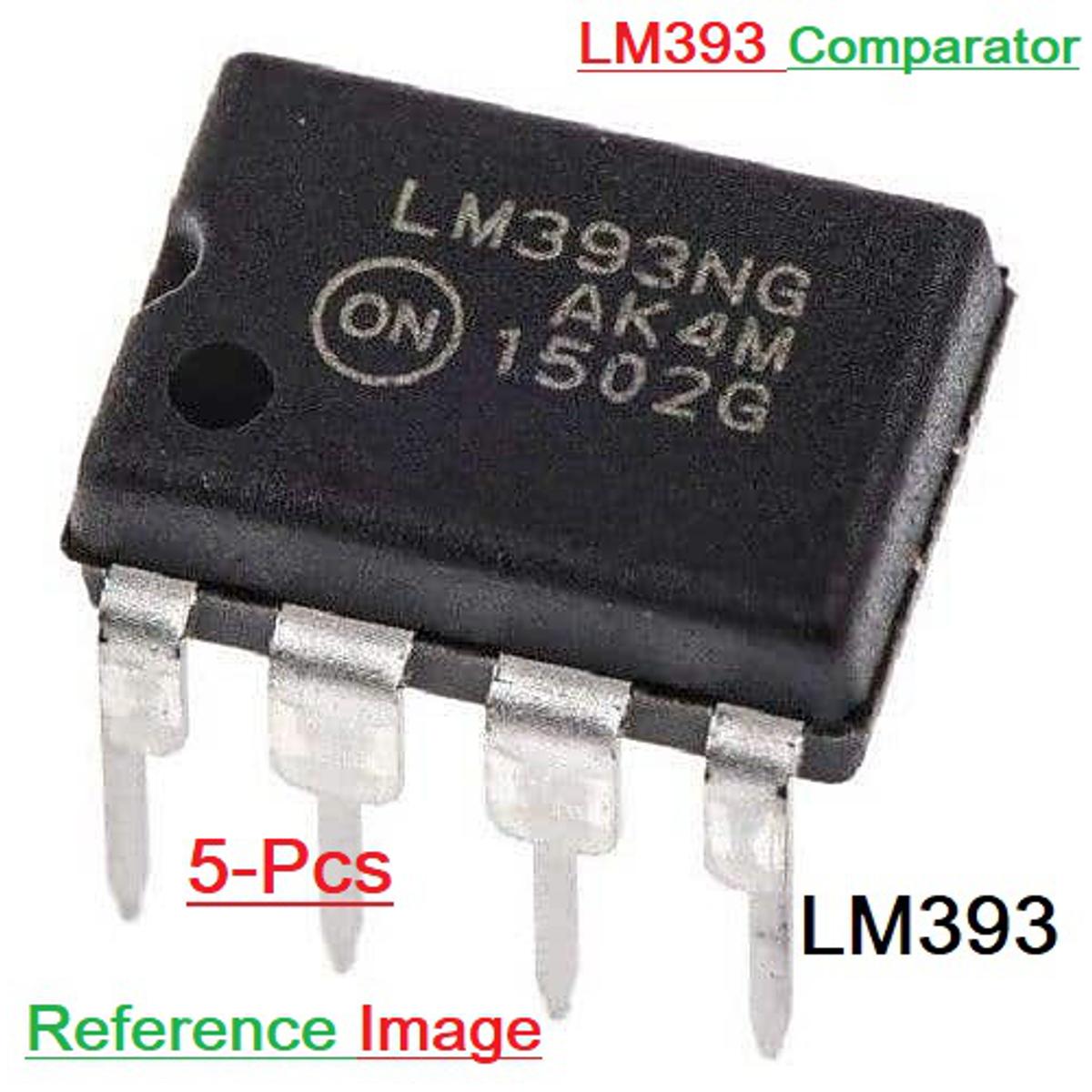

Description: LM393 Low Offset Voltage Dual Comparator IC LM 393 Dual Supply Operation IC DIP 8 Pin IC

LM393 LM 393 Low Offset Voltage Dual Comparator Supply Operation Operational Amplifier Op-Amp IC OPAMP Integrated Circuit DIP-8 8 Pin Dual In Line Package Chip Electrical Circuitry & Parts

The LM393 series are dual independent precision voltage comparators capable of single or split supply operation. These devices are designed to permit a common mode range− to−ground level with single supply operation. Input offset voltage specifications as low as 2.0 mV make this device an excellent selection for many applications in consumer, automotive, and industrial electronics.

LM393 Low Offset Voltage Dual Comparator LM393 is a dual precision voltage comparator IC capable of single or dual supply operation.LM393 IC is designed to permit a common mode range to ground level with single supply operation. Input offset voltage specifications as low as 2.0 mVolt make this device an excellent selection for many applications in consumer, automotive, and industrial electronics.LM393 IC is used in most of the digital comparator Modules that is used in GAS sensor modules, rain sensors etc.

The LM393 IC can be considered as the equivalent comparator version of the most popular LM358 Op-Amp. While any Op-Amp can be made to work as a voltage comparator, the LM393 proves itself to be advantages by providing an open collector output making it suitable to drive loads.

The output transistor can drive loads upto 50V and 50mA which is suitable for driving most of the TTL, MOS and RTL loads. The transistor can also make the Load to be isolated from the system ground. So if you are looking for a Voltage comparator to drive loads of these specifications then this IC might be the right choice for you.

Features:

• Wide Single−Supply Range: 2.0 Vdc to 36 Vdc
• Split−Supply Range: ±1.0 Vdc to ±18 Vdc
• Very Low Current Drain Independent of Supply Voltage: 0.4 mA
• Low Input Bias Current: 25 nA
• Low Input Offset Current: 5.0 nA
• Low Input Offset Voltage: 5.0 mV (max) LM293/393
• Input Common Mode Range to Ground Level
• Differential Input Voltage Range Equal to Power Supply Voltage
• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
• ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance
• NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
• Pb−Free Packages are Available

Features of LM393 Comparator IC:

• Very Low Current Drain Independent of Supply Voltage 0.4 mA
• Low Input Offset Voltage 5.0 mV (max) LM293/393
• Input Common Mode Range to Ground Level
• Differential Input Voltage Range Equal to Power Supply Voltage
• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
• These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

LM393 Equivalents

• LM358, TL082, LM311

Alternatives Comparator Op-Amp IC

• LM741, LM358, LM339, LM324

• Wide Single−Supply Range: 2.0 Vdc to 36 Vdc
• Split−Supply Range: ±1.0 Vdc to ±18 Vdc
• Very Low Current Drain Independent of Supply Voltage: 0.4 mA
• Low Input Bias Current: 25 nA
• Low Input Offset Current: 5.0 nA
• Low Input Offset Voltage: 5.0 mV (max) LM293/393
• Input Common Mode Range to Ground Level
• Differential Input Voltage Range Equal to Power Supply Voltage
• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
• ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance
• NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
• Pb−Free Packages are Available
