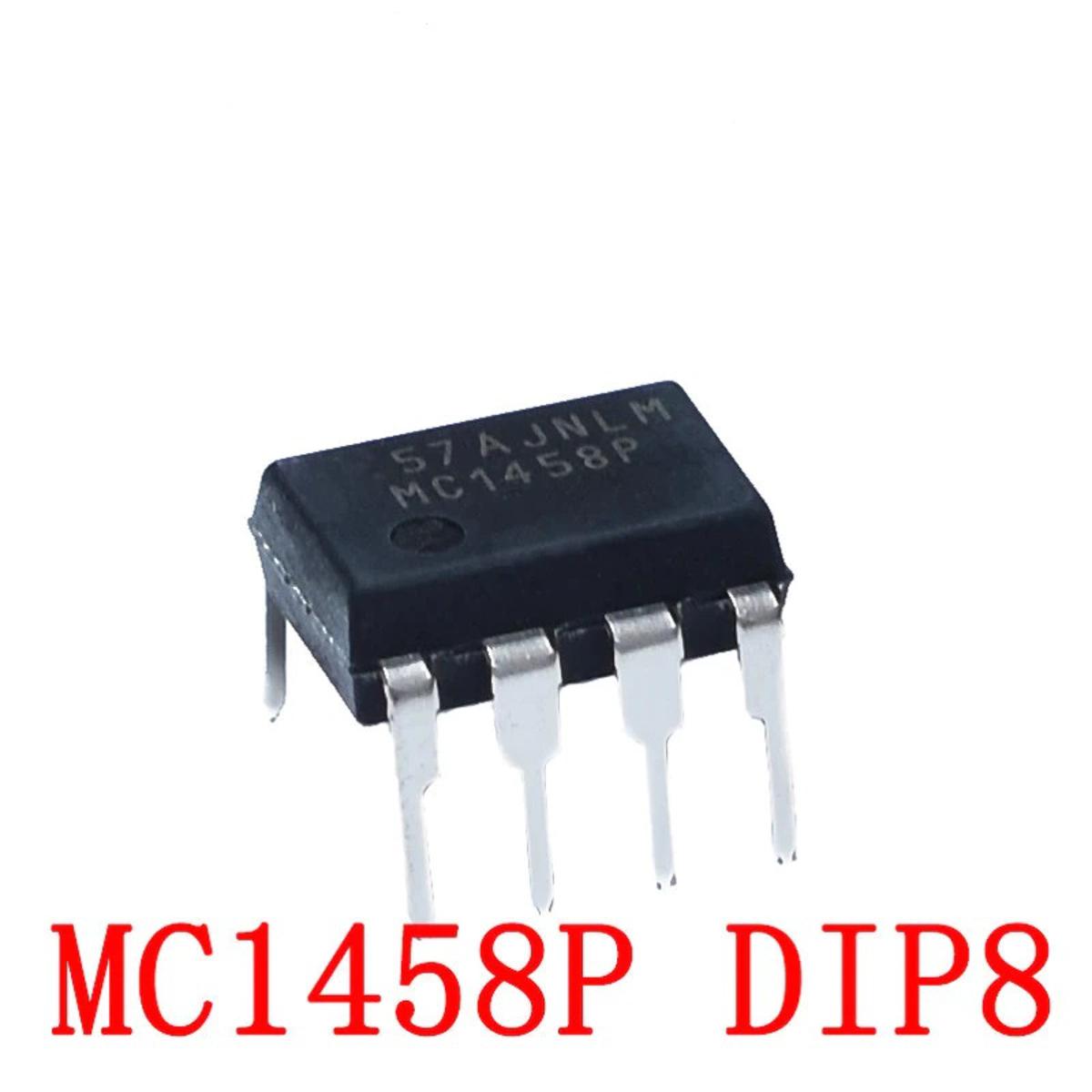

Description: MC1458 OPAMP

The MC1458 is a high-performance operational amplifier with high open-loop gain, internal compensation, high common-mode range and exceptional temperature stability. The MC1458 is short-circuit protected. The MC1458/SA145 /MC1558 consists of a pair of 741 operational amplifiers on a single chip.

Features:

• Internal frequency compensation
• Short-circuit protection
• Excellent temperature stability
• High input voltage range
• No latch-up
• 1558/1458 are 2 “op amps” in space of one 741 package
• Maximum Supply Voltage:±22V
• Maximum Input Voltage:±15V
• Power Dissipation:660mW(J & H Suffix),300mW(D Suffix),500mW(N Suffix)
• Storage Temperature Range:-65 to 150°C

•  Internal frequency compensation
•  Short-circuit protection
•  Excellent temperature stability
•  High input voltage range
•  No latch-up
• 1558/1458 are 2 “op amps” in space of one 741 package
• Maximum Supply Voltage:±22V
• Maximum Input Voltage:±15V
• Power Dissipation:660mW(J & H Suffix),300mW(D Suffix),500mW(N Suffix)
• Storage Temperature Range:-65 to 150°C
