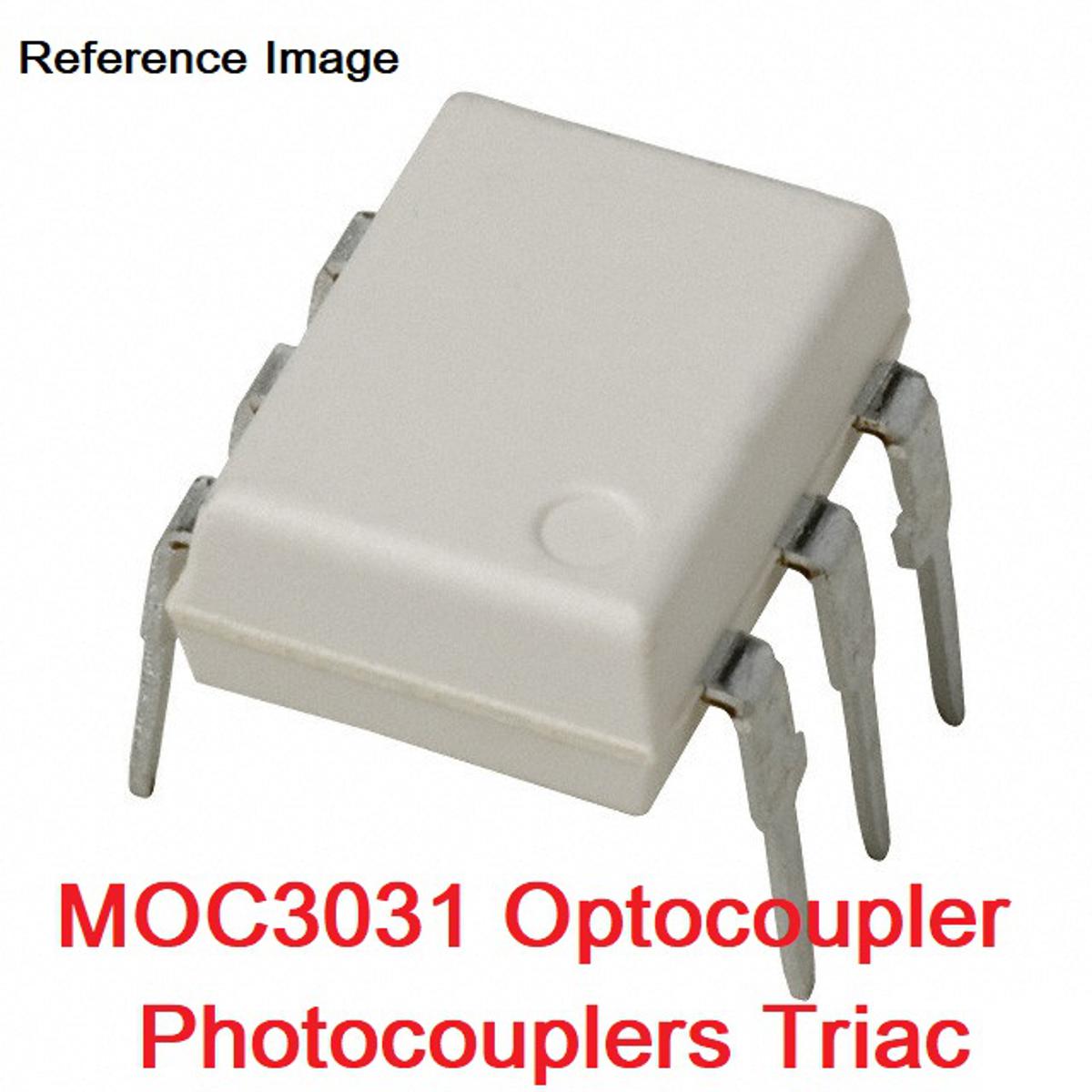

Picture of 2Pcs- MOC3031 MOC-3031 MOC 3031 Optocoupler TRIAC Silicon Driver IC Chip Photocouplers IC DIP 6 Pin Leads Optocoupler Optical Isolator IC
Picture of 2Pcs- MOC3031 MOC-3031 MOC 3031 Optocoupler TRIAC Silicon Driver IC Chip Photocouplers IC DIP 6 Pin Leads Optocoupler Optical Isolator IC

2Pcs- MOC3031 MOC-3031 MOC 3031 Optocoupler TRIAC Silicon Driver IC Chip Photocouplers IC DIP 6 Pin Leads Optocoupler Optical Isolator IC

Category: Building Materials
SKU: UDBD05129
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 110
Tk 130
Tk 130
15% OFF
0 review(s)
  • Input-to-output peak voltage, 5 s maximum duration, 60 Hz : 7.5 kV
  • Input diode reverse voltage : 3 V
  • Input diode forward current, continuous: 50 mA
  • Output repetitive peak off-state voltage: 400 V
  • Output on-state current, total rms value (50-60 Hz, full sine wave): TA = 25°C : 100 mA
  • TA = 70°C : 50 mA
  • Output driver nonrepetitive peak on-state current (tw = 10 ms, duty cycle = 10%): 1.2 A
  • Continuous power dissipation at (or below) 25°C free-air temperature:
  • Infrared-emitting diode : 100 mW
  • Phototriac : 300 mW
  • Total device : 330 mW
  • Operating junction temperature range, : –40°C to 100°C
  • Storage temperature range, Tstg : –40°C to 150°C
  • Lead temperature 1,6 (1/16 inch) from case for 10 seconds:260°C

Call For Order : 09613-800800

Description: MOC3031 Optocoupler

The MOC3031 device consists of gallium arsenide infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems toequipment powered from 115 Vac lines, such as teletypewriters, CRTs, printers, motors, solenoids and consumer appliances, etc.

Specification:

  • Input-to-output peak voltage, 5 s maximum duration, 60 Hz : 7.5 kV
  • Input diode reverse voltage : 3 V
  • Input diode forward current, continuous: 50 mA
  • Output repetitive peak off-state voltage: 400 V
  • Output on-state current, total rms value (50-60 Hz, full sine wave): TA = 25°C : 100 mA
  • TA = 70°C : 50 mA
  • Output driver nonrepetitive peak on-state current (tw = 10 ms, duty cycle = 10%): 1.2 A
  • Continuous power dissipation at (or below) 25°C free-air temperature:
  • Infrared-emitting diode : 100 mW
  • Phototriac : 300 mW
  • Total device : 330 mW
  • Operating junction temperature range, : –40°C to 100°C
  • Storage temperature range, Tstg : –40°C to 150°C
  • Lead temperature 1,6 (1/16 inch) from case for 10 seconds:260°C

Application:

  • Industrial controls
  • Solenoid/valve controls
  • Traffic lights
  • Static AC power switch
  • Vending machines
  • Incandescent lamp dimmers
  • Solid state relay
  • Motor control






  • Input-to-output peak voltage, 5 s maximum duration, 60 Hz : 7.5 kV
  • Input diode reverse voltage : 3 V
  • Input diode forward current, continuous: 50 mA
  • Output repetitive peak off-state voltage: 400 V
  • Output on-state current, total rms value (50-60 Hz, full sine wave): TA = 25°C : 100 mA
  • TA = 70°C : 50 mA
  • Output driver nonrepetitive peak on-state current (tw = 10 ms, duty cycle = 10%): 1.2 A
  • Continuous power dissipation at (or below) 25°C free-air temperature:
  • Infrared-emitting diode : 100 mW
  • Phototriac : 300 mW
  • Total device : 330 mW
  • Operating junction temperature range, : –40°C to 100°C
  • Storage temperature range, Tstg : –40°C to 150°C
  • Lead temperature 1,6 (1/16 inch) from case for 10 seconds:260°C
