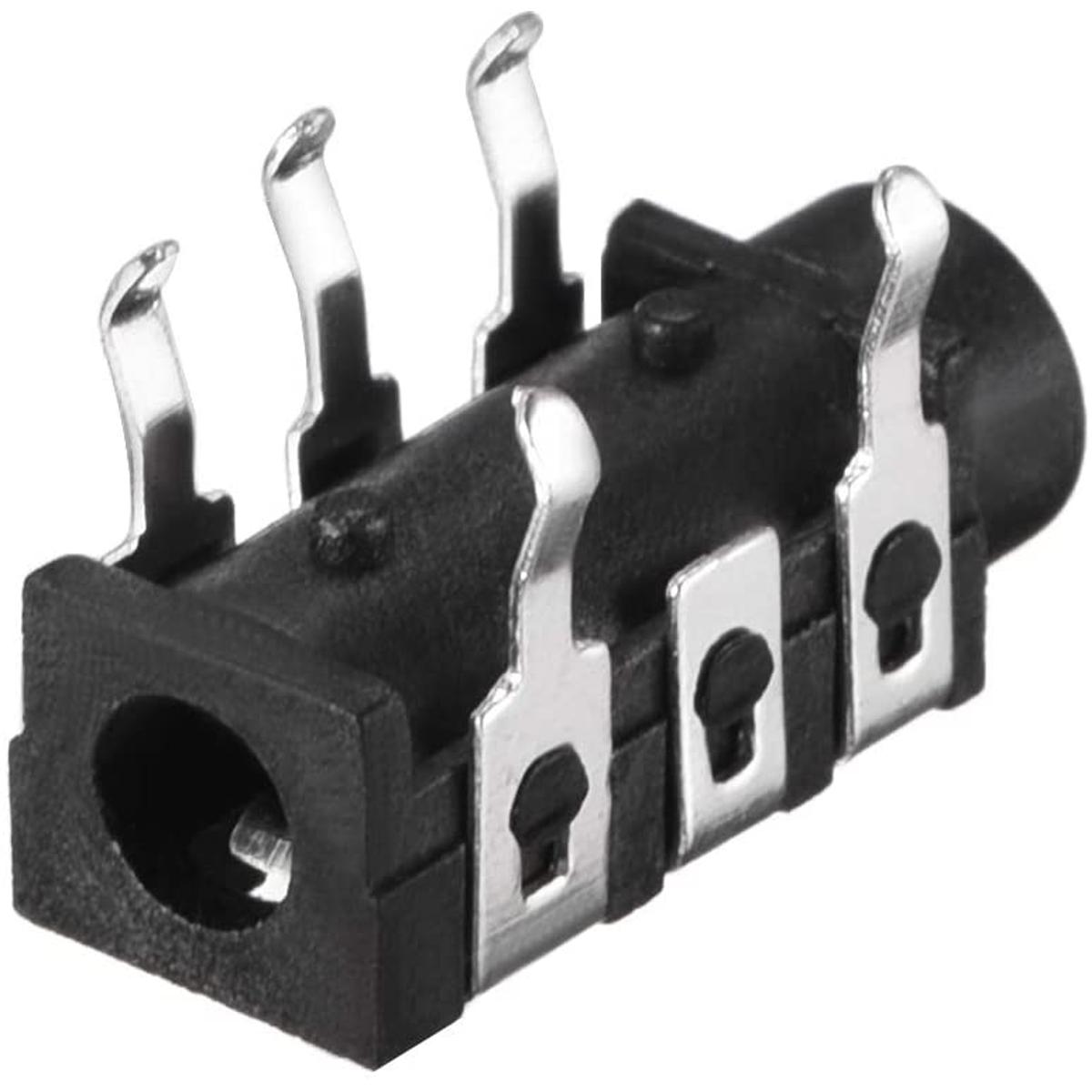

Picture of 2Pcs- PJ-313 5Pin Leads PCB Mount 3.5mm FEMALE Socket 5 Pin DIP PJ-313 Female Audio Headphone Socket For Audio Sound Amplifier Speaker
Picture of 2Pcs- PJ-313 5Pin Leads PCB Mount 3.5mm FEMALE Socket 5 Pin DIP PJ-313 Female Audio Headphone Socket For Audio Sound Amplifier Speaker

2Pcs- PJ-313 5Pin Leads PCB Mount 3.5mm FEMALE Socket 5 Pin DIP PJ-313 Female Audio Headphone Socket For Audio Sound Amplifier Speaker

Category: Building Materials
SKU: UDBD04392
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 40
Tk 47
Tk 47
15% OFF
  • Gender :Female
  • Size:3.5 mm
  • Mounting Type: PCB Mount
  • Body Orientation: Straight
  • Termination Method: Solder
  • Housing Material: Nylon
  • Color: Black
  • Contact Material: Nickel Silver Alloy
  • Pin Quantity: 5
  • Voltage: 30V
  • Current: 0.5A
  • Power: 1W
  • Contact Resistance: ≤0.03
  • Insulation Resistance: ≥100M
  • Electrically Life:≥ 5,000 cycles
  • Withstand Voltage:AC500V(50HZ)/min
  • Actuating Force 3 ~ 20N
  • Dimension: 14 x 6.1 x 8.2mm

Call For Order : 09613-800800

Description: PCB Mount 3.5mm Female Socket 5 Pin DIP PJ-313 Female Audio Headphone Socket For Audio Sound Amplifier Speaker

Brought to you by RS Pro, A comprehensive selection of 3.5 mm jack sockets from Cliff Electronics. These PCB mount audio jack connectors are suitable for many applications, from audio and computing to military and industrial uses. The jack sockets all feature nickel plated brass contacts and a robust plastic body, for a reliable and durable connector solution. All models are highly reliable and excellent quality.



Features:

  • Made of plastic and metal material, in silver tone and black color.
  • This 5 pins 3.5mm PCB mounting socket will be an ideal item to replace the broken 3.5mm PCB socket.
  • 5 pins, 3.5mm jack audio connector.
  • Soldering type, no need for washers or nuts anyway.
  • PCB mount for microphone, earphone, headphone, radio, audio, video.



Specification:

  • Gender :Female
  • Size:3.5 mm
  • Mounting Type: PCB Mount
  • Body Orientation: Straight
  • Termination Method: Solder
  • Housing Material: Nylon
  • Color: Black
  • Contact Material: Nickel Silver Alloy
  • Temperature -30~70℃
  • Pin Quantity: 5
  • Voltage: 30V
  • Current: 0.5A
  • Power: 1W
  • Contact Resistance: ≤0.03
  • Insulation Resistance: ≥100M
  • Electrically Life:≥ 5,000 cycles
  • Withstand Voltage:AC500V(50HZ)/min
  • Actuating Force 3 ~ 20N
  • Dimension: 14 x 6.1 x 8.2mm



Application:

  • Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, etc.
  • Can be used in Media Player, MP3/MP4 player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, Smart Phone, etc.










  • Gender :Female
  • Size:3.5 mm
  • Mounting Type: PCB Mount
  • Body Orientation: Straight
  • Termination Method: Solder
  • Housing Material: Nylon
  • Color: Black
  • Contact Material: Nickel Silver Alloy
  • Pin Quantity: 5
  • Voltage: 30V
  • Current: 0.5A
  • Power: 1W
  • Contact Resistance: ≤0.03
  • Insulation Resistance: ≥100M
  • Electrically Life:≥ 5,000 cycles
  • Withstand Voltage:AC500V(50HZ)/min
  • Actuating Force 3 ~ 20N
  • Dimension: 14 x 6.1 x 8.2mm
