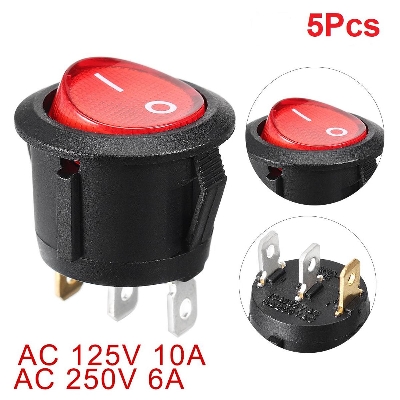

Description: Round Rocker Switch 6A/250V

SPST Red Neon Light On/Off Round Rocker Switch AC 6A/250V 10A/125V.

Features:

• Single Pole Single Throw (SPST) Contact Type,
• 3 Pin Terminals, On Off Snap In Rocker Switch.
• Built in red neon light (light lits when switch is in the on position).
• The light voltage is AC 220V,
• color: black, White
• Total Size(Each One) : 23 x 29mm / 0.9″ x 1.14″(D*H)
• Fixing Hole Size : 19.6 x 23mm / 0.77″ x 0.9″(D * H)

Specification:

• Product Name: Rocker Switch
• Pole and Throw: SPST(On -OFF- On)
• Terminals Number :3
• Rated Voltage:AC 6A/250V 10A/125V(for resistive load only)
• Overall Size:23 x 29mm / 0.9 x 1.14in(D*H)
• Mounting Size:19.6 x 23mm / 0.77 x 0.9in(D * H)
• Color:Black, Red
• Material:Plastic, Metal
• Package Content:5Pcs x Rocker Switches
• AC 250V Current rerating for different loads Inductive Load: 2.1A
• Lamp Load: 1.08A
• Motor Load: 1.2A
• Capacitive Load: 1.08A
• AC125V Current rerating for different loads Inductive Load: 3.5A
• Lamp Load: 1.8A
• Motor Load: 2 A
• Capacitive Load: 1.8A

Application for it many car, motorcycle, boat, some machine,water dispenser, etc.

Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.please pay attention to the voltage before ordering to make sure the rocker switch can work successfully in your area.

• Product Name: Rocker Switch
• Pole and Throw: SPST(On -OFF- On)
• Terminals Number :3
• Rated Voltage:AC 6A/250V 10A/125V(for resistive load only)
• Overall Size: 23 x 29mm / 0.9 x 1.14in(D*H)
•  Mounting Size: 19.6 x 23mm / 0.77 x 0.9in(D * H)
• Color:Black, White
• Material: Plastic, Metal
