Description: TDA2003

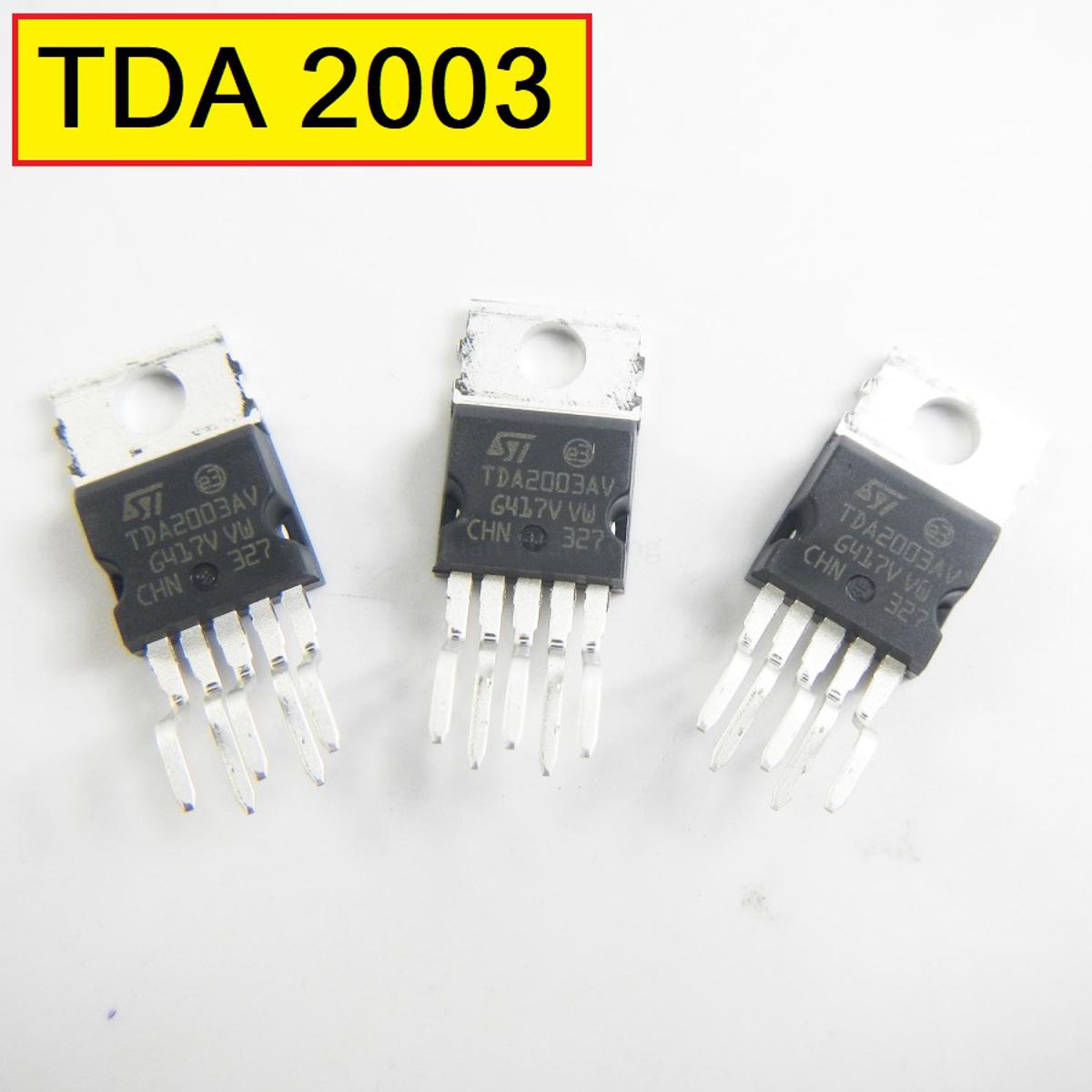

TheTDA2003is anAudio Amplifier ICfrom ST Microelectronics with a maximum output power of 10W commonly used in stereo amplification in car Radio. The IC can output a maximum current of 3.5A and features very low harmonic and crossover distortion.

Pin Description:

Features:

• Low-frequency class AB amplifier most suited for audio amplification
• Can provide up to 20 Watts as output power
• Operating Voltage: 8V to 18V
• Maximum output power 12V (at 1.6Ω RL)
• Voltage Gain: 80dB
• Supply Voltage rejection: 36dB
• Short circuit and thermal protection is available
• Breadboard friendly
• Available in 5-pin TO220 package

Applications:

• Used for Audio signal Amplification
• Suitable for high power amplification
• Capable of operating on dual/split power supply
• Can be used to cascade audio speakers

Documents:

• TDA2003

Note:

• Complete Technical Details can be found at the datasheet give at the end of this page.

• Low-frequency class AB amplifier most suited for audio amplification
• Can provide up to 20 Watts as output power
• Operating Voltage: 8V to 18V
• Voltage Gain: 80dB
• Supply Voltage rejection: 36dB
• Short circuit and thermal protection is available
• Breadboard friendly
• Available in 5-pin TO220 package
