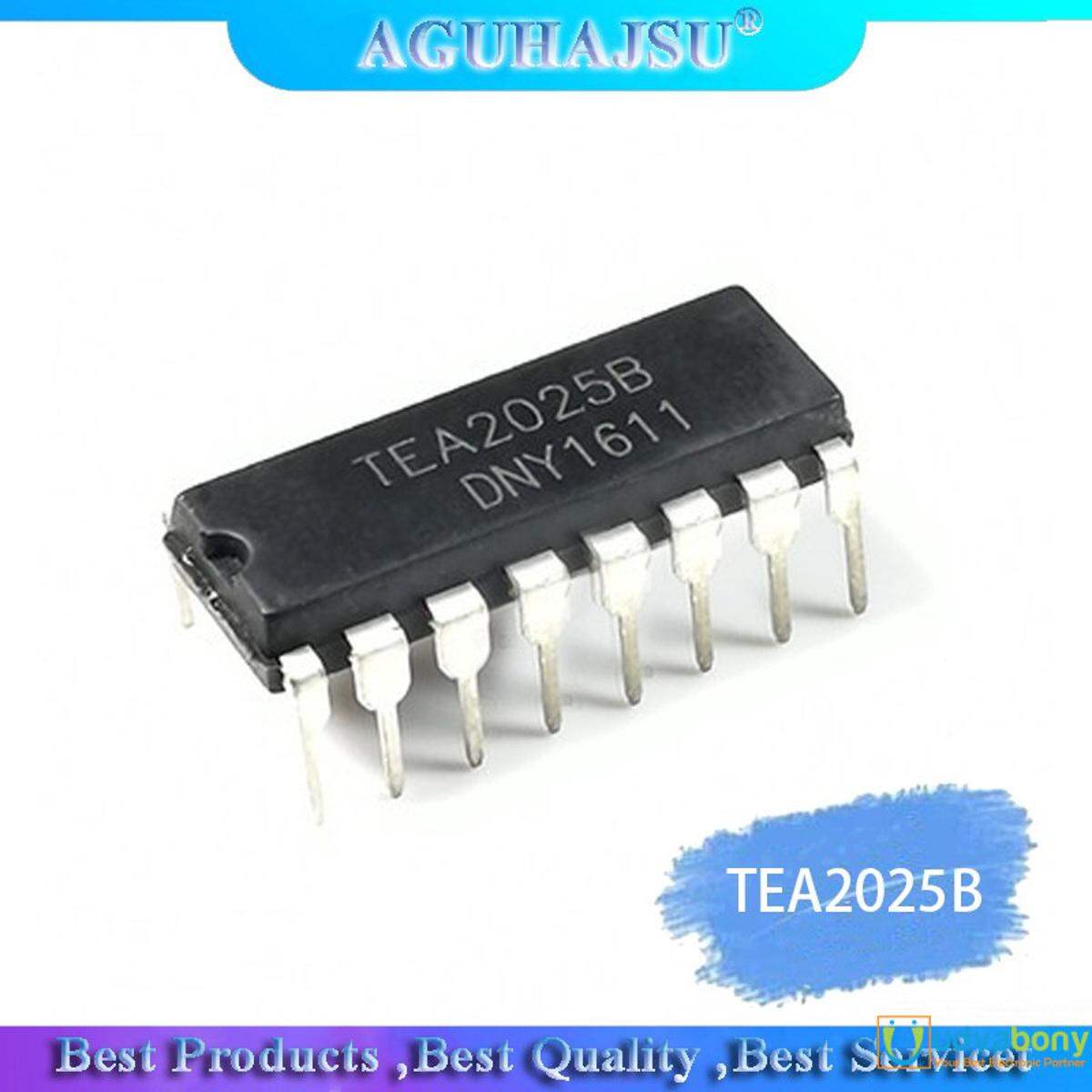

2Pcs TEA2025 TEA2025B TEA-2025 2025 DIP-16 Audio Amplifiers IC Amplifier Board IC Dual In Line Package Chip 16 Pin Leads

Brand
Category: Computers, Components & Accessories
SKU: ELPB1014538
Manufacturer: No Brand
Seller: Electronics Parts BD
Tk 166
0 review(s)

Call For Order : 09613-800800

Description: TEA2025 Stereo Audio Amplifier

TEA2025 TEA2025B TEA-2025 2025 DIP-16 Audio Amplifiers IC Amplifier Board IC Dual In Line Package Chip 16 Pin Leads

TEA2025 Pin Configuration

1BRIDGEBridge Pin
2OUT 2Output Pin 2
3BOOT 2Boot Pin 2
4GNDGround Pin
5GNDGround Pin
6FEEDBACKFeedback Pin
71N 2(+)Positive Input Pin 2
8SVRCommon Voltage Rejection Ratio
9GND SUBGround
10IN 1+Positive Input Pin 1
11FEEDBACKFeedback Pin
12GNDGround Pin
13GNDGround Pin
14BOOT 1Boot Pin 1
15OUT 1Output Pin 1
16+VsPositive Supply Voltage

TEA2025 Key Features

  • Dual Or Bridge Connection Modes
  • Few External Components
  • Supply Voltage Down To 3V
  • High Channel Separation
  • Very Low Switch ON/OFF Noise

Application

  • Dual or bridge power audio amplifier
  • Portable radio-cassette players.
