2Pcs- TEA2025 TEA2025B TEA-2025 2025 DIP-16 Audio Amplifiers IC Amplifier Board IC Dual In Line Package Chip 16 Pin Leads

Name: 2Pcs- TEA2025 TEA2025B TEA-2025 2025 DIP-16 Audio Amplifiers IC Amplifier Board IC Dual In Line Package Chip 16 Pin Leads
SKU: UDBD04745
Price: 130 BDT
Availability: InStock

Category: Building Materials

SKU: UDBD04745

Seller: Udvabony BD

Visa/Mastercard 10% Discount(T&C)

Nagad 10% instant Cashback(T&C)

Tk 110

Tk 130

15% OFF

0 review(s)

Dual or Bridge Connection Modes
Up to 2.3W Output Power
High Channel Separation
Few External Components Required
Thermal Protection
Wide Supply Voltage: 3V to 15V

Call For Order : 09613-800800

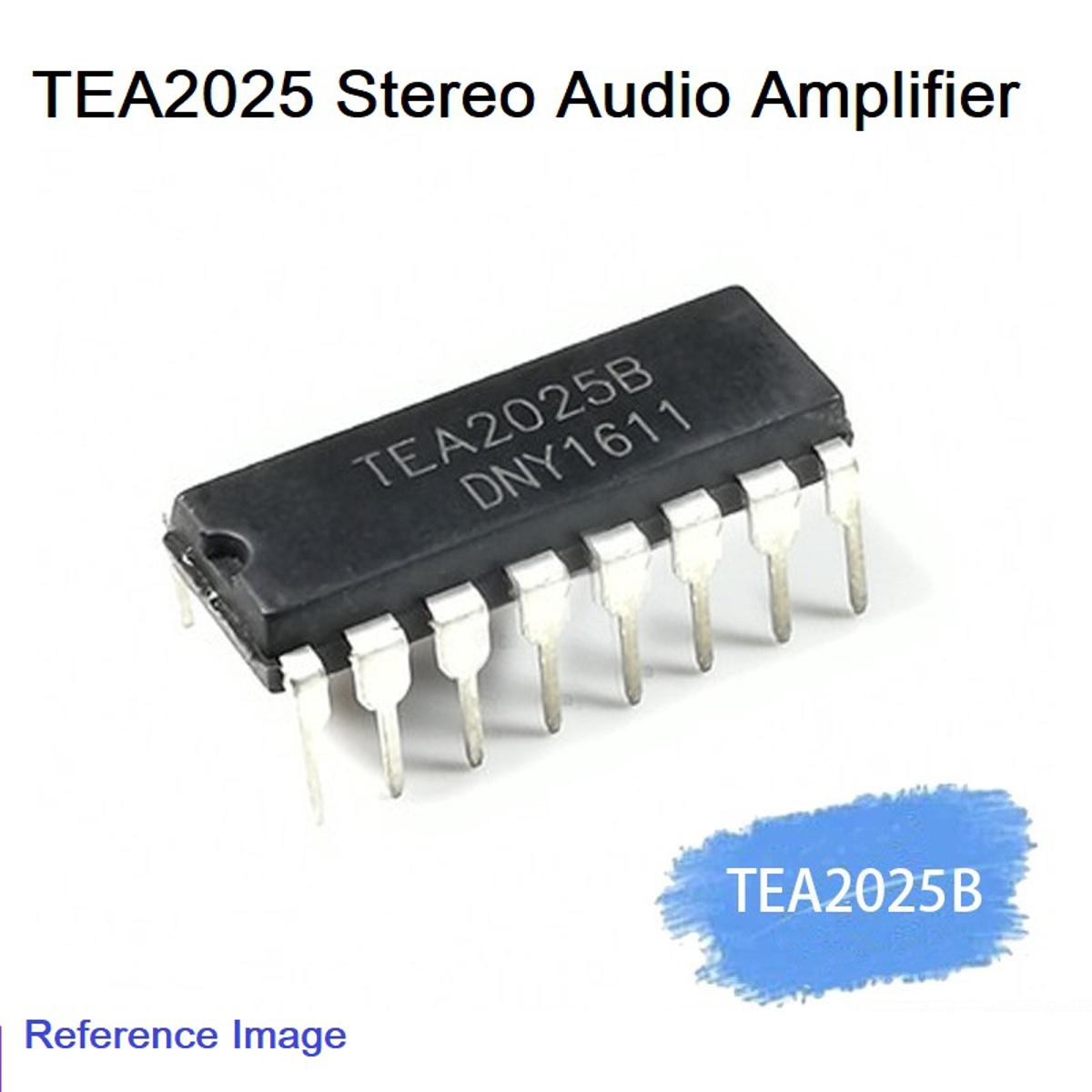

Description: TEA2025 Stereo Audio Amplifier

TEA2025B TEA2025 TEA-2025 2025 DIP-16 Audio Amplifiers IC Amplifier Board IC DIP-16 Dual In Line Package Chip Electrical Circuitry & Parts

TEA2025 Pin Configuration


1	BRIDGE	Bridge Pin
2	OUT 2	Output Pin 2
3	BOOT 2	Boot Pin 2
4	GND	Ground Pin
5	GND	Ground Pin
6	FEEDBACK	Feedback Pin
7	1N 2(+)	Positive Input Pin 2
8	SVR	Common Voltage Rejection Ratio
9	GND SUB	Ground
10	IN 1+	Positive Input Pin 1
11	FEEDBACK	Feedback Pin
12	GND	Ground Pin
13	GND	Ground Pin
14	BOOT 1	Boot Pin 1
15	OUT 1	Output Pin 1
16	+Vs	Positive Supply Voltage

TEA2025 Key Features

Dual Or Bridge Connection Modes
Few External Components
Supply Voltage Down To 3V
High Channel Separation
Very Low Switch ON/OFF Noise

Application

Dual or bridge power audio amplifier
Portable radio-cassette players.

Dual or Bridge Connection Modes
Up to 2.3W Output Power
High Channel Separation
Few External Components Required
Thermal Protection
Wide Supply Voltage: 3V to 15V
