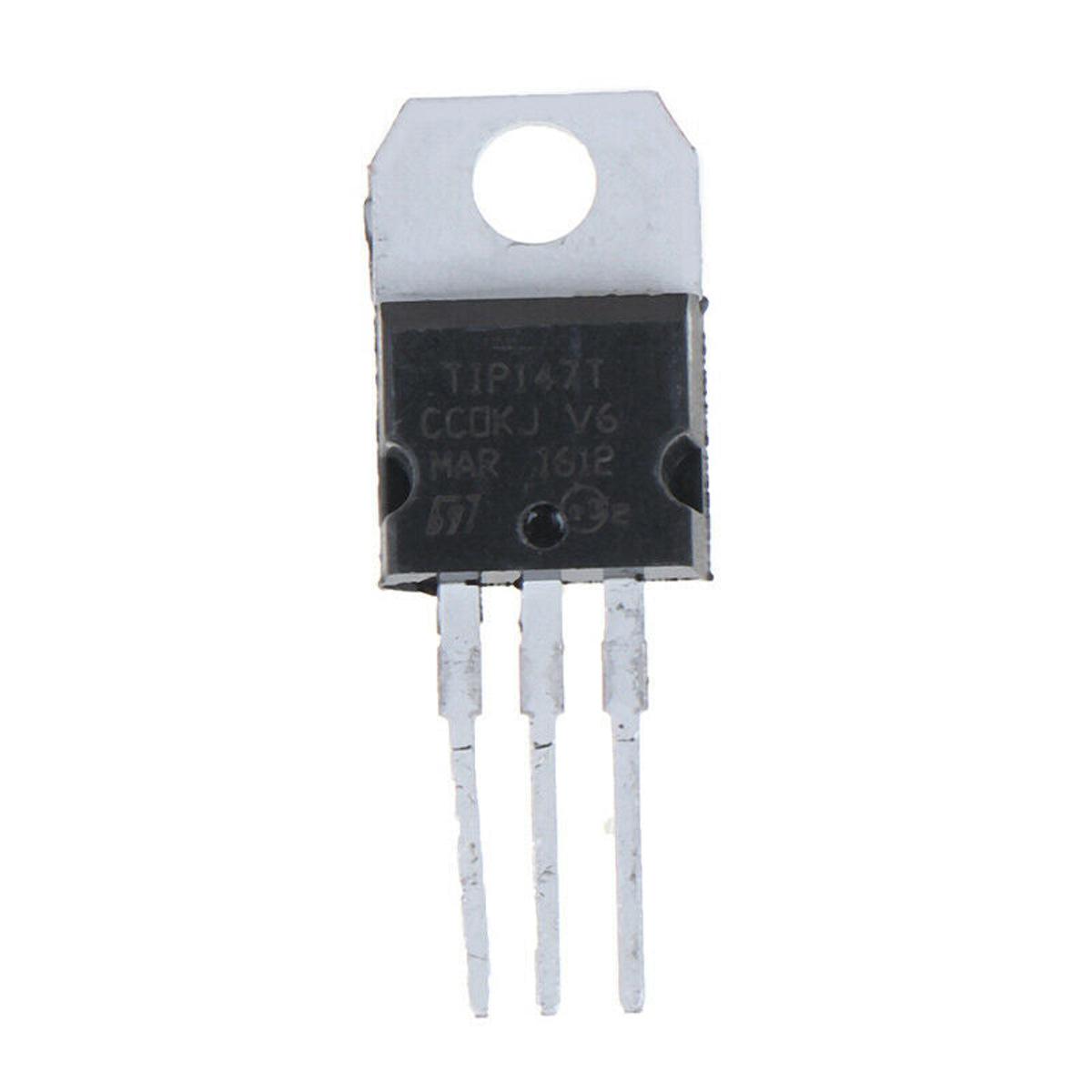

Description: TIP147 PNP Power Darlington Transistor

TIP147T TIP147 TIP 147 PNP Transistor 100V 10A 125W Power Darlington Triode Transistor Silicon High Power Amplifier TO-220 Transistor

Features:

• Collector-Emitter Volt (Vceo): 100V
• Collector-Base Volt (Vcbo): 100V
• Collector Current (Ic): 10.0A
• hfe: 1,000 @ 5000mA
• Power Dissipation (Ptot): 125W
• Type: PNP

TIP147 Equivalent/Alternate:

• TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP110, TIP142

Application

• Linear And Switching Industrial Equipment
• General Purpose Amplifier
• Low Frequency Switching

• Collector-Emitter Volt (Vceo): 100V

• Collector-Base Volt (Vcbo): 100V

• Collector Current (Ic): 10.0A

• hfe: 1,000 @ 5000mA

• Power Dissipation (Ptot): 125W

• Type: PNP
