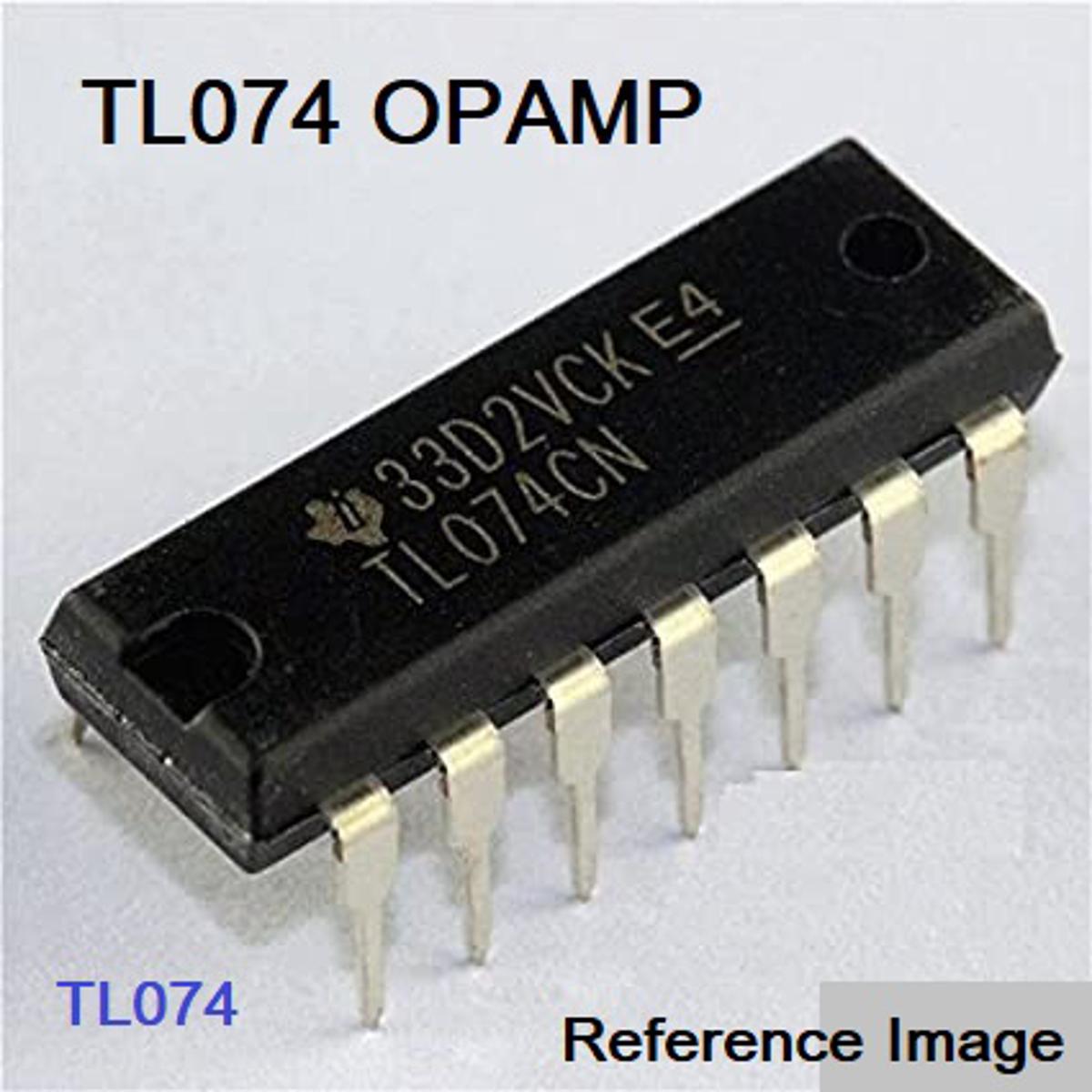

The TL074, TL074A and TL074B are high speed J–FET input quad operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

Features:

• JFET Input Op-Amp Quad Package
• Typical Operating Voltage: +15V to -15V
• Maximum operating Voltage: 36V
• Input Bias Current: 65pA
• Common mode Rejection Ratio CMRR: 100dB
• Low Level Input Voltage: 0.8V (max)
• Propagation Delay (Pd) / Transition time: 29 ns (max)
• Low Input Bias and Offset Current
• Output Short circuit protection
• Available in 14-pin PDIP, SO-14, TSSOP packages with variations like TL74A, TL74AB, TL74AC and TL74L.

Where to use TL074 IC

TheTL074 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.

The main distinguishingfeature of the TL074 Op-Ampis that they incorporate high-voltageJFETand bipolar transistors which helps the transistor to have very high input impedance and low bias current. Also this Op-Amp has low noise and harmonic distortion making it an ideal choice for audio pre-amplifiers. So if you are looking for an Op-Amp IC with Quad package and JFET driven then this IC might be the right choice for you

TL074 Equivalent

LM324

Alternatives Op-Amps

LM741A, LM741C, LM709C, LM201, MC1439, and LM748

How to use TL074 Op-Amp

TL074 is very similar to the LM324 Op-Amp, they both have four Op-Amps inside them and have the exact same pinouts. However they differ a bit in their characteristics since the TL074 has a JFET inside it. If you are curious to learn about few application circuits of this IC then you can read throughhow LM324 is usedsince both the IC shares the same applications.

Applications

• Circuit requiring high input impedance
• Buffer application
• Filter circuits, Voltage followers
• Integrator, Differentiator, Summer, adder, Voltage follower, etc.,
• DC gain blocks
• Comparators (Loop control & regulation)

• JFET Input Op-Amp Quad Package
• Typical Operating Voltage: +15V to -15V
• Maximum operating Voltage: 36V
• Input Bias Current: 65pA
• Common mode Rejection Ratio CMRR: 100dB
• Low Level Input Voltage: 0.8V (max)
• Propagation Delay (Pd) / Transition time: 29 ns (max)
• Low Input Bias and Offset Current
• Output Short circuit protection
• Available in 14-pin PDIP, SO-14, TSSOP packages with variations like TL74A, TL74AB, TL74AC and TL74L.
