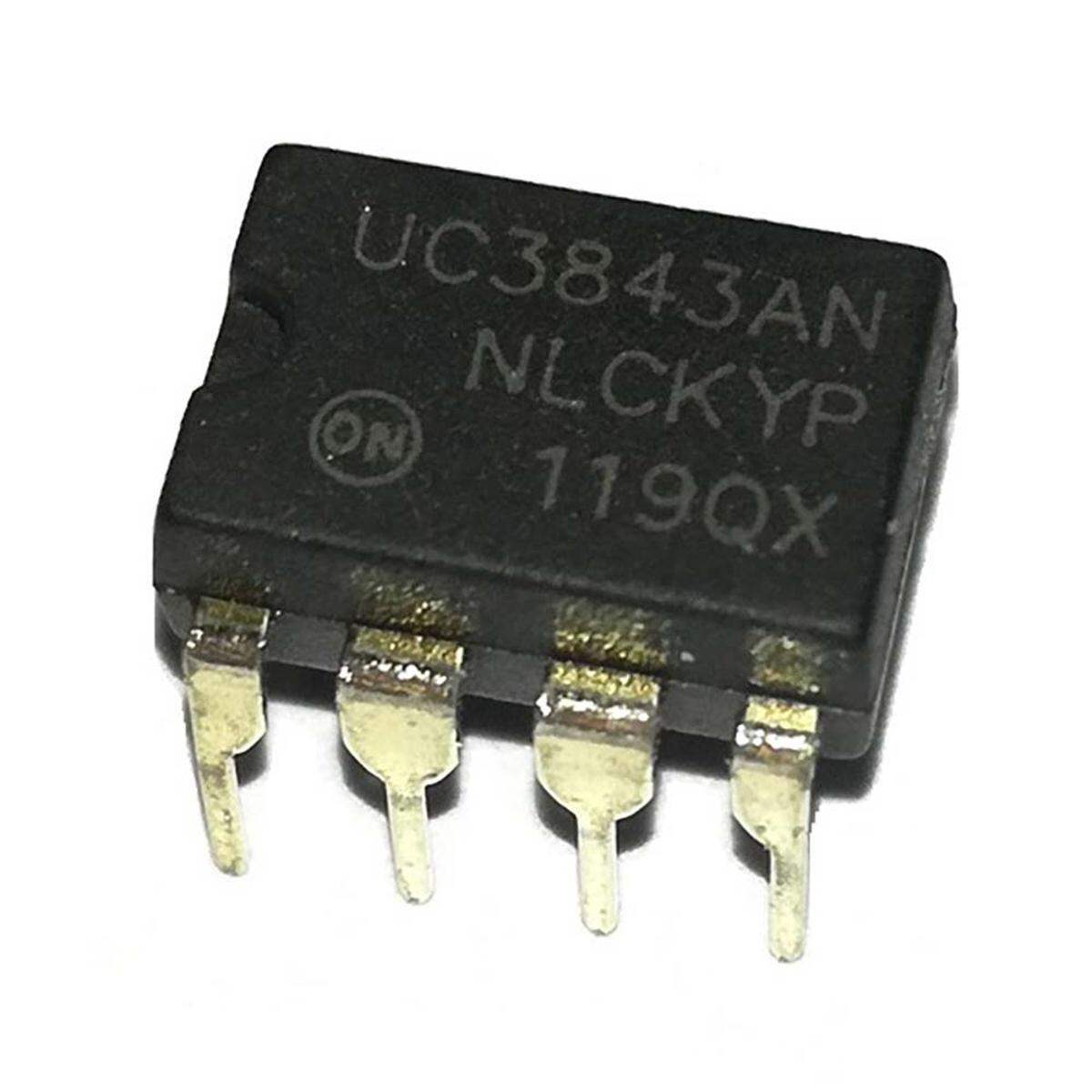

2Pcs- UC3843 Current-Mode PWM Controller

Description: UC3843 Current-Mode PWM Controller

The output stage, suitable for driving N-Channel MOSFETs, is low in the off-state. Differences between members of this family are the under-voltage lockout thresholds and maximum duty cycle ranges. The UC3843 can operate to duty cycles approaching 100%.The UC3843 control IC provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include under voltage lockout featuring start-up current less than 1mA, a precision reference trimmed for accuracy at the error amp input,logic to insure latched operation, a PWM comparator which also provides current limit control, and a totem pole output stage designed to source or sink high peak current.

Features:

• Optimized for OFF-LINE and DC to DC converters
• Low Start-Up Current (<1mA)
• Automatic Feed Forward Compensation
• Pulse-by-pulse current limiting
• Enhanced load response characteristics
• Under-voltage lockout with hysteresis
• Double pulse suppression
• High current totem pole output
• Internally trimmed bandgap reference

Package Include:

• 1 x UC3843 Current-Mode PWM Controller
