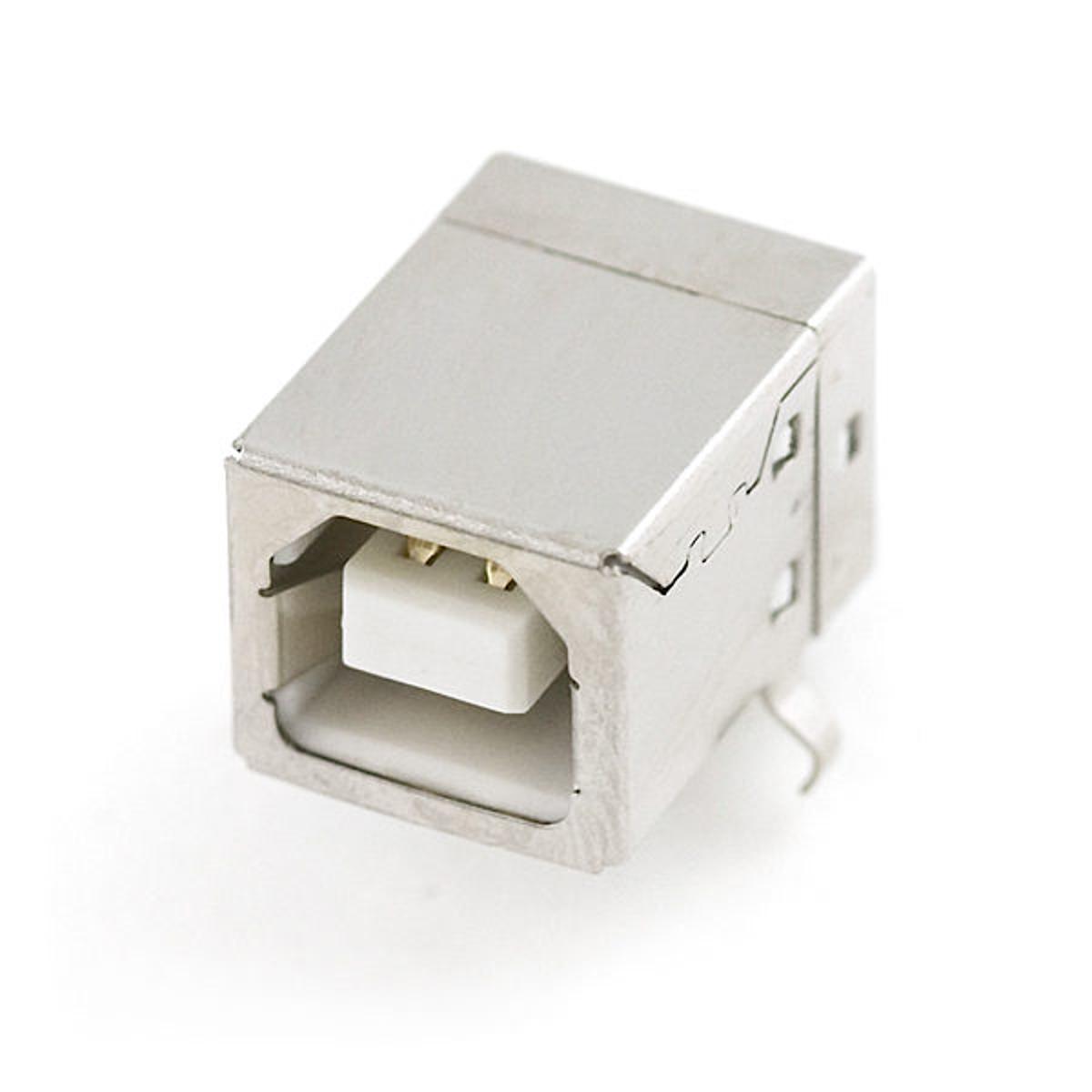

Description: USB Female Type-B Port 4 Pin Right Angle PCB DIP Socket PCB Mount Connector Silver Tone

USB Type ‘B’ Female connector. The 4 connection pins have .1″ spacing allowing it to be inserted into development boards and perf boards with mild modification. You can either drill two 80mil holes for the support posts, or cut them off completely.

This is a USB Type B 4-Pin Female Connector Socket. It is used for laptop, computer interface devices, mobile phone, digital devices, communication equipment and aviation.

Specifications & Features:

• Product Name : USB 2.0 Socket ;
• Material : Metal, Electronic Parts
• Main Color : Black, Silver Tone;
• Type : USB Type B Female
• Mount Style: Through Hole
• Contact Resistance: ≤0.03Ω
• Insulation Resistance: ≥1000MΩ
• Withstand Voltage: 500V AC/minute
• Temperature: -25°C~+85°C
• Rated Load: 30V DC 1.5A
• Mount Pin Distance : 12mm;
• Positions:4
• Pin Spacing : 2 x 1.5mm
• Total Size : 16 x 12 x 11mm
• Weight : 34g

Package Include:

• 1 x USB Female Type-B Port 4 Pin Right Angle PCB DIP Socket PCB Mount Connector Silver Tone
