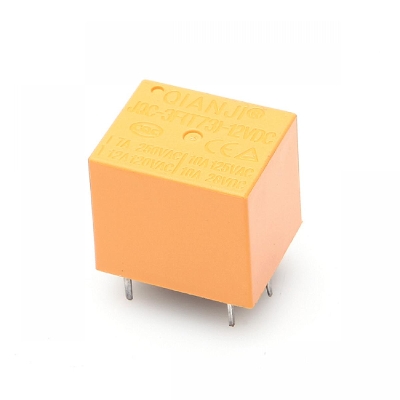

Description: 12V SPDT 7A 250V AC PCB Type Relay

This is a Single pole double throw (SPDT) type relay with 5 pins in a cube type package and rated to work at 12VDC. Load Current Max.: 7Amps 250V AC or 10Amps 28V DC. Coil Resistance: 360-440 Ohms.

Features:

• Product Name: Power Relay
• Model: JQC-3F(T73)
• Coil Voltage: DC 12V
• Contact: AC240V 7A, AC125V 10A, DC28V 10A
• Main Body Size(Approx.) :1.9 x 1.5 x 1.5cm / 0.75″ x 0.55″ x 0.55″ (L*W*H)
• Overall Height(Approx.) :2cm / 0.79″
• External Material Plastic & Metal
• Color : Orange
• Weight :8g

• Model: JQC-3F(T73)
• Coil Voltage: DC 12V
• Contact:AC240V 7A, AC125V 10A, DC28V 10A
• Main Body Size(Approx.) :1.9 x 1.5 x 1.5cm / 0.75" x 0.55" x 0.55" (L*W*H)
• Overall Height(Approx.) :2cm / 0.79"
• External MaterialPlastic & Metal
• Color : Orange
• Weight :8g
