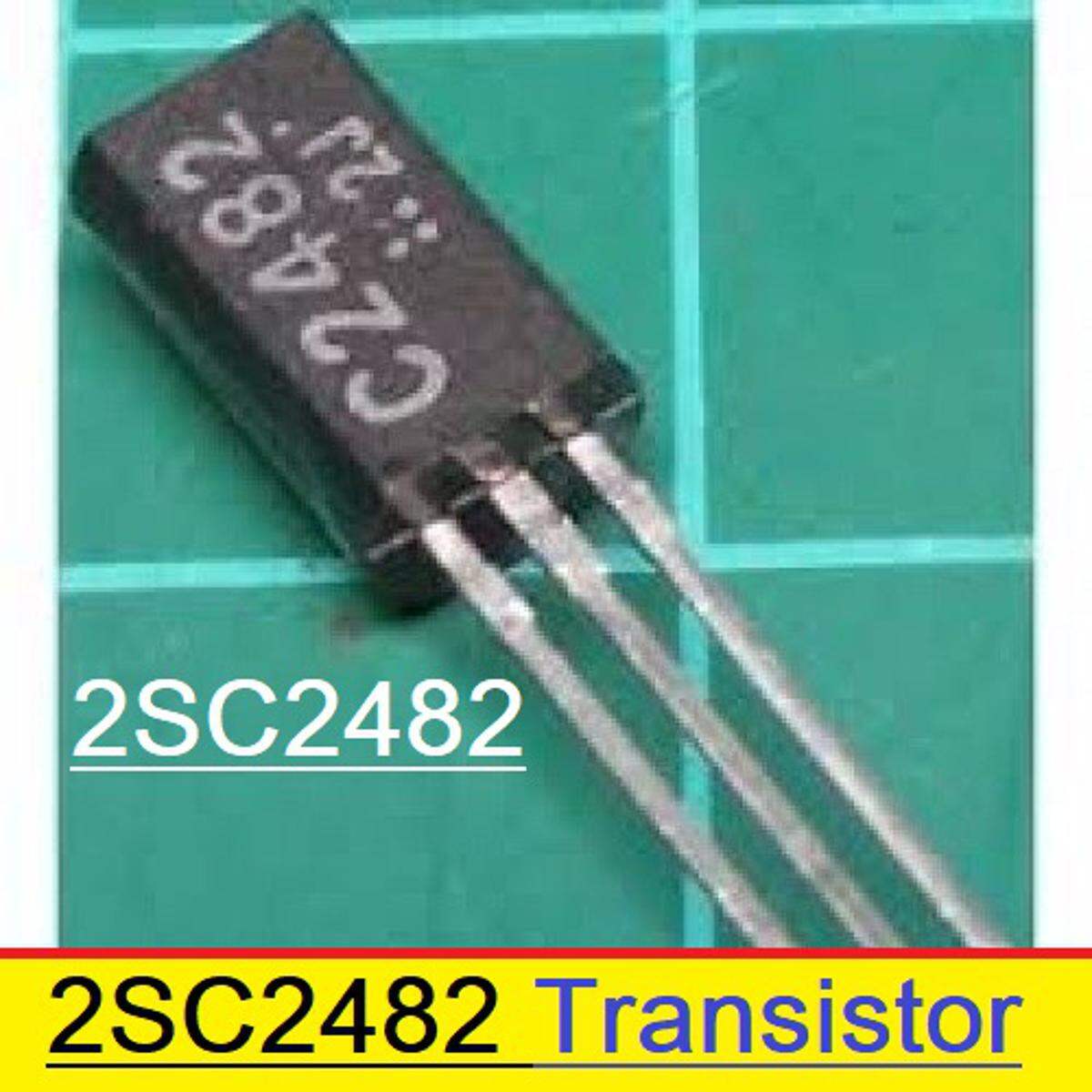

2SC2482 Transistor TO-92-10Pcs

Description: 2SC2482 Transistor TO-92

Specification:

Type Designator: 2SC2482Material of transistor: SiPolarity: NPNMaximum collector power dissipation (Pc), W: 0.9Maximum collector-base voltage |Ucb|, V: 300Maximum collector-emitter voltage |Uce|, V: 300Maximum emitter-base voltage |Ueb|, V: 7Maximum collector current |Ic max|, A: 0.1Maksimalna temperatura (Tj), °C: 150Transition frequency (ft), MHz: 50Collector capacitance (Cc), pF: 3Forward current transfer ratio (hFE), min: 30Noise Figure, dB: -Package of 2SC2482 transistor: TO92

Documents:

2sc2482

Package Include:

1 x 2SC2482 Transistor TO-92-10Pcs
