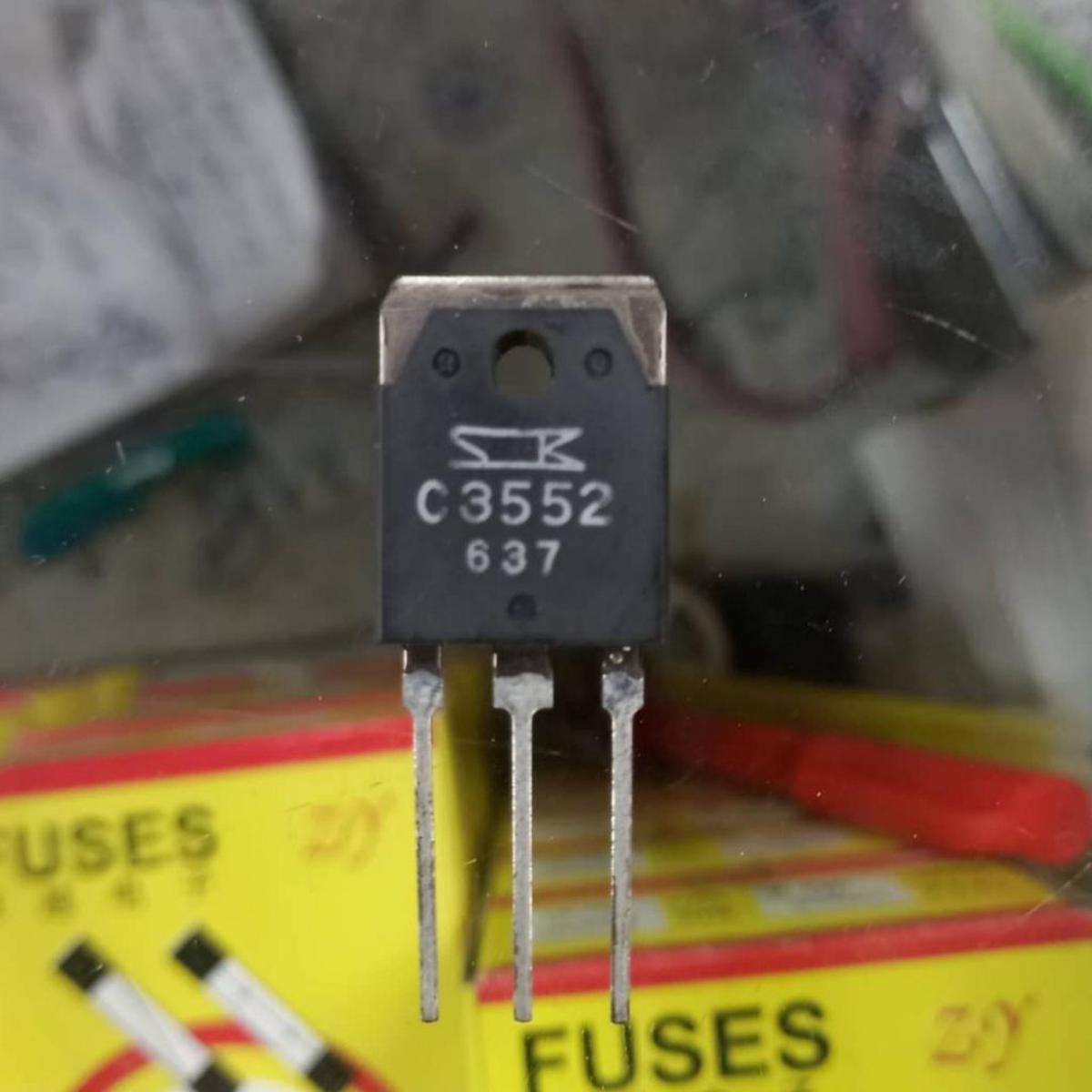

Picture of 2SC3552 C3552 Transistor 12A 1100V 150W Silicon C3552 NPN Transistor TO-247 3 Pin Leads C3552 Switching Transistors
Picture of 2SC3552 C3552 Transistor 12A 1100V 150W Silicon C3552 NPN Transistor TO-247 3 Pin Leads C3552 Switching Transistors

2SC3552 C3552 Transistor 12A 1100V 150W Silicon C3552 NPN Transistor TO-247 3 Pin Leads C3552 Switching Transistors

Category: Building Materials
SKU: UDBD06196
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 166
Tk 195
Tk 195
15% OFF
0 review(s)
  • Polarity: NPN
  • Maximum Collector Power Dissipation Pc: 150 W
  • Maximum Collector-Base Voltage Vcb: 1100 V
  • Maximum Collector-Emitter Voltage Vce: 800 V
  • Maximum Emitter-Base Voltage Veb: 7V
  • Maximum Collector Current Ic max: 12 A
  • Max. Operating Junction Temperature Tj: 150 °C
  • Transition Frequency ft: 15 MHz
  • Collector Capacitance Cc: 215 pF
  • Forward Current Transfer Ratio hFE, MIN: 10
  • Noise Figure, dB: –
  • Package: TO247

Call For Order : 09613-800800

Description: 2SC3552 NPN Transistor 150W

2SC3552 2SC 3552 C3552 NPN Transistor 12A 1100V 150W Silicon NPN Power Transistor High Voltage Bipolar Switching Transistors TO-247

Specification:

  • Polarity: NPN
  • Maximum Collector Power Dissipation Pc: 150 W
  • Maximum Collector-Base Voltage |Vcb|: 1100 V
  • Maximum Collector-Emitter Voltage |Vce|: 800 V
  • Maximum Emitter-Base Voltage |Veb|: 7V
  • Maximum Collector Current |Ic max|: 12 A
  • Max. Operating Junction Temperature Tj: 150 °C
  • Transition Frequency ft: 15 MHz
  • Collector Capacitance Cc: 215 pF
  • Forward Current Transfer Ratio hFE, MIN: 10
  • Noise Figure, dB: –
  • Package: TO247

Applications:

  • High Speed Switching
  • Voltage Regulator
  • General Purpose





  • Polarity: NPN
  • Maximum Collector Power Dissipation Pc: 150 W
  • Maximum Collector-Base Voltage Vcb: 1100 V
  • Maximum Collector-Emitter Voltage Vce: 800 V
  • Maximum Emitter-Base Voltage Veb: 7V
  • Maximum Collector Current Ic max: 12 A
  • Max. Operating Junction Temperature Tj: 150 °C
  • Transition Frequency ft: 15 MHz
  • Collector Capacitance Cc: 215 pF
  • Forward Current Transfer Ratio hFE, MIN: 10
  • Noise Figure, dB: –
  • Package: TO247
