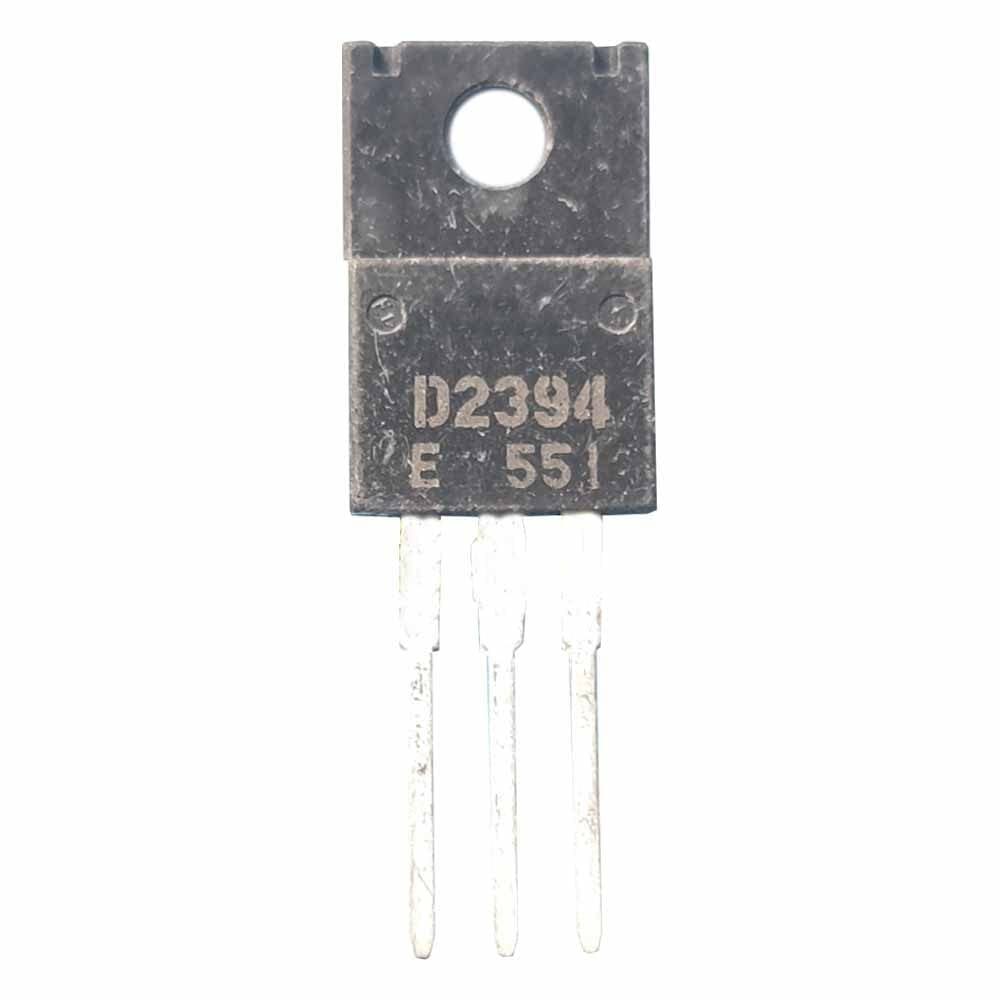

Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor

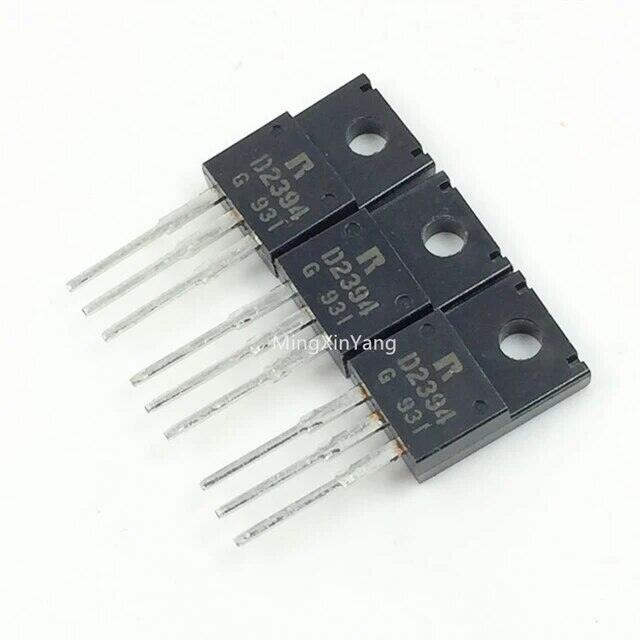

Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor

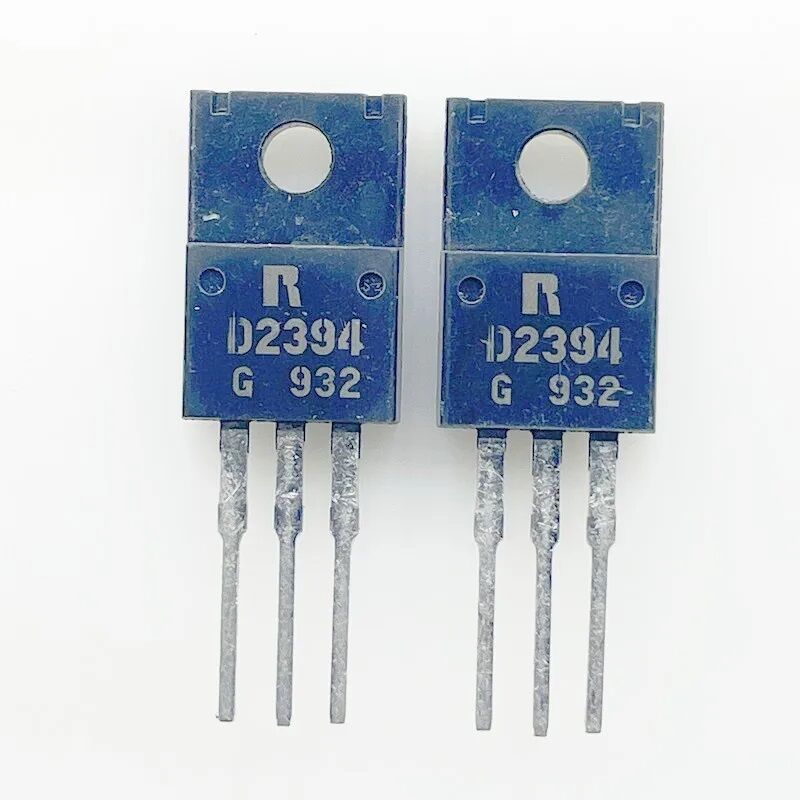

Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor

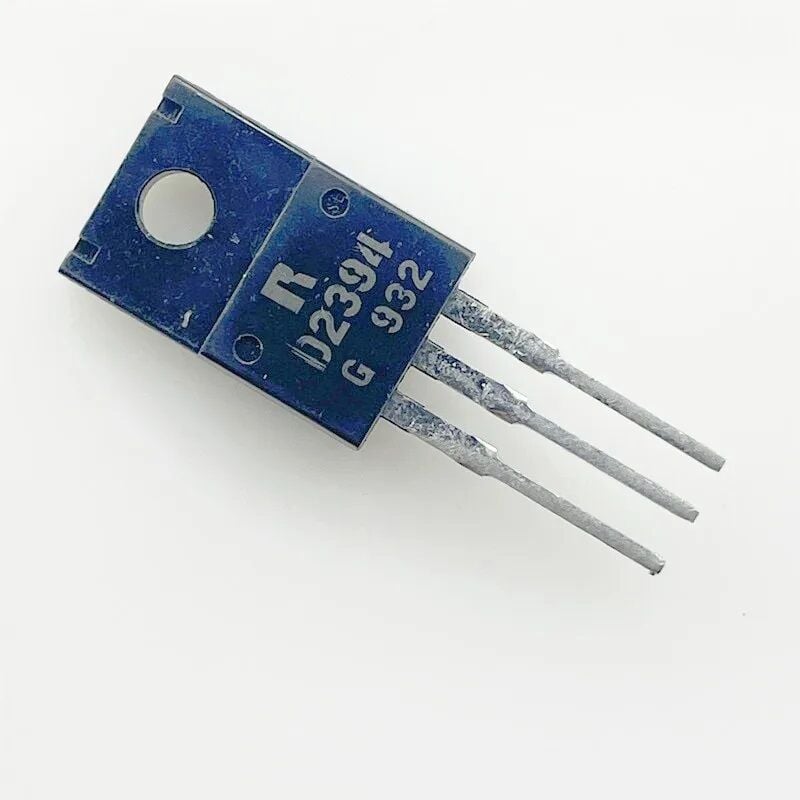

Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor
Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor
Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor
Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor
Picture of 2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor

2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor

Brand
Category: Computers, Components & Accessories
SKU: ELPB1017729
Manufacturer: No Brand
Seller: Electronics Parts BD
Tk 129
0 review(s)

Call For Order : 09613-800800

Description: 2SD2394 D2394 2394 NPN Transistor 60V 3A Carbon Type 3 Pin Leads IC

2SD2394 Transistor D2394 Transistor 60V 3A Carbon Type 3 Pin Leads IC 2394 Transistor Silicon Triple Diffused Planar Transistor.

Features:

1) Low VCE(sat).

2) Excellent electrical characteristics of DC current Gain hFE.

3) Wide SOA.

Pinouts

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 80 V 2. Collector to Emitter Voltage: Vceo = 60 V 3. Emitter to Base Voltage: Vebo = 7 V 4. Collector Current: Ic = 3 A 5. Collector Dissipation : Pc = 2 W 6. Junction Temperature: Tj = 150°C 7. Storage Temperature: Tsg = -55 ~ +150°C

Applications:

1. Low frequency amplifier
