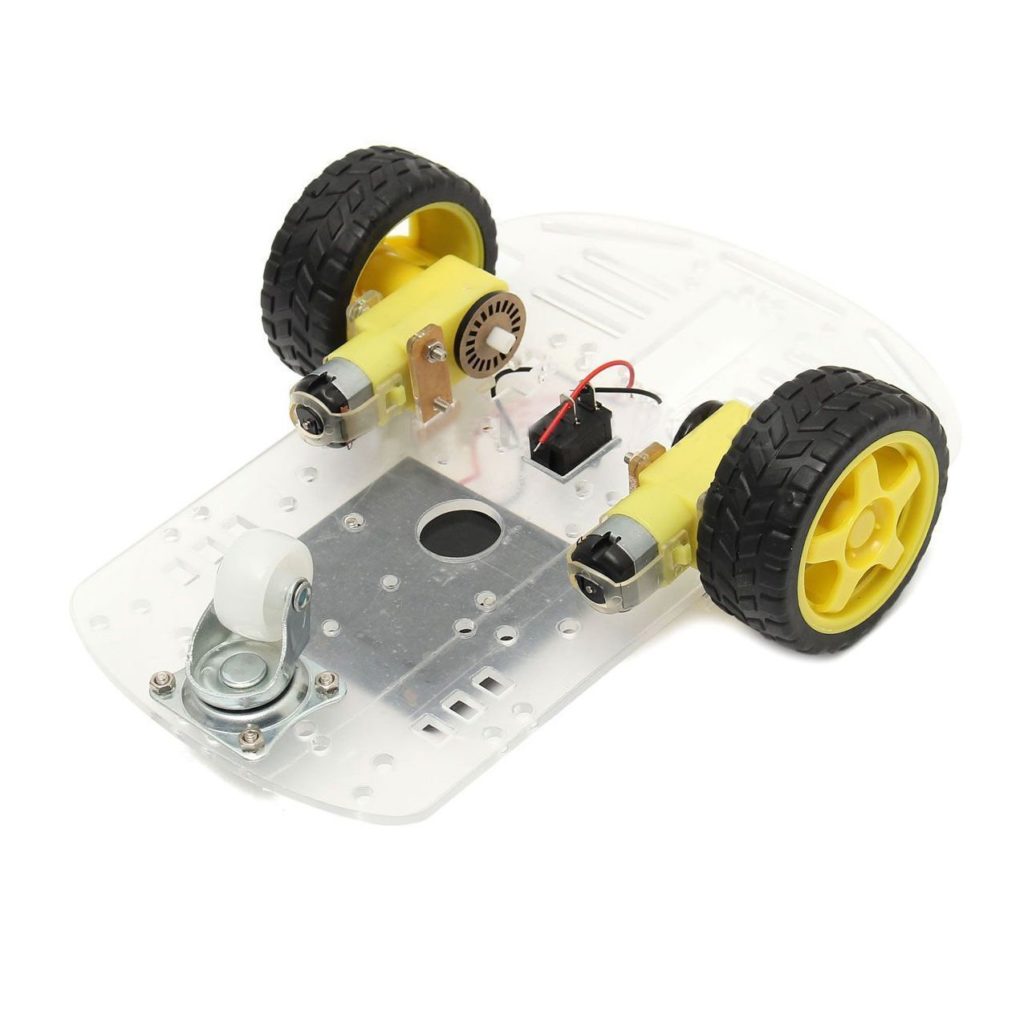

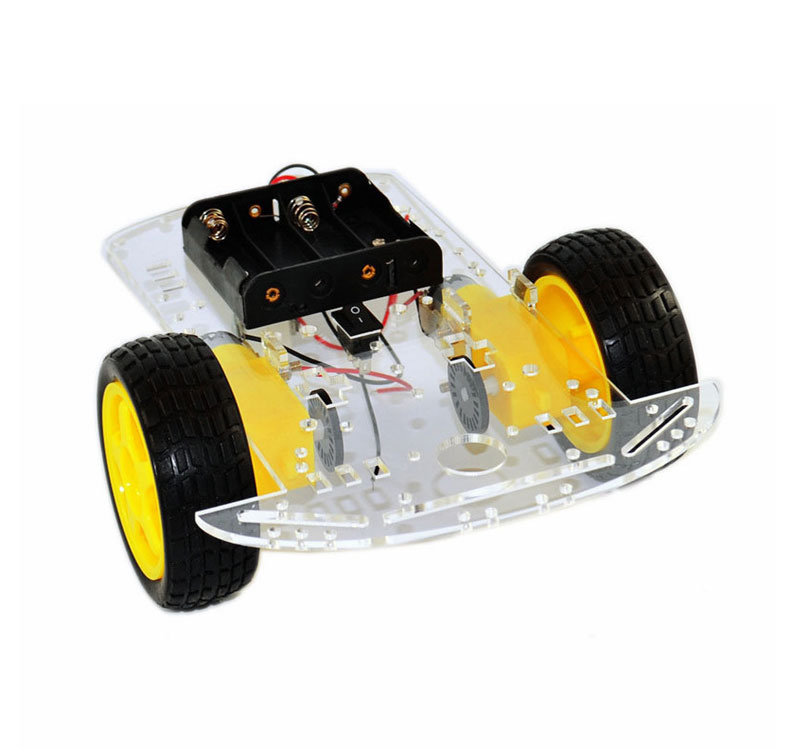

Descriptions: 2WD Smart Robot Car Chassis Kit

This 2WD Smart Robot Car Chassis Kit is easy to assemble and use robot chassis platform. It provides you with everything you need to give your robot a fast two wheel drive platform with plenty of room for expansion to add various sensors and controllers (such as Arduino). All you need to do is supply a basic motor driver and power and you’ll be ready to drive.

• This car is the tachometer encoder.
• Mechanical structure is simple, it is easy to install.
• No add-ins is very convenient, the entire system highly integrated. Can be used to measure distance, speed.
• 4 on the 5th battery compartment, convenient power throughout the system in a switch, while starting and stopping.
• Note: Motor power supply is 3V~6V. All the parameter above is tested without load.

Features:

• Mechanical structure, easy to install.
• This car has tachometer encoder
• Can be used for distance measurement, velocity.
• Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.
• Gear Motor reduction radio: 1:48.
• Size: 22cm x 14.7cm, wheel size: 7cm x 7cm x 2.6cm.
• Note: motor power supply is 3V~6V.

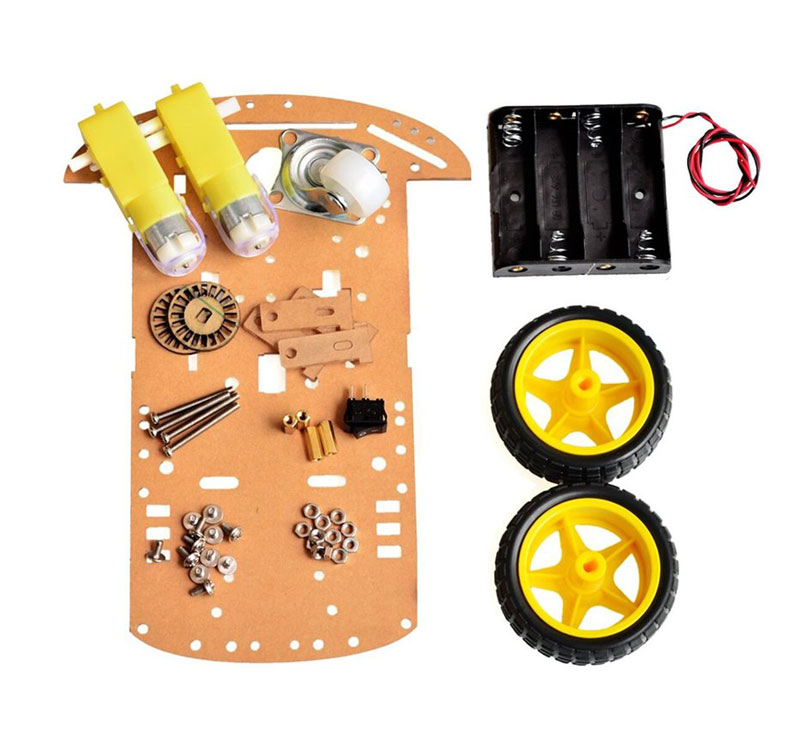

Package Lists:

• 1 x Car Chassis
• 2 x DC Gear Motor(1:48)
• 2 x Car Tire
• 2 x Encoder Disc
• 1 x Universal Wheel
• 1 x Battery Holder (battery is NOT included)
• 1 x Switch
• 4 x Fastener
• 4 x L12 Spacer
• 4 x M3*30 Screw
• 8 x M3*8 Screw
• 6 x M3 Nut

Note: Battery Holder not included

• Mechanical structure, easy to install.
• This car has tachometer encoder
• Can be used for distance measurement, velocity.
• Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.
• Gear Motor reduction radio: 1:48.
• Size: 22cm x 14.7cm, wheel size: 7cm x 7cm x 2.6cm.
• Note: motor power supply is 3V~6V.
