Variable Resistor 10K

3006 Multiturn 103 10K Potentiometer 3 Pin Leads 10K Resistor 10K Volume 10K Variable Resistor 103 Potentiometer 750mW 19mm Trimpot 10K 103 Variable Resistor Volume Control Pot

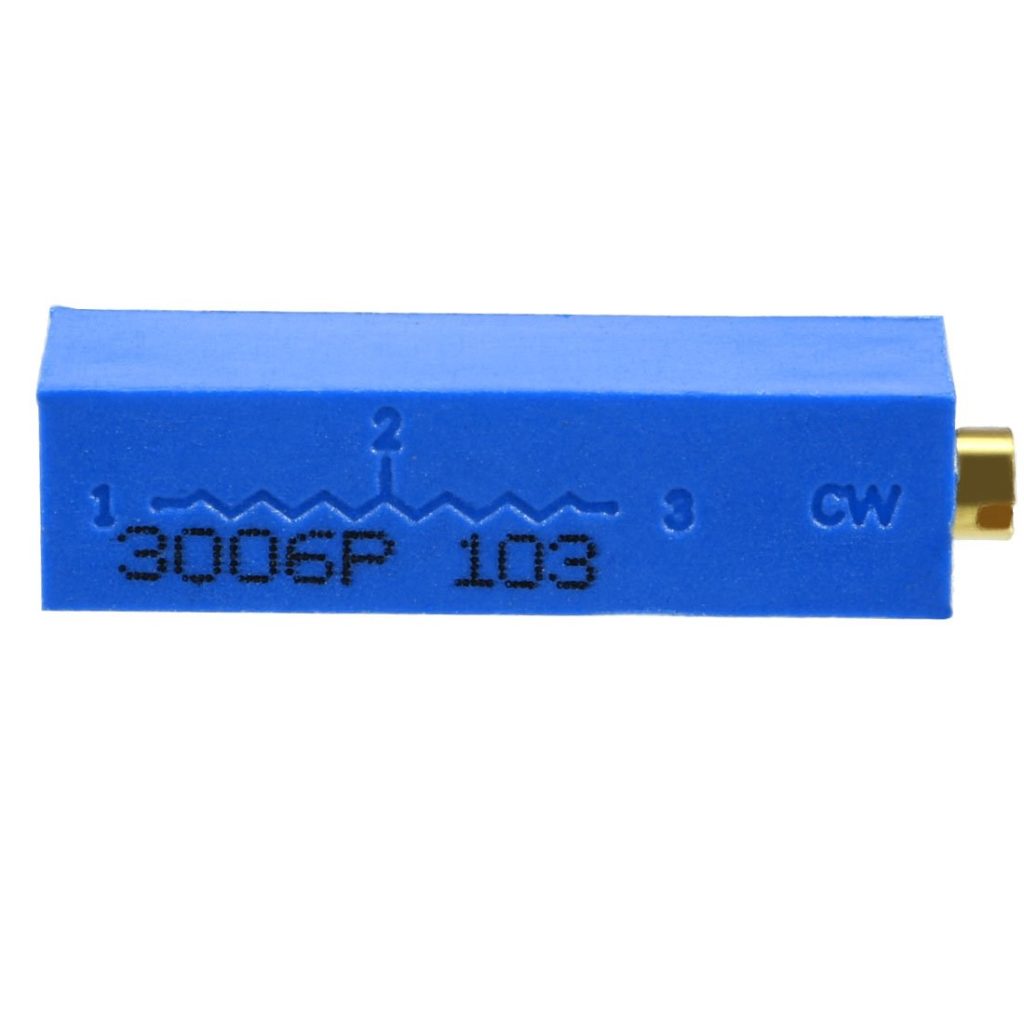

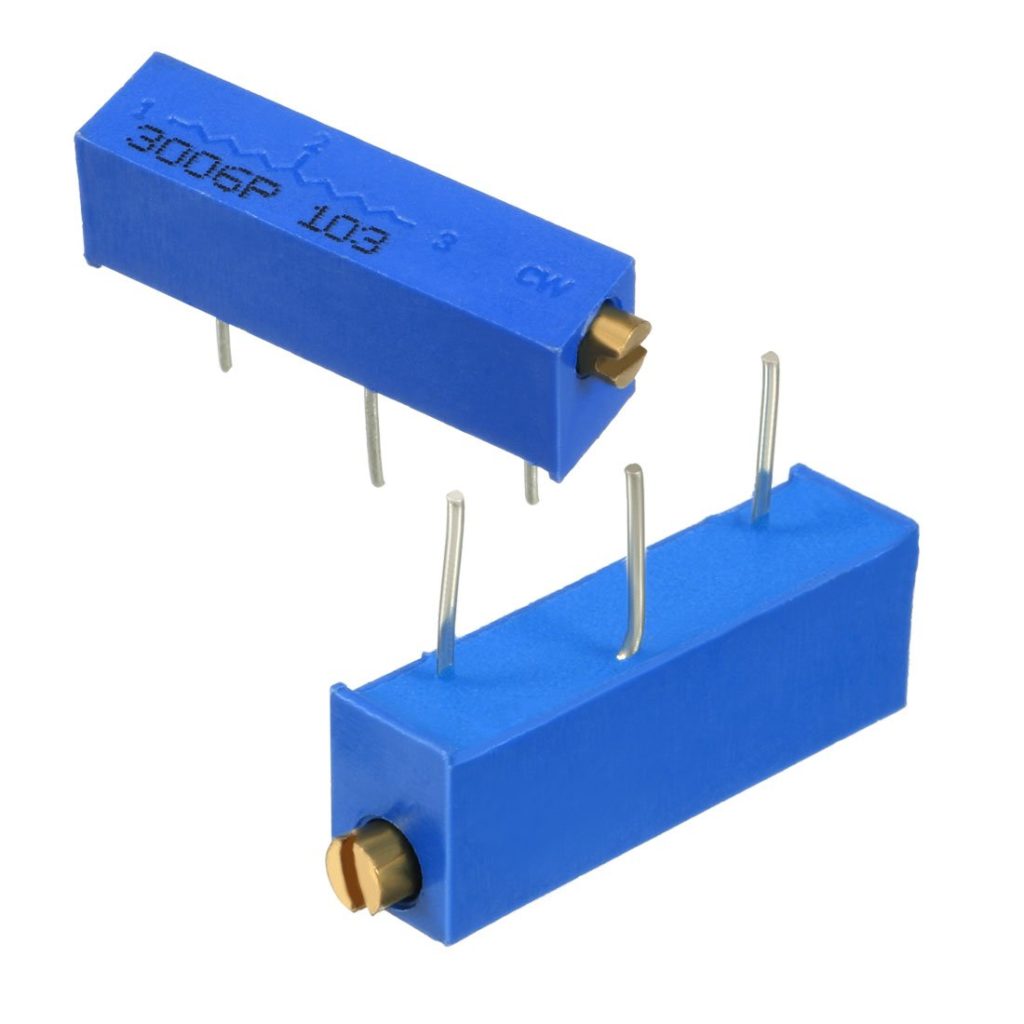

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less. Through hole DIP mounting type. Come with a plastic holder for holding them well.

Specifications:

• Resistance: 10k
• Resistance Tolerance: ±10%
• Absolute Minimum Resistance: ≤ 1% or 2Ω
• Temperature Coefficient: ±100 ppm/°C.
• Withstanding Voltage: 640VAC
• Insulation Resistance: ≥ 1G Ω @ 100VAC
• Contact Resistance Variation: ≤ 1% or 1Ω
• Starting Torque: ≤ 35 mN • m
• Rotation Life: 200 cycles min with max change of ≤ 3% in total resistance
• Resistance Element: Cermet
• Operating Temperature: −55°C to +125°C
• Electrical Endurance: 1000 hours
• Power (Watts): 0.75W, 3/4W
• Tolerance: ±10%
• Temperature Coefficient: ±100ppm/°C
• Number of Turns: 15
• Adjustment Type: Side Adjustment
• Mounting Type: Through Hole

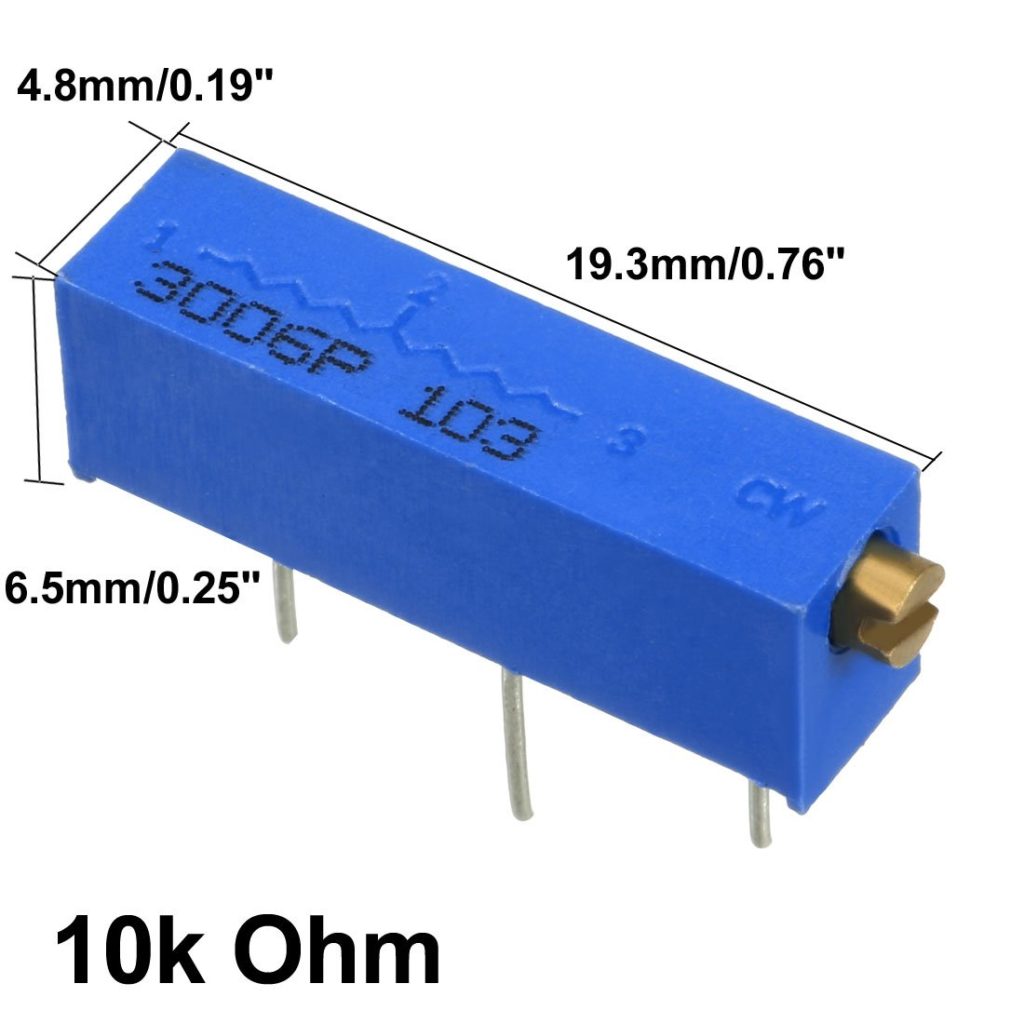

• Dimension Rectangular: 6.35mm x 4.83mm x 19.05mm
• Base Product Number: 3006P

• Resistance: 10k
• Resistance Tolerance: ±10%
• Absolute Minimum Resistance: ≤ 1% or 2Ω
• Temperature Coefficient: ±100 ppm/°C.
• Withstanding Voltage: 640VAC
• Insulation Resistance: ≥ 1G Ω @ 100VAC
• Contact Resistance Variation: ≤ 1% or 1Ω
• Starting Torque: ≤ 35 mN • m
• Rotation Life: 200 cycles min with max change of ≤ 3% in total resistance
• Resistance Element: Cermet
• Operating Temperature: −55°C to +125°C
• Electrical Endurance: 1000 hours
• Power (Watts): 0.75W, 3/4W
• Tolerance: ±10%
• Temperature Coefficient: ±100ppm/°C
• Number of Turns: 15
• Adjustment Type: Side Adjustment
• Mounting Type: Through Hole
• Dimension Rectangular: 6.35mm x 4.83mm x 19.05mm
• Base Product Number: 3006P
