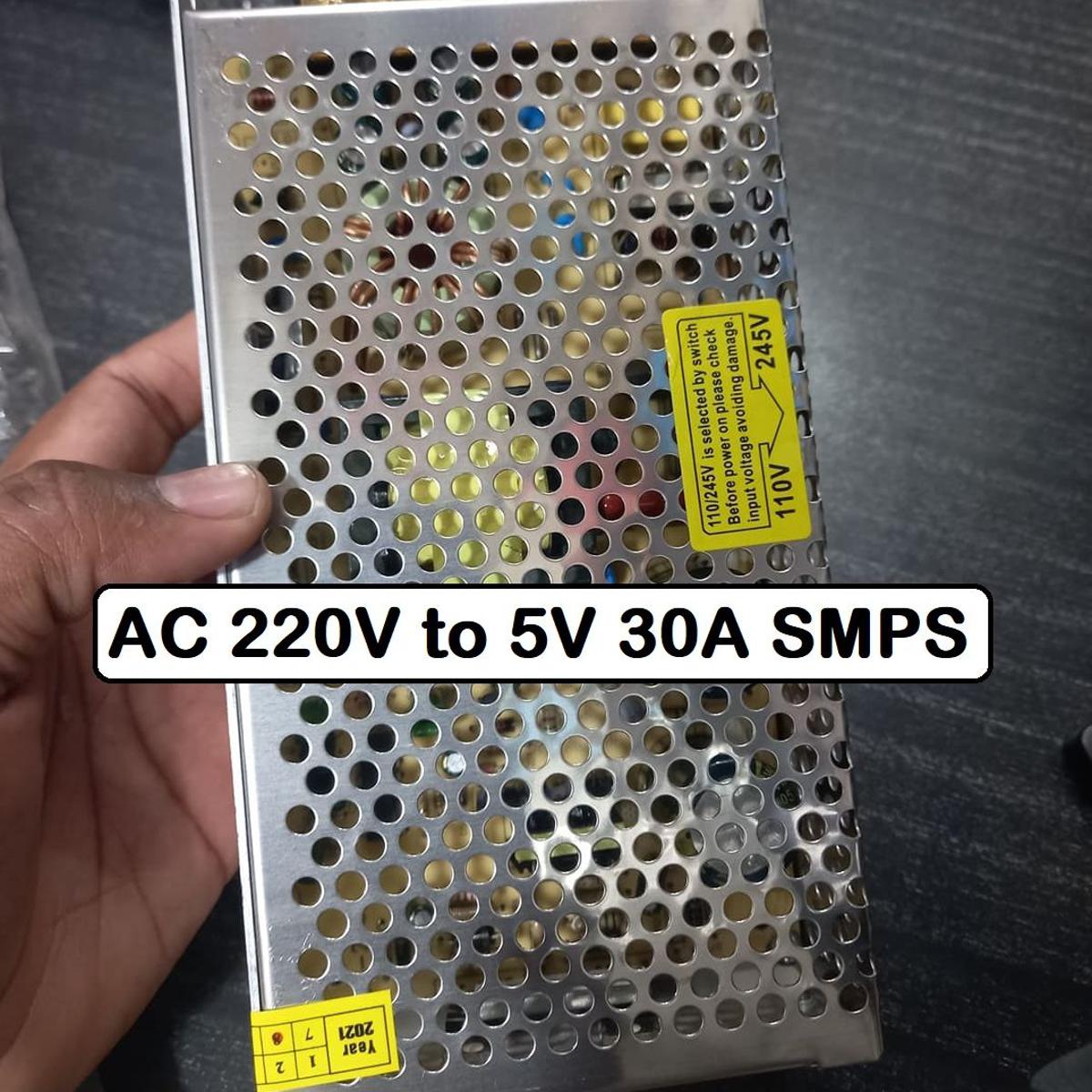

Description: SMPS AC 220v To DC 5v 30A 150W Switching Mode Power Supply Adapter Charger For Electronic Project Industrial Security Camera

Aswitched mode power supplyis an electronicpower supplythat incorporates a switching regulator toconvert electrical powerefficiently. Like other power supplies, an SMPS transfers power from a source, likemains powerto a load, such as apersonal computer, while convertingvoltageandcurrentcharacteristics. Unlike alinear power supply, the pass transistor of a switching-mode supply continually switches between low-dissipation, full-on and full-off states, and spends very little time in the high dissipation transitions, which minimizes wasted energy. Ideally, a switched-mode power supply dissipates no power.Voltage regulationis achieved by varying the ratio of on-to-off time. In contrast, a linear power supply regulates the output voltage by continually dissipating power in the passtransistor. This higher power conversion efficiency is an important advantage of a switched-mode power supply. Switched-mode power supplies may also be substantially smaller and lighter than a linear supply due to the smaller transformer size and weight.

Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required.

Specification:

• Input Voltage: AC 100 – 245V 50 / 60Hz
• Output Voltage: DC5V
• Output Current:30A
• Output Power: up to 150W
• Efficiency: 80%
• WorkingTemperature:0~40C
• StorageTemperature:-20~60C
• AmbientHumidity:0~95%Non-Condensation
• Protection: Short circuit/Over load/Over voltage
• Shell Material: Metal case/Aluminum base.
• Color: Sliver

Features;

• 100% Full Load Burn-in Test
• Cooling by Free Air Convection
• High Quality and High Performance
• LED power supply with a metal body for hidden installation for LED lighting
• Design with Built-in EMI Filter, improve signal precision.
• Certifications: CE & RoHs
• No Minimum Load.
• Compact Size Light Weight.
• High Efficiency, low energy consumption
• Protection: Shortage Protection, Overload Protection, Over Voltage Protection
• Safety Compliance CE and RoHS, a reliable switching power supply with high quality material, durable and safety in use. High efficiency and stable performance
• Wide input voltage range, steady and precise output voltage. Great power transformer for electronic equipment, Led Lighting, home appliance, Radio, Security cameras, Computer etc.

Wiring:

• L, N, GND: AC power input
• +V: DC power output “+”
• -V: DC power output “-”
• +V / ADJ: fine adjustment of output voltage

Note:

• This Power Supply is only suitable for indoor use, non-detachable power shell.
• External power supply round hole mesh heat vents, in the range of 50cm within the outlet Do not place other flammable items.
• Don’t place other items in the product range of 5 cm, to ensure the power supply with good thermal environment and safety.
• Please accurately calculate the load power but not overload. Don’t touch the case during the power is working.
• Do not short-circuit output if no output, please use off one minute re-energized.
• Carefully verify the power link is correct, rigorous power lines reversed before use it.
• Professional installation of qualified electrician is highly recommended.

• Input Voltage: AC 100 – 245V 50 / 60Hz
• Output Voltage: DC5V
• Output Current:30A
• Output Power: up to 150W
• Working Temperature: 0~40C
• Storage Temperature: -20~60C
• Protection: Short circuit/Over load/Over voltage
• Shell Material: Metal case/Aluminum base.
• Color: Sliver
