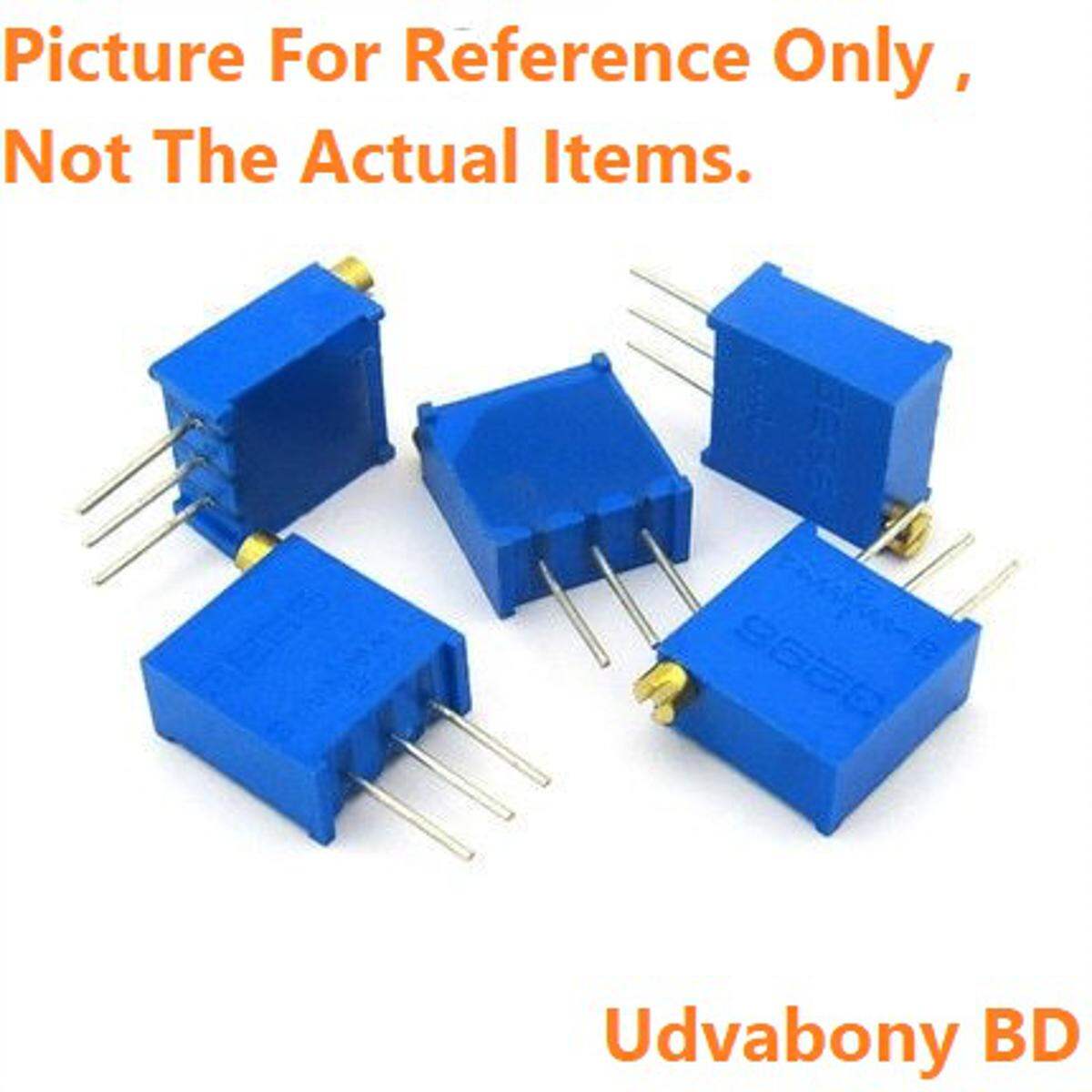

3296 203 Square Cermet 20K Ohm 1/2W Vertical Potentiometer Variable Resistors 3 Pin 20K Ohm Trimpot Trimmer 203 Potentiometer 25 Turn 3 Pin 3296 Adjustment Trim Pot Electrical Circuitry & Parts - 3Pcs

Square Trimpot Trimming Potentiometers perform a variety of circuit adjustments in all types of electronic equipment. Multi-turn trimmers consist of three actuation types – lead screw, worm gear, and planetary gear. Lead screw actuated trimmers have a linear wiper path; worm gear and planetary gear actuated trimmers have a circular path. Multi turn trimmers are suitable for applications that require fine resistance adjustment.

A common elements in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less. Through hole DIP mounting type. Multiturn design cermet potentiometer, squre linear Come with a plastic holder for holding them well.

Specifications:

• Max Power: 0.5W,1/2W PC Pins
• Cermet (Ceramic / Metallic composite)
• 25 Turn Top Adjustment
• Product Name : Cermet Potentiometer;
• Withstand Voltage : 500V
• Rated Power : 1/2W;
• Resistance Value : 20K Ohm
• Tolerance : 10%;
• Adjustment Tyoe : Top Adjustment
• Mounting Type : Through Hole(DIP);
• Resistance Change Type : Linear;
• Resistive Material : Cermet
• Temperature Coefficient : 100ppm/C;
• Square Body Size : 9 x 9mm/ 3/8″ x 3/8″ (L*W);Total Length : 15mm/ 5/8″;
• Color : Blue
• Weight : 5g;

Features:

Note

Product type

• 3296
