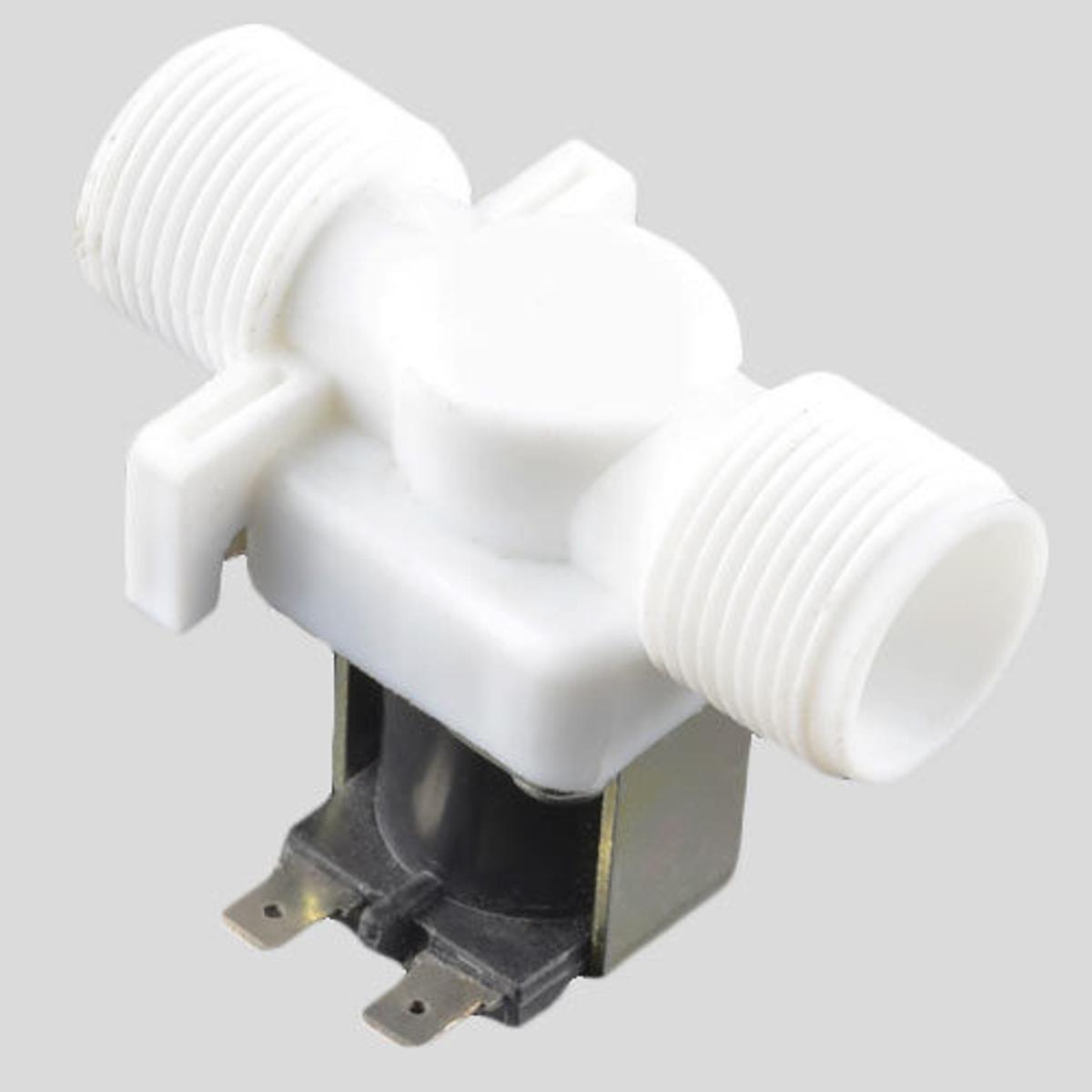

Description: 12V Solenoid Water Valve 3/4″ Inch Diameter DC 12V Solenoid Water Pressure Valve For Engineering Projects DIY

The 12V solenoid controlled fluid valve. The valve is normally closed (NC) and opens when transmitting voltage to it. In order to function normally, a minimum fluid pressure of 0.02Mpa (3 PSI) is required. The valve is directionally sensitive, which means that liquid can only flow from the input to the output, not the opposite. Simply connect a fluid source to the 3/4" threaded inlet and it will interrupt the flow until 12V is applied to the fast-on connectors on the solenoid.

Specification:

• Operating voltage: 12VDC
• Coil DC resistance: 39ohm
• Power Consumption: ~ 300mA
• Working Pressure:0.02 ~ 0.8Mpa (8 bar)

Features:

• Voltage: 12V DC
• Rated Power: 5W
• Operation model : Normally closed (N/C)
• Pressure: 0.02 - 0.8Mpa
• Port size: G3/4''
• Fluid temperature: 0-100 degrees Celsius
• Usage: water and low viscosity fluids
• Flow characterastics: 0.02Mpa>2L/min;
• 0.10Mpa>10L/min; 0.30Mpa>16L/min;
• 0.80Mpa>28L/min

Note:This is not a gravity-feed solenoid. This means that you will need enough water pressure to fully open the valve.

Package Include:

• 1 x 12V Solenoid Water Valve 3/4″ Inch Diameter DC 12V Solenoid Water Pressure Valve For Engineering Projects DIY

• Voltage: 12V DC
• Rated Power: 5W
• Operation model : Normally closed (N/C)
• Pressure: 0.02 - 0.8Mpa
• Port size: G3/4''
• Fluid temperature: 0-100 degrees Celsius
• Usage: water and low viscosity fluids
• Flow characterastics: 0.02Mpa>2L/min;
• 0.10Mpa>10L/min; 0.30Mpa>16L/min;
• 0.80Mpa>28L/min
