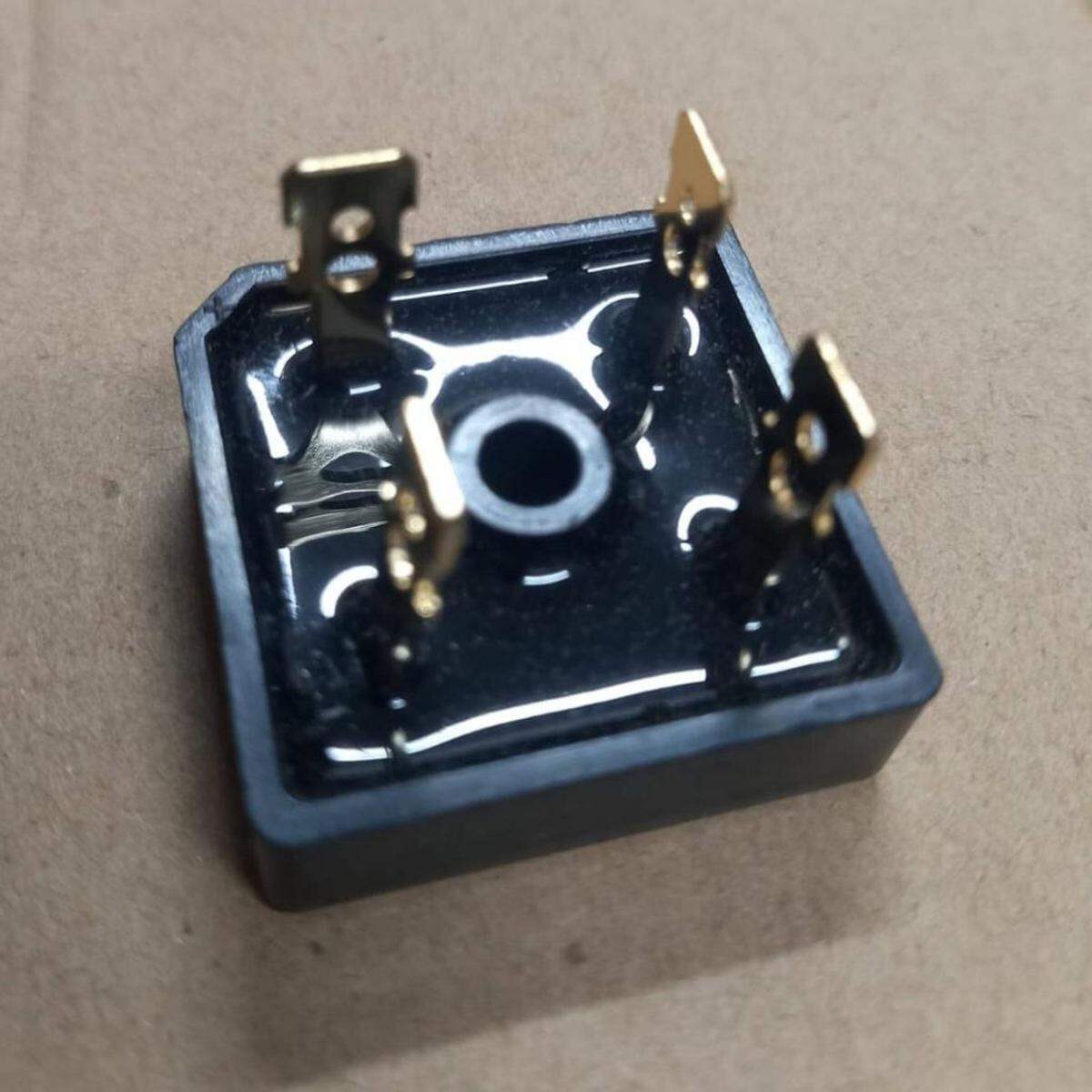

35100 Diode S35VB100W 35A 100W 1000V AC To DC Single Phase Metal Housing 4 Pins Leads 35A Diode 1000V 35100 Bridge Rectifier 35100 Full Wave Bridge Rectifier Diode

Description: Full Wave S35VB100W S35VB100 35V 100W 1000V AC To DC Single Phase Metal Housing Electronic Bridge Rectifier

35100 Diode S35VB100W 35A 100W 1000V AC To DC Single Phase Metal Housing 4 Pins Leads 35A Diode 1000V 35100 Bridge Rectifier 35100 Full Wave Bridge Rectifier Diode
The interior is mainly composed of four diode bridge to achieve the input AC voltage into DC voltage output. High quality bridge rectifiers used for conversion of an alternating current input into a direct current output. The top and internal part are well welded which ensures a more stable performance. Base is small and has a large over-current capacity, good heat dissipation and low voltage drop. Ideal for printed circuit board, Rectifier bridge as a power components, applied to various power equipment.

Features:
Glass Passivated Die Construction
Low Forward Voltage Drop
Ideal for Printed Circuit Boards
High Surge Current Capability
Enhanced high-current density single in-line package.
Superior thermal conductivity.
Material categorization: For definitions of compliance.
Base is small and has a large over-current capacity, good heat dissipation and low voltage drop
Specification:
Model: S35VB100;
Rectifier Component: Full bridge
Recurrent Peak Reverse Voltage: 1000V;
Average Forward Rectified Current: 10A
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Dimensions : 30x30x22.5mm
Voltage: 35V
Power: 100W
