3590S-2-502L 5K 502 Multiturn Precision 5K Linear Precision Potentiometer 5K Ohm Adjustable Potentiometer Multi 10 Turn Counting Dial Rotary Wirewound Pot Electronics Circuitry & Parts

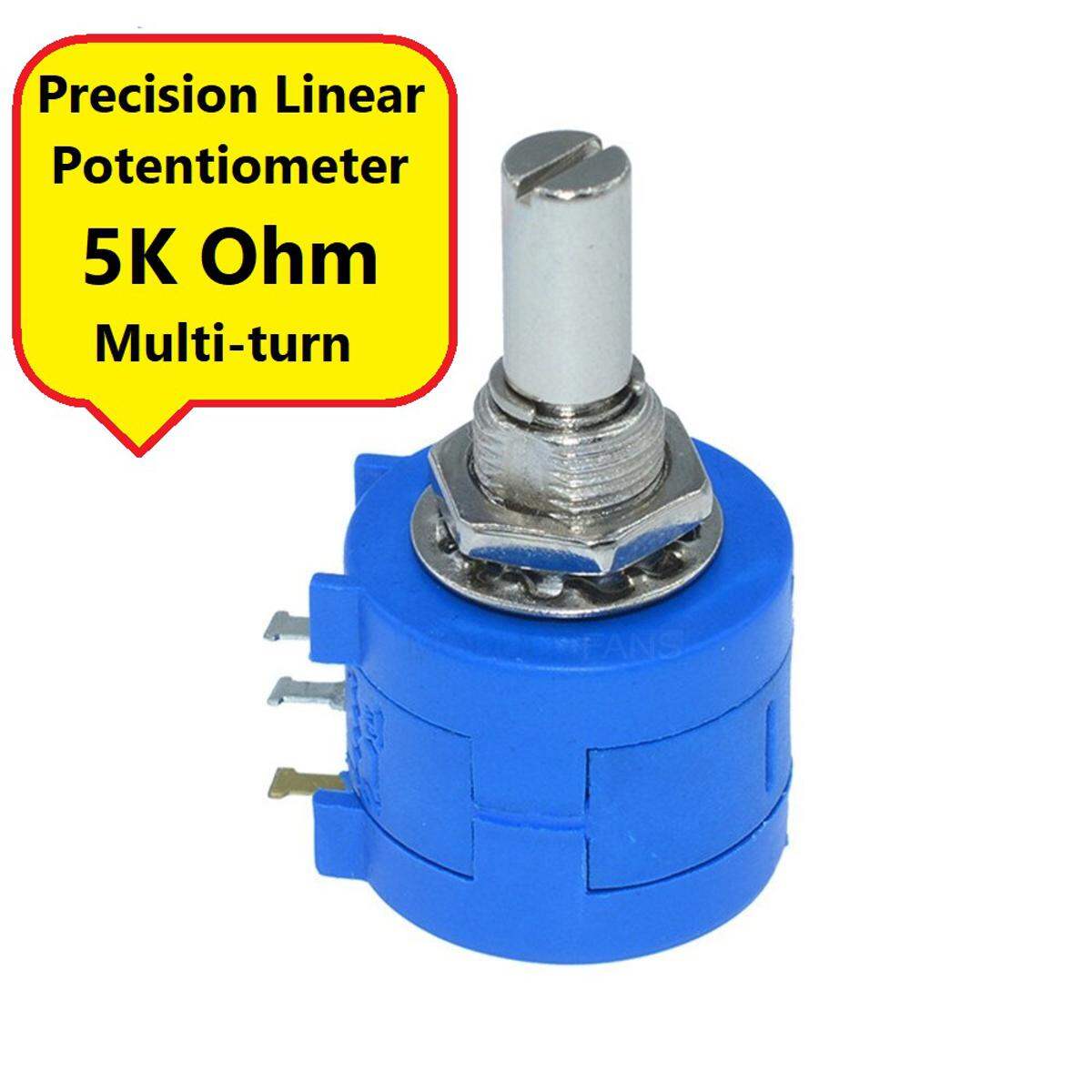

Description: Precision Linear Potentiometer 5K Ohm Multiturn Pot

3590S-2-502L 5K 502 Multiturn Precision 5K Linear Precision Potentiometer 5K Ohm Adjustable Potentiometer Multi 10 Turn Counting Dial Rotary Wirewound Pot Electronics Circuitry & Parts

Features:

• 10 turn Potentiometer,Adjustable Resistor.
• Portable design, convenient to carry.
• High quality and durable.
• Easy to install.
• Precision workmanship, simple operate.
• Designed for use in HMI application
• Solder lug(suffix-S) or PC pins(suffix-P)
• Optional AR pin feature
• Sealing is IP65 rated (fully sealed body)
• Plastic or metal shaft and bushing

Specifications:

• Material: Plastic and metal
• Color: Blue
• Shape: Round
• Includes: 10 turns
• Technique: Wirewound
• Independent linearity: ± 0.25%
• Resistance: 5k ohms
• Resistance Tolerance: ± 2 ~ ± 10%
• Power: 2 W
• Rotation angle: 3600 ± 5 °
• Rotation cycle (no load): 1,000,000
• Operating Temperature Range: + 1 ~ + 125 Celsius
• Storage Temperature: -55 ~ + 125 Celsius
• Load Life: 1000 hours
• Resistance Tolerance: 5%
• Potentiometer Size: 22.22x38mm
• Shaft Diameter : 6.35 x 10mm
• Threaded Diameter : 9mm;
• Total Length : 42mm

Applications:

• Industrial, Consumer Electronics, Portable Devices, Power Management

Package Includes:

• 1 x Multiturn Precision 5K 3590S-2-502L Linear Precision Potentiometer 5K Ohm Adjustable Potentiometer Multi 10 Turn Counting Dial Rotary Wirewound Pot
