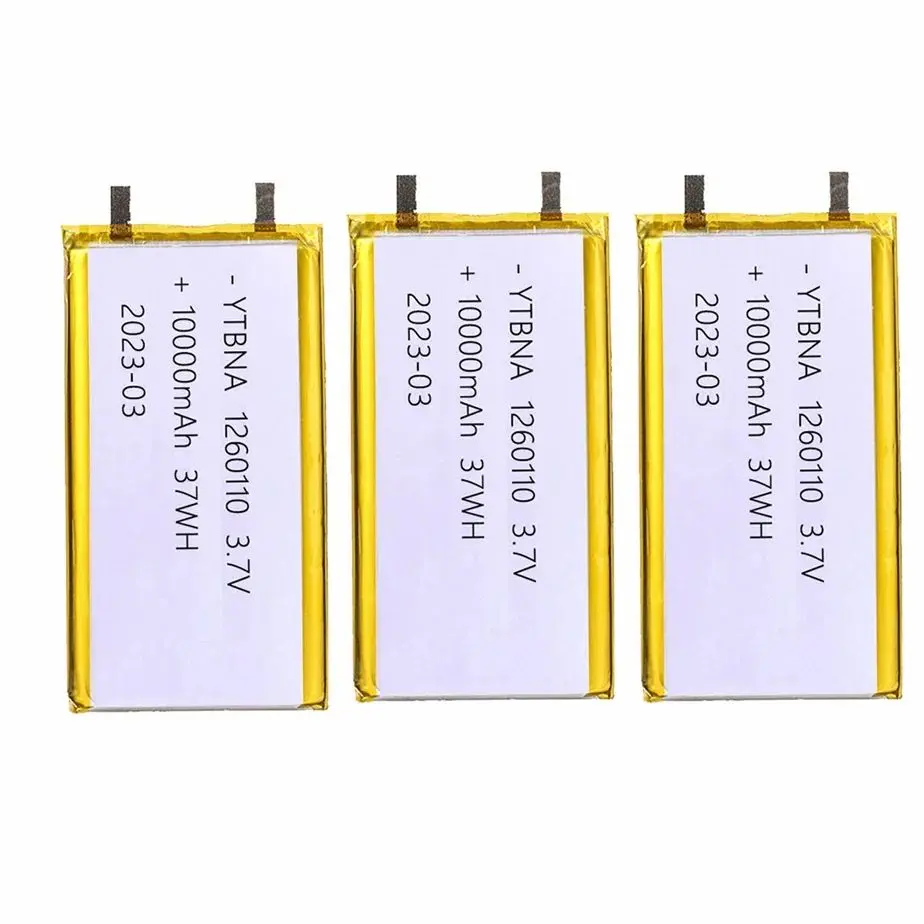

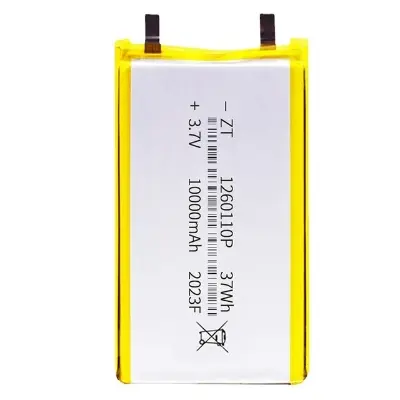

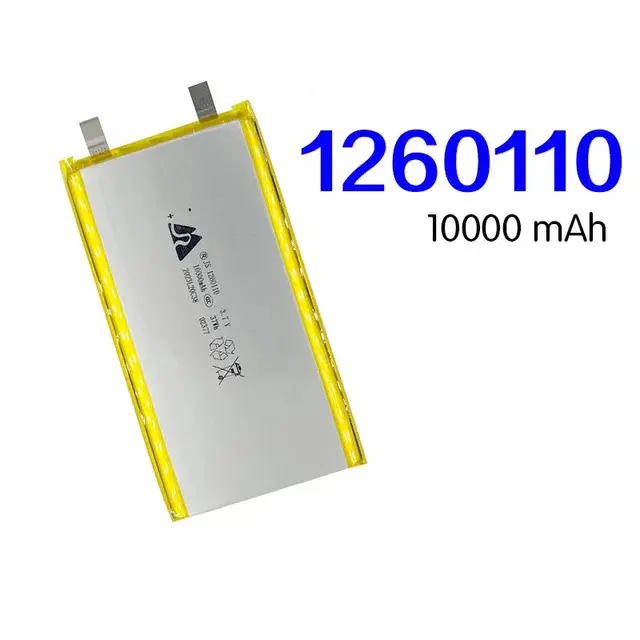

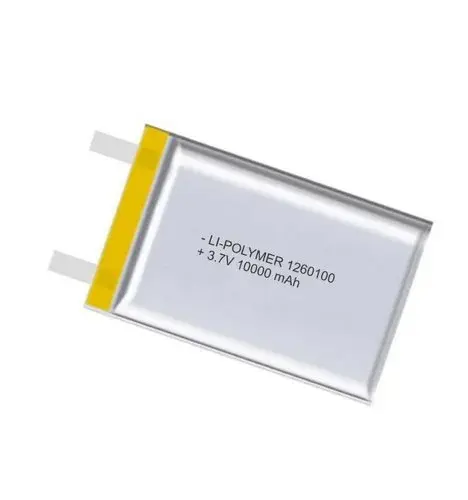

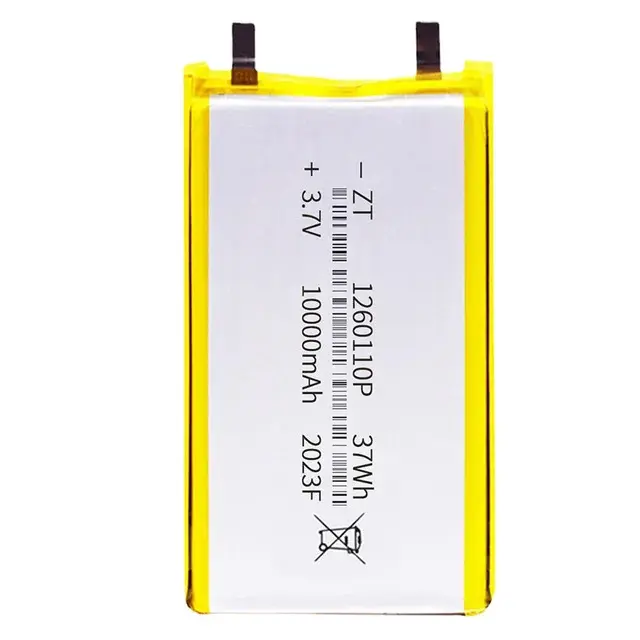

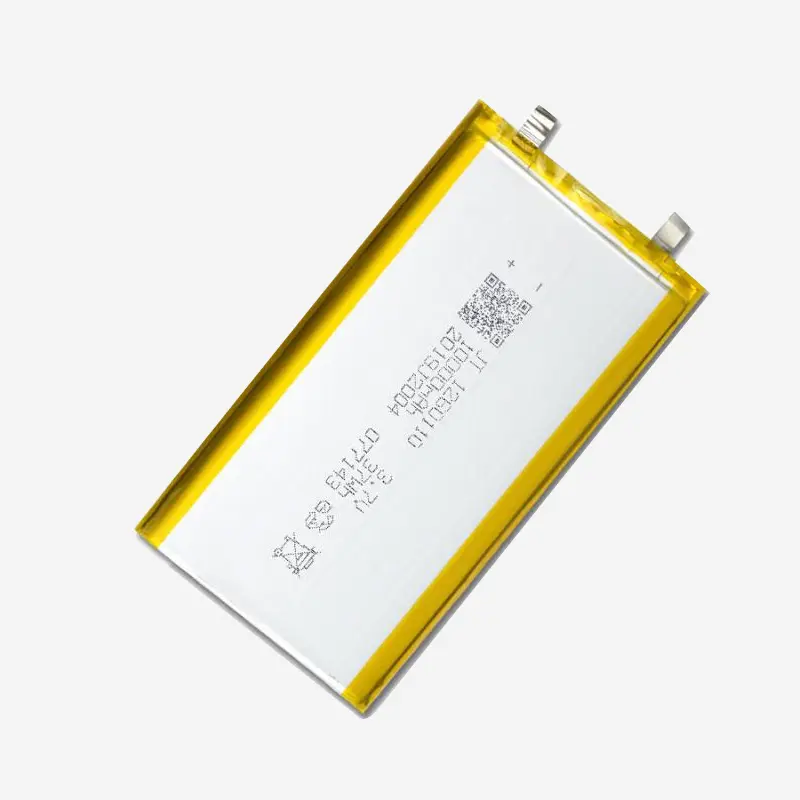

3.7V 10000mAh 1260110 Lithium Polymer Battery Li-Po Battery Cell – Slim, Lightweight, and Long-Lasting Power Solution for DIY Projects, Robotics, Portable Devices.(Multicolor)

Product Description

The 3.7V 10000mAh 1260110 Lithium Polymer Battery Cell is a high-capacity, rechargeable energy storage solution designed for a wide range of portable electronic devices and DIY projects. Built with advanced lithium polymer (Li-Po) chemistry, it offers a stable discharge rate, long cycle life, and compact form factor.

With a slim rectangular profile (12mm thickness × 60mm width × 110mm length), this battery cell delivers powerful energy storage in a lightweight and space-efficient design. It is widely used in applications such as tablets, handheld devices, GPS units, medical equipment, power banks, robotics projects, and other custom electronics.

Engineered for safety and reliability, the battery comes with overcharge, over-discharge, and short-circuit protection when paired with the appropriate Battery Management System (BMS). Its large 10000mAh capacity ensures extended runtime for your devices, making it ideal for projects requiring long-lasting performance.

Specifications

• Battery Type: Lithium Polymer (Li-Po) Rechargeable Cell
• Nominal Voltage: 3.7V
• Capacity: 10000mAh (10Ah)
• Model Number: 1260110 (represents 12mm thickness × 60mm width × 110mm length)
• Energy: ~37Wh
• Standard Charge Voltage: 4.2V (max)
• Discharge Cut-off Voltage: ~3.0V
• Dimensions: Approx. 12mm (thickness) × 60mm (width) × 110mm (length)
• Weight: ~150–200g (varies slightly depending on manufacturer)
• Cycle Life: 500+ cycles (depending on usage and care)
• Output: Single cell, requires a protection circuit/BMS for safe use
• Applications: Power banks, tablets, handheld devices, GPS systems, robotics, DIY electronics, backup power supplies

FAQs

Q1: What does the number 1260110 mean?
It refers to the battery’s dimensions — 12mm (thickness) × 60mm (width) × 110mm (length).

Q2: Is this battery ready to use out of the box?
Yes, but it is recommended to pair it with a protection circuit (BMS/PCM) for safe charging and discharging, especially in custom projects.

Q3: How do I charge this battery?
You need a dedicated Li-Po charger with a constant current/constant voltage (CC/CV) profile, charging up to 4.2V. Never use chargers designed for other chemistries (like NiMH or lead-acid).

Q4: Can I connect multiple cells to increase voltage or capacity?
Yes. You can connect cells in series to increase voltage or in parallel to increase capacity. However, you must use a proper BMS to manage balancing and protection.

Q5: Is this battery safe?
Li-Po batteries are safe if used correctly. Always avoid puncturing, overcharging, or short-circuiting. Use a fireproof Li-Po safety bag during charging for added protection.

Q6: What devices are compatible with this battery?
It is ideal for DIY electronics, robotics, power banks, tablets, GPS devices, and other portable systems that require a 3.7V high-capacity power source.

Q7: How long does this battery last on a full charge?
This depends on the device’s power consumption. For example, a 1000mA (1A) load will run for roughly 10 hours before depletion.

Q8: What is the cycle life of this battery?
Typically, 500+ charge/discharge cycles if used with proper charging equipment and within safe operating limits.
