3Pcs- 3 Pin 1M Potentiometer Panel Mount 1M Ohm 1/2 Watt 3 Terminal Single Gang Linear Taper Rotary Potentiometer 1M Ohm Adjustable Variable Resistor Potentiometer Pot Electrical Circuitry & Parts

Descriptions: Panel Mount 1M Ohm 1/2 Watt Single Gang Linear Taper Rotary Potentiometer Breadboard Friendly

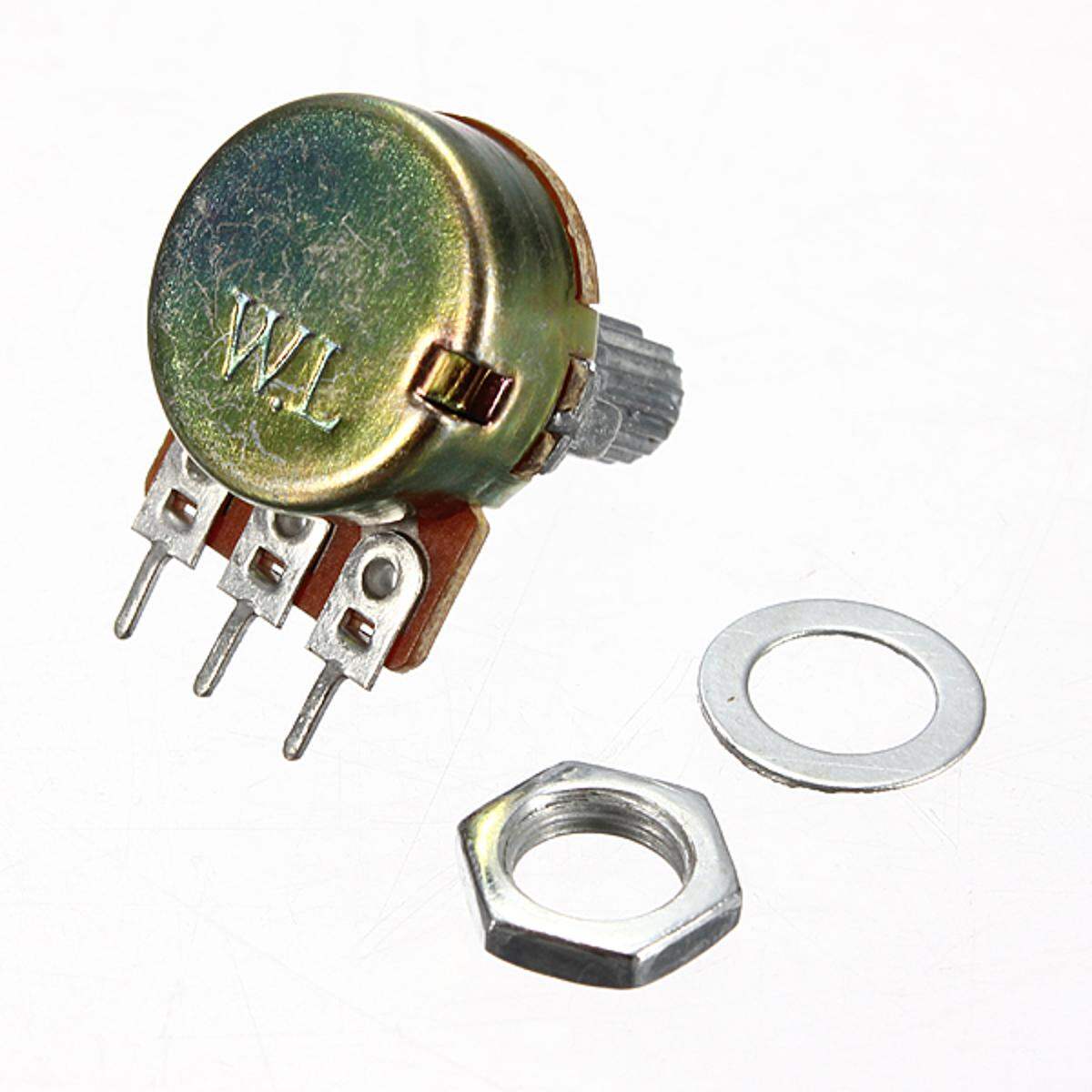

3 Pin 1M Potentiometer Panel Mount 1M Ohm 1/2 Watt 3 Terminal Single Gang Linear Taper Rotary Potentiometer 1M Ohm Adjustable Variable Resistor Potentiometer Pot

An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a ¼" metal knurled shaft diameter, solder lug terminals, no detents, and has a 1M linear taper.

Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

Specifications:

• B1M 1M ohm Single Linear Taper Rotary Potentiometers
• 1M Ohm, 1/2W Power, 3 Terminals, Single Linear (Type B), Suits Most Standard Knobs.
• Top adjustment type and knutled shaft for easy operate in daily use time.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
• Material : Metal Electronic Parts
• 100,000 Cycle Life
• Rotational travel: 300 °
• Static Stop Strength: 90 oz-in
• Rotational Torque: 0.5 to 1.25 oz-in
• Tolerance: 20%
• Base diameter: 16.5mm(Approx.)
• Base depth: 8.5mm(Approx.)
• Shaft diameter: 6mm(Approx.)
• Shaft length: 16mm (Approx.)
• Weight : 13g
