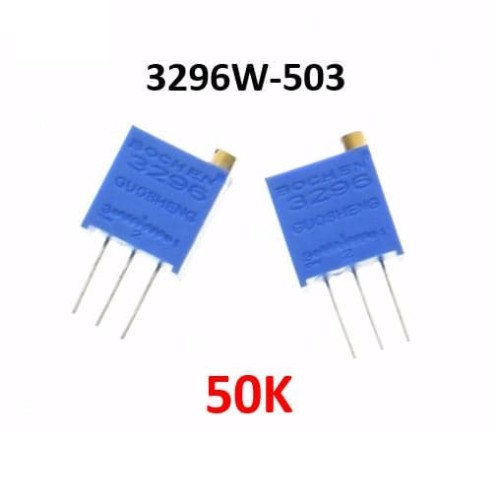

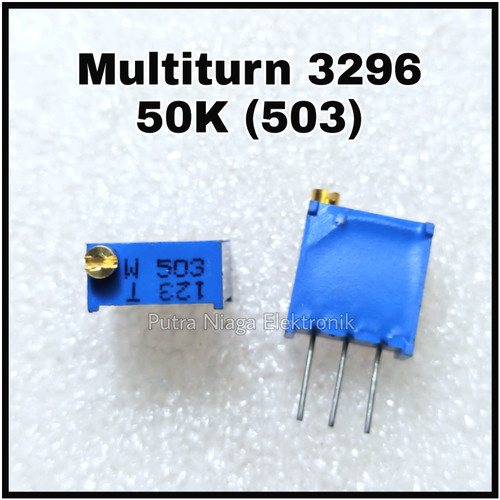

Description: Square Cermet 503 50K Trimmer Trim Pot Potentiometer

3296 503 Square Cermet 50K Ohm 503 1/2W Vertical Potentiometer Variable Resistors 3 Pin Leads 50K Ohm Trimpot Trimmer 25 Turn 3296 Adjustment Trim Pot Potentiometer

Square Trimpot Trimming Potentiometers perform a variety of circuit adjustments in all types of electronic equipment. Multi-turn trimmers consist of three actuation types – lead screw, worm gear, and planetary gear. Lead screw actuated trimmers have a linear wiper path; worm gear and planetary gear actuated trimmers have a circular path. Multi turn trimmers are suitable for applications that require fine resistance adjustment.

A common elements in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less. Through hole DIP mounting type. Multiturn design cermet potentiometer, squre linear Come with a plastic holder for holding them well.

Specifications:

• Max Power: 0.5W,1/2W PC Pins
• Cermet (Ceramic / Metallic composite)
• 25 Turn Top Adjustment
• Product Name : Cermet Potentiometer;
• Withstand Voltage : 500V
• Rated Power : 1/2W;
• Resistance Value : 50K Ohm(100,000ohm);
• Tolerance : 10%;
• Adjustment Type : Top Adjustment
• Mounting Type : Through Hole(DIP);
• Resistance Change Type : Linear;
• Resistive Material : Cermet
• Temperature Coefficient : 100ppm/C;
• Square Body Size : 9 x 9mm
• Total Length : 15mm
• Color : Blue
• Weight : 55g;

Features:

• High-Accuracy
• Sealed Against Moisture and Dirt
• Linear Type with Multi-Turn
• 25 Turn
• Cermet type
• Absolute Minimum Resistance: 2ohms or 1% maximum
• Rotational Life: 200 cycles

Note:

• Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
