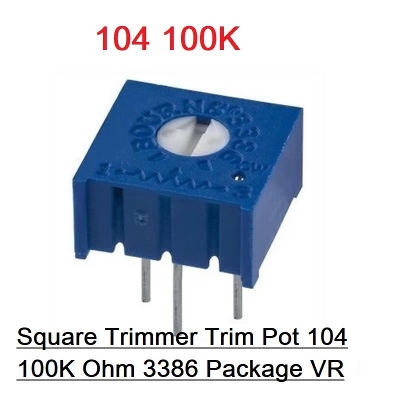

Description: Square Trimmer Trim Pot 104 100K Ohm 3386 Package Potentiometer 0.5W Top Adjust Variable Resistor

Square Trimmer Trim Pot 104 100K Ohm 3386 Package Potentiometer 0.5W Top Adjust Variable Resistor

Features:

• A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
• Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.
• Through hole DIP mounting type.
• Single turn design cermet potentiometer, square linear

Specifications:

• Product name: Variable Resistors.
• Withstand Voltage: 700V;
• Rated power: 1/2 W
• Resistance value: 100KOhm 104
• Tolerance: +/-10 percent ;
• Terminal number: 3;
• Number of turn: 1
• Adjustment Type: top adjustment;
• Mounting Type: through hole(dip);
• Resistive material: Cermet
• Dimension : 9.53×9.53×4.83mm
• Color: Blue;
• Weight: 2g;

• Product name: Variable Resistors.
• Withstand Voltage: 700V;
• Rated power: 1/2 W
• Resistance value: 100KOhm 104
• Tolerance: +/-10 percent ;
• Terminal number: 3;
• Number of turn: 1
• Adjustment Type: top adjustment;
• Mounting Type: through hole(dip);
• Resistive material: Cermet
• Dimension : 9.53×9.53×4.83mm
• Color: Blue;
• Weight: 2g;
