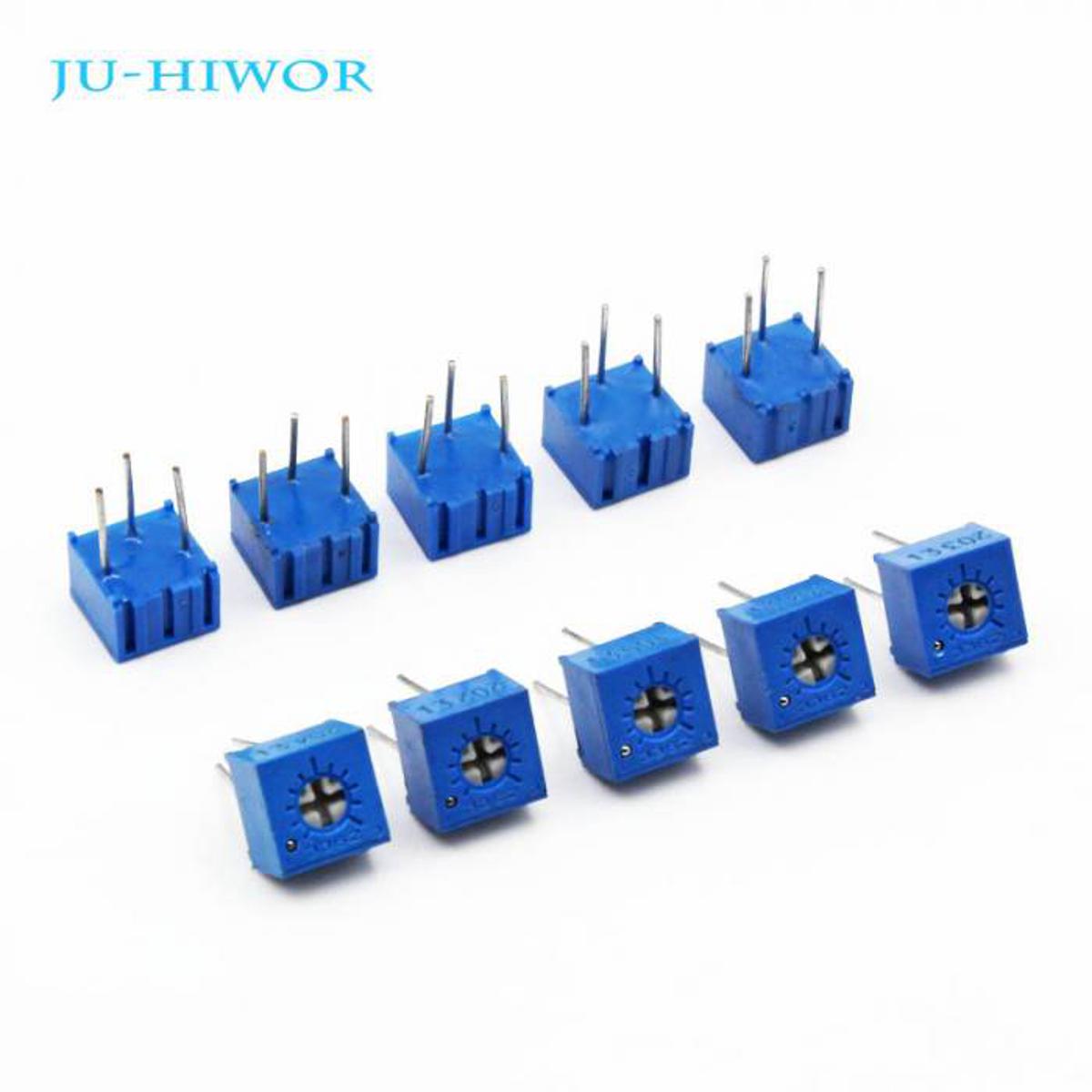

Description: 20K

• A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
• Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.
• Through hole DIP mounting type.
• Single turn design cermet potentiometer, squre linear

Specifications:

• Product name: Variable Resistors.
• Withstand Voltage: 700V;
• Rated power: 1/2 W
• Resistance value: 20K Ohm;
• Tolerance: +/-10 percent ;
• Terminal number: 3;
• Number of turn: 1
• Adjustment Type: top adjustment;
• Mounting Type: through hole(dip);
• Resistive material: Cermet
• Square body Size: 6. 8 x 6. 8mm/ 1/4″ x 1/4″ (low);
• Total Length: 11mm/ 7/16″;
• Lead distance: 4 mm / 5/32″5mm / 1/5″
• Color: Blue;
• Weight: 2g;
• Application:Apply for PCB or DIY.
