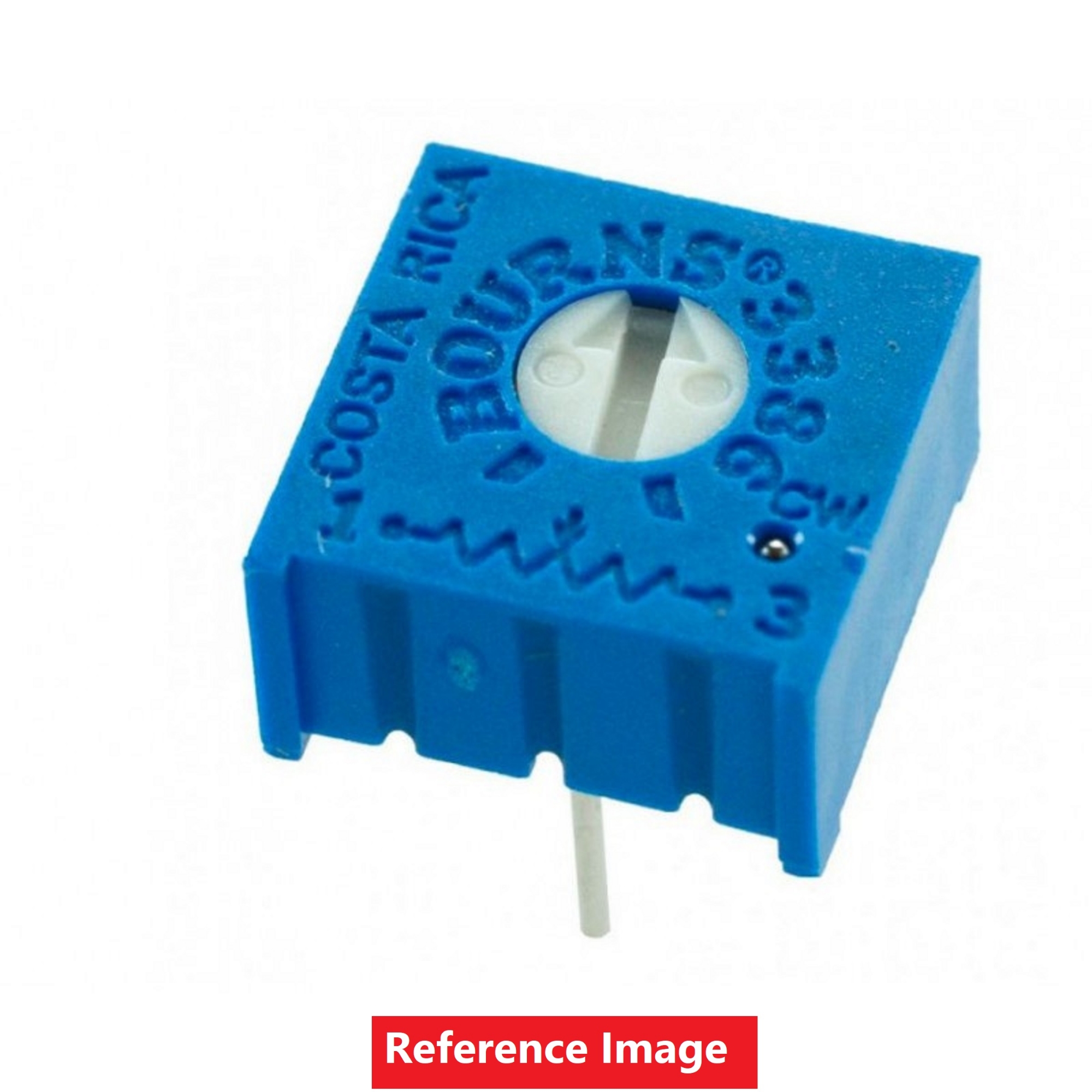

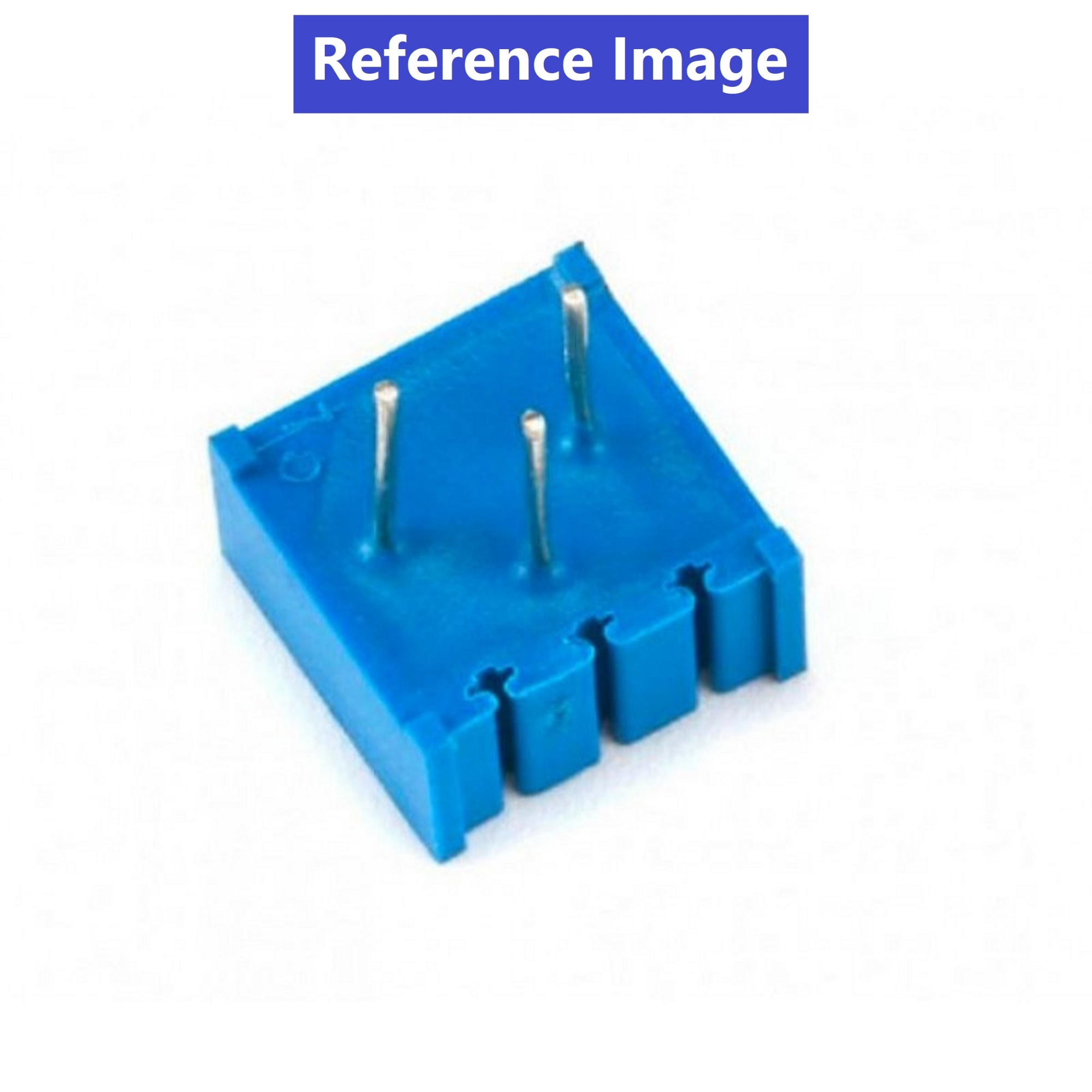

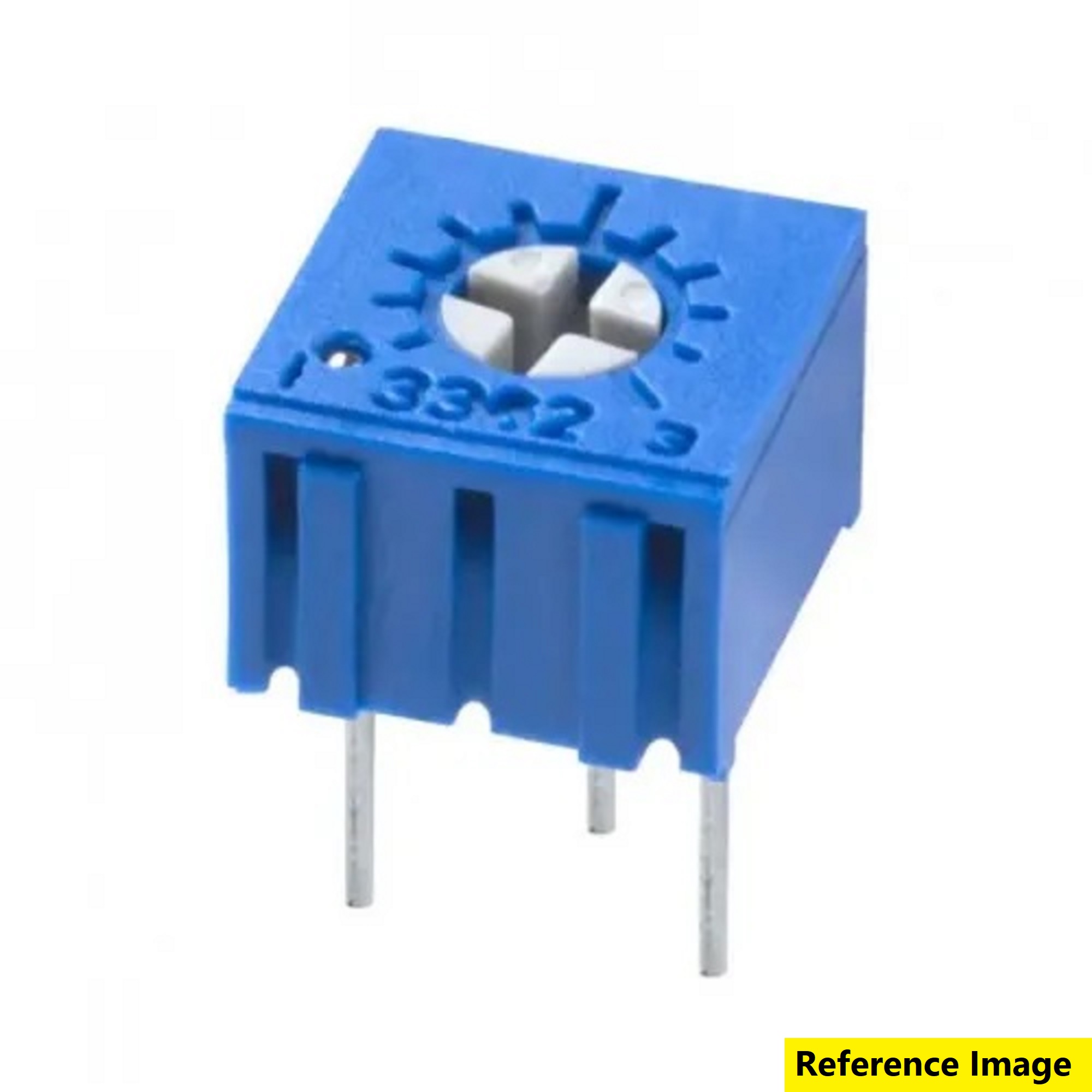

Description: 1K Ohm Potentiometer Trimmer Variable Resistor

3386 SQUARE 102 1K Potentiometer 3 Pin Leads 1K Resistor 1K Volume 1K Variable Resistor 102 Potentiometer 1/2W Multiturn Trimpot 1K 102 Variable Resistor Volume Control Pot

Features:

• A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
• Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.
• Through hole DIP mounting type.
• Single turn design cermet potentiometer, square linear

Specifications:

• Product name: Variable Resistors.
• Withstand Voltage: 700V;
• Rated power: 1/2 W
• Resistance value: 1K Ohm;
• Tolerance: +/-10 percent ;
• Terminal number: 3;
• Number of turn: 1
• Adjustment Type: top adjustment;
• Mounting Type: through hole(dip);
• Resistive material: Cermet
• Square body Size: 6. 8 x 6. 8mm
• Total Length: 11mm
• Lead distance: 4 mm
• Color: Blue;
• Weight: 2g;
• Application: Apply for PCB or DIY.
