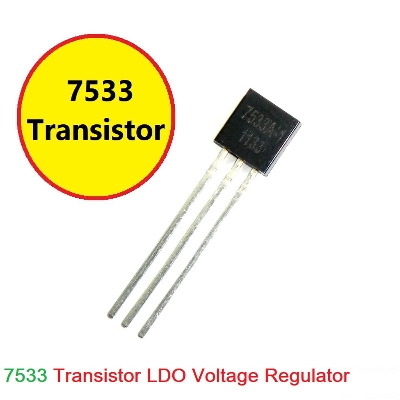

Description: 7533 Transistor LDO Voltage Regulator

7533 LDO Low Dropout Regulator Buck Chip TO-92 Package 3 Pin Low Voltage Differential Regulator Electronics Parts

The 7533 series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

Specifications:

• Application:General purpose
• Model Number:7533
• Package Type:Through Hole
• Type:Other

Features

• 1. Low power consumption
• 2. Low voltage drop
• 3. Low temperature coefficient
• 4. High input voltage (up to 24V)

Applications

• 1. Battery-powered equipment
• 2. Communication equipment
• 3. Audio/Video equipment

• Application: General purpose
• Model Number:7533
• Package Type: Through Hole
• Type: Other
