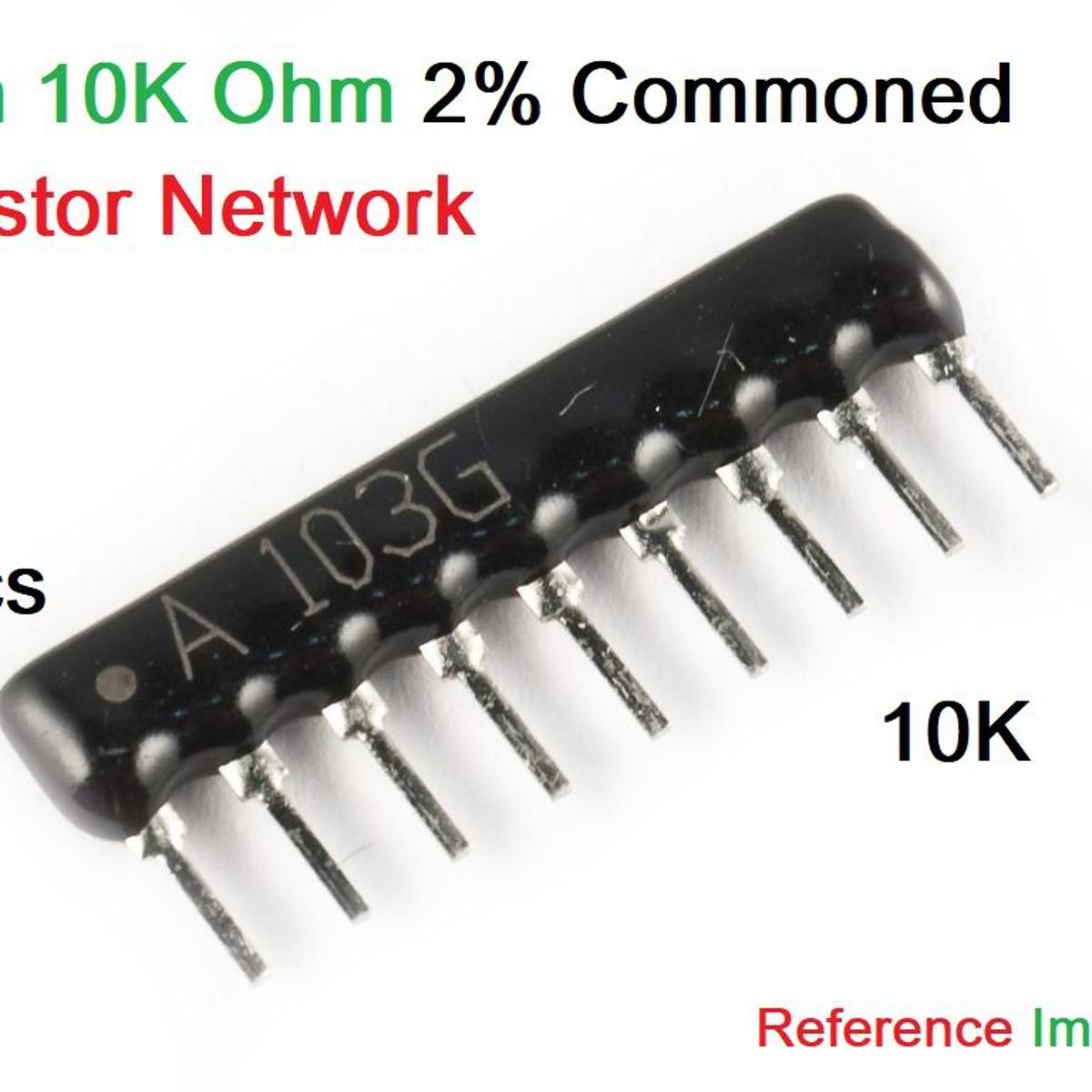

Picture of 3Pcs- A09-103 10K Resistor NETWORK 9 Pin Leads 10K Commoned Resistor 10K Ohm Tolerance ±2% Common Connected Network Array Resistor
Picture of 3Pcs- A09-103 10K Resistor NETWORK 9 Pin Leads 10K Commoned Resistor 10K Ohm Tolerance ±2% Common Connected Network Array Resistor

3Pcs- A09-103 10K Resistor NETWORK 9 Pin Leads 10K Commoned Resistor 10K Ohm Tolerance ±2% Common Connected Network Array Resistor

Category: Building Materials
SKU: UDBD04622
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 72
Tk 85
Tk 85
15% OFF
0 review(s)
  • Product: Networks Termination Style: SIP
  • Resistor Values: 10k Ohms
  • Tolerance: 2 %
  • Circuit Type: Bussed
  • Number of Resistors: 8
  • Number of Pins: 9
  • Temperature Coefficient: 100 PPM / C
  • Operating Temperature Range: - 55 C to + 125 C
  • Package/Case: SIP-9
  • Length: 25.4 mm Width: 2.41 mm Height: 4.95 mm
  • Package : Through-Hole SIP

Call For Order : 09613-800800

Description: 10k Ohm 2% 9 Pin Commoned Resistor Network

This is a 10K Ohm resistor array in 9 Pin package. useful for pull up. This resistor array package is useful for pull up one 8 bit port and first pin should be connected to vcc. this can also be used as pull down if you connect 1 pin to GND and other pins to the controller port pins.

10K Ohm 8 Commoned Resistor Network Array 9 PIN.This Singe In-Line component is actually 8 individual 10K Ohm resistors that share a common terminal on pin 6 (denoted with a black dot).

  • Metal glaze elements on a ceramic substrate
  • Suitable for use in high density circuit design

Features:

  • Product: Networks Termination Style: SIP
  • Resistor Values: 10k Ohms
  • Tolerance: 2 %
  • Circuit Type: Bussed
  • Number of Resistors: 8
  • Number of Pins: 9
  • Temperature Coefficient: 100 PPM / C
  • Operating Temperature Range: - 55 C to + 125 C
  • Package/Case: SIP-9
  • Length: 25.4 mm Width: 2.41 mm Height: 4.95 mm
  • Package : Through-Hole SIP
  • High-Reliability Cermet Resistors
  • Space Saving Over Individual Resistors
  • Low Profile






  • Product: Networks Termination Style: SIP
  • Resistor Values: 10k Ohms
  • Tolerance: 2 %
  • Circuit Type: Bussed
  • Number of Resistors: 8
  • Number of Pins: 9
  • Temperature Coefficient: 100 PPM / C
  • Operating Temperature Range: - 55 C to + 125 C
  • Package/Case: SIP-9
  • Length: 25.4 mm Width: 2.41 mm Height: 4.95 mm
  • Package : Through-Hole SIP
