Description: 2Pin GREEN Color KF950-2P 2 Pin

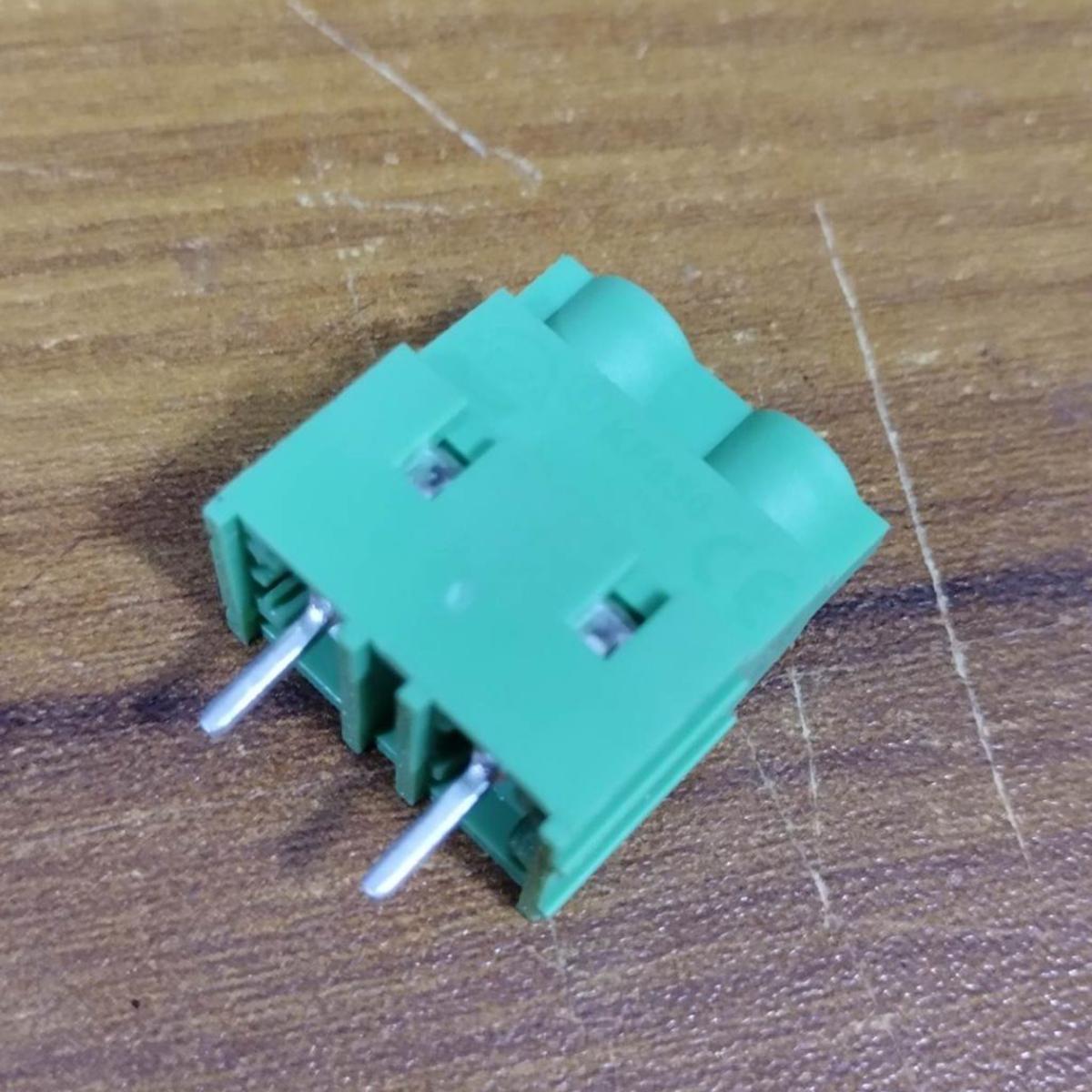

2Pin GREEN Color KF950-2P 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8mm Pitch Socket Strips For Electronics Cables Connectors Terminals

This terminal block has screws to keep the wires in place. It can hold wires from 12 to 22 AWG. This terminal block is ideally suited to miniature rack systems or telecoms equipment, which demand high contact density. As each terminal has a single corresponding pin spaced every 0.1″ (5.08 mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1″ male and female headers (if there is sufficient clearance from nearby components).

Specifications:
Connector: PCB Terminal Block
Termination: Screw
No. of Contacts: 2
Allowed Wire Size : 22-12 AWG
Voltage: 320v
Operating Current : 6A
Mounting Type: Through Hole
Pin Spacing : 10mm
Material: Metal and Plastic
Length : 27mm
Width : 29mm
Height : 27mm
Weight :3 gm each
Model: KP950
Features:
Saves space due to the small design
Screw connection with tension sleeve
Maximum contact force ensures a low-temperature rise
Connection in accordance with EN-VDE Standard.
Pitch: 8mm
Pin Number: 2
Pin header: Tin plated
Contacts: Nickel plated

• Connector: PCB Terminal Block
• Termination: Screw
• No. of Contacts: 2
• Allowed Wire Size : 22-12 AWG
• Voltage: 320v
• Operating Current : 6A
• Mounting Type: Through Hole
• Pin Spacing : 10mm
• Material: Metal and Plastic
• Length : 27mm
• Width : 29mm
• Height : 27mm
