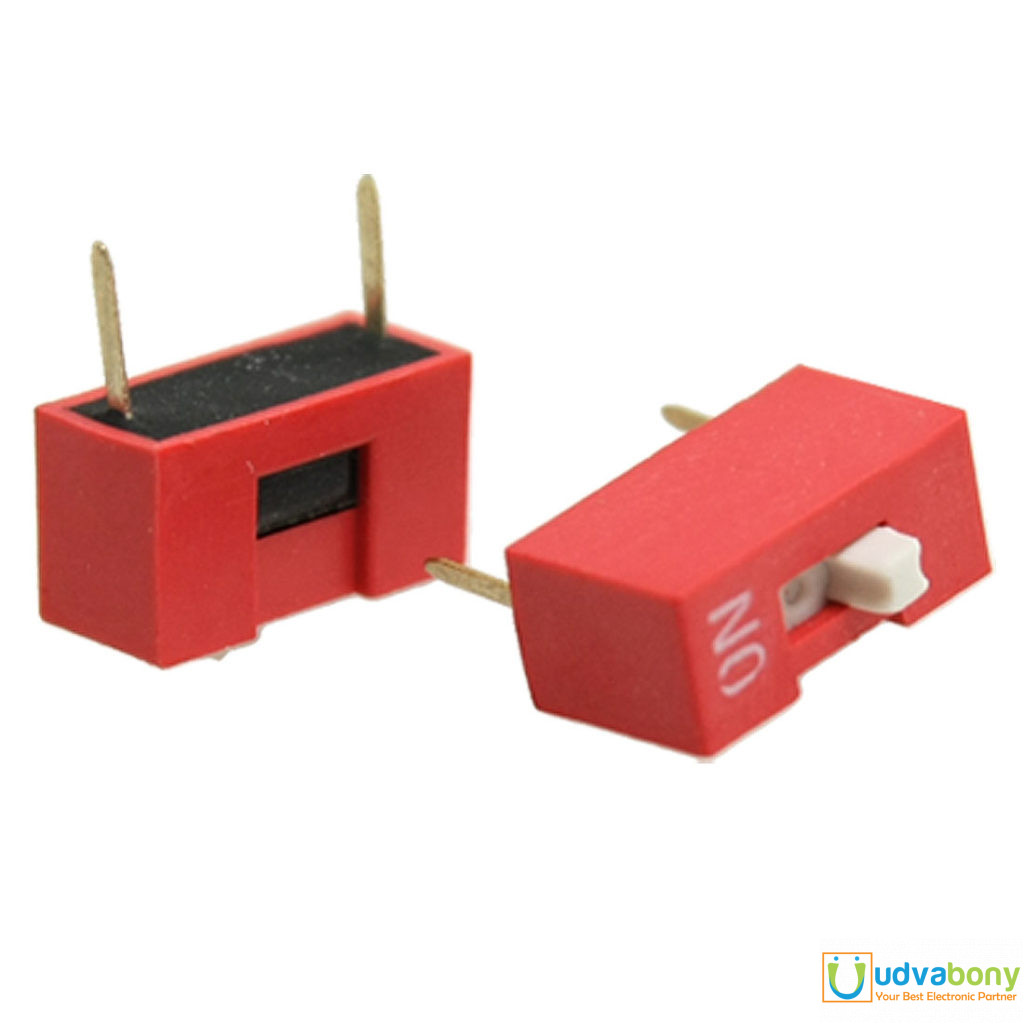

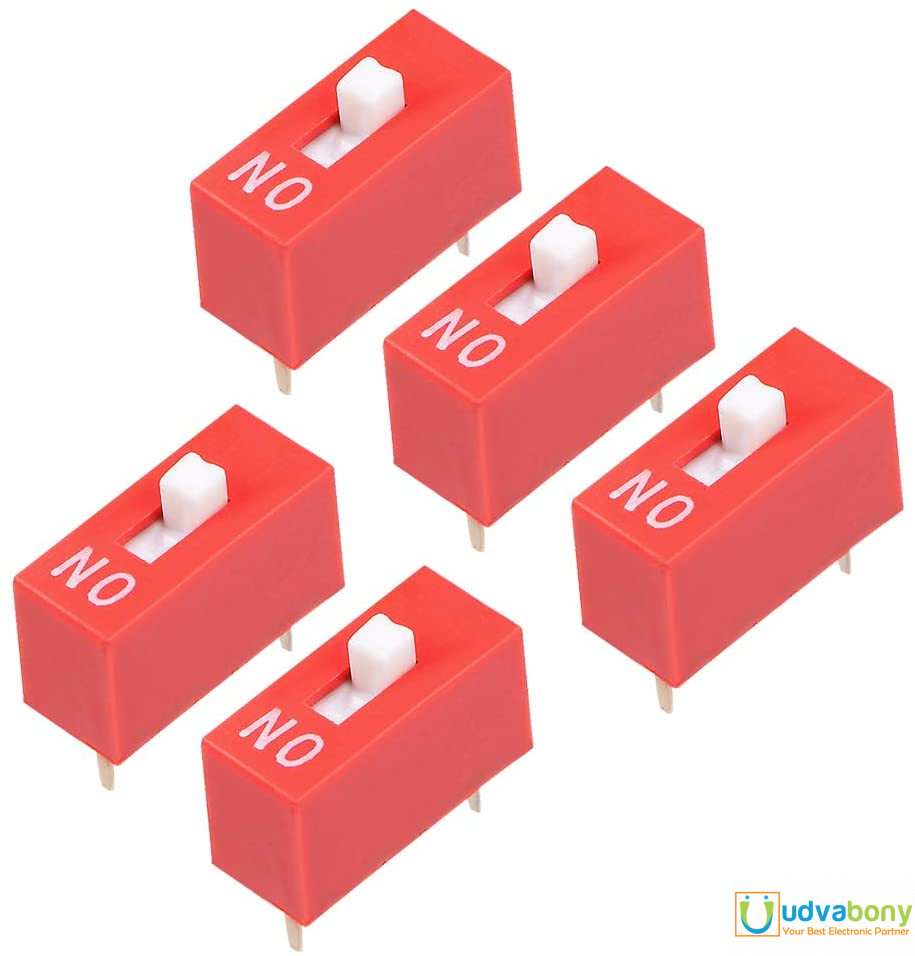

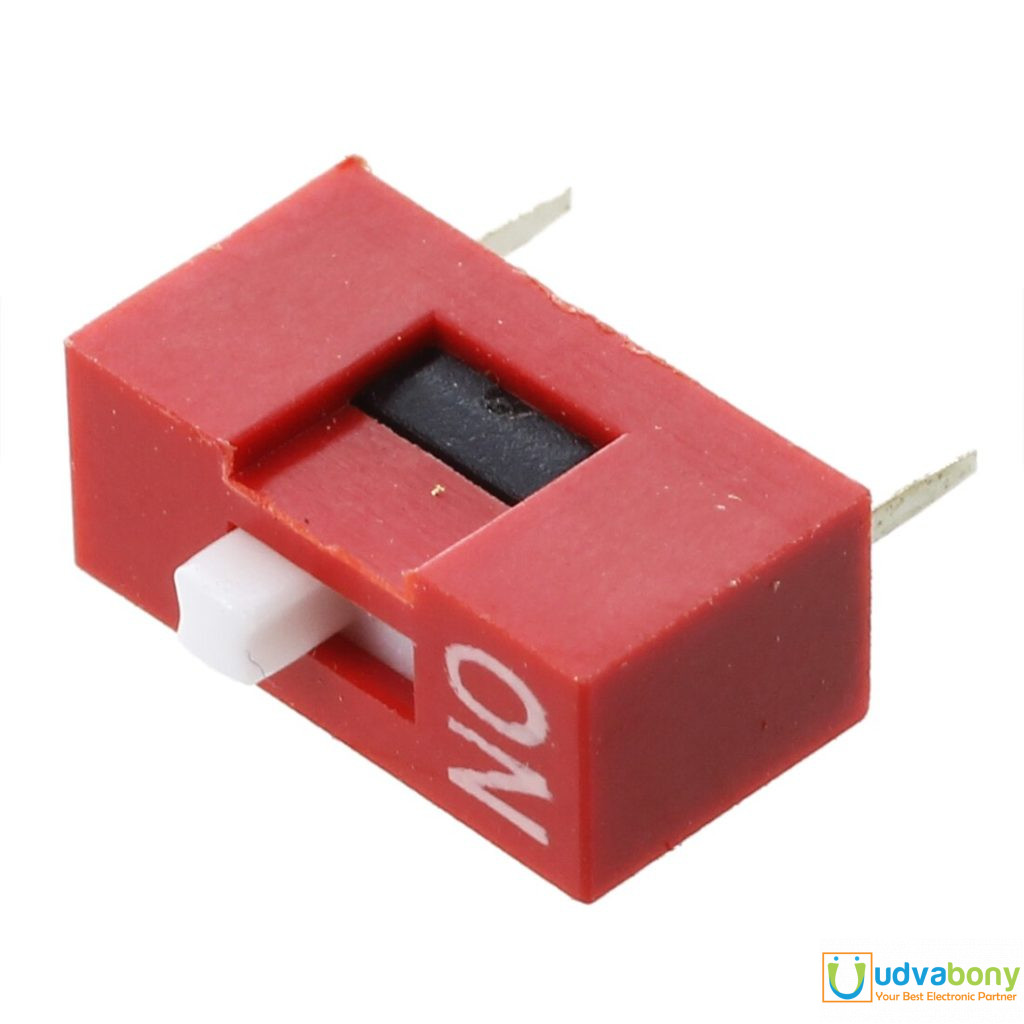

Description:  DIP1 Position Switch 2.54mm Pitch Horizontal DIP Switch One Single Positions Piano Type Dial DIP Slide Switch For Electronics Circuit PCB

DIP switch with 1 individual switch positions. The pins have .1″(2.54mm) spacing – fits great into a breadboard! Works great as general control switches. DIP switch is generally set address for a device generally this type of binary coded switches are now used it only two states, representing 0.1, its majority-digit 1-12, based on each of the state, form a binary number, the binary number is converted to decimal address code of the device. This is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Music Instrument, etc.

Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects.

Specification:

• Name: DIP Switch
• Main Material: Plastic, Metal
• Type: Horizontal Type & Slide
• Switching Rating: 100mA DC 50V
• Switching Rating: 25mA DC 24V
• Initial Contact Resistance: 50mΩ
• Typical Contact Resistance: 100mΩ
• Position Number:1
• Color: Any
• Pin Pitch: 2.54 mm

Features :

• Standard Mounting
• SPST Switches
• Each Contact Numbered
• Leads Pre-Tinned,
• New, Never Used.
• RoHS Compliant.
