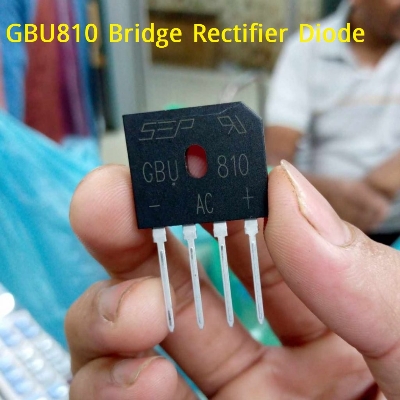

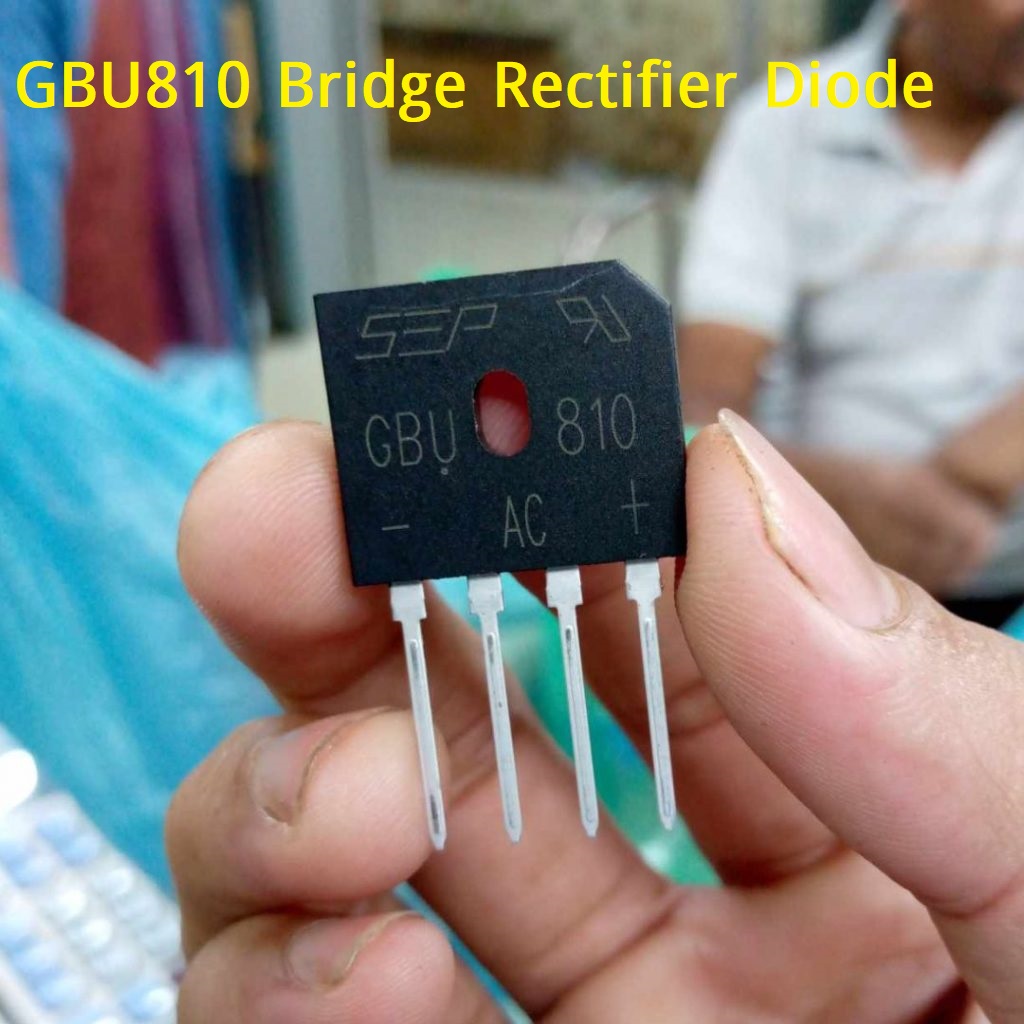

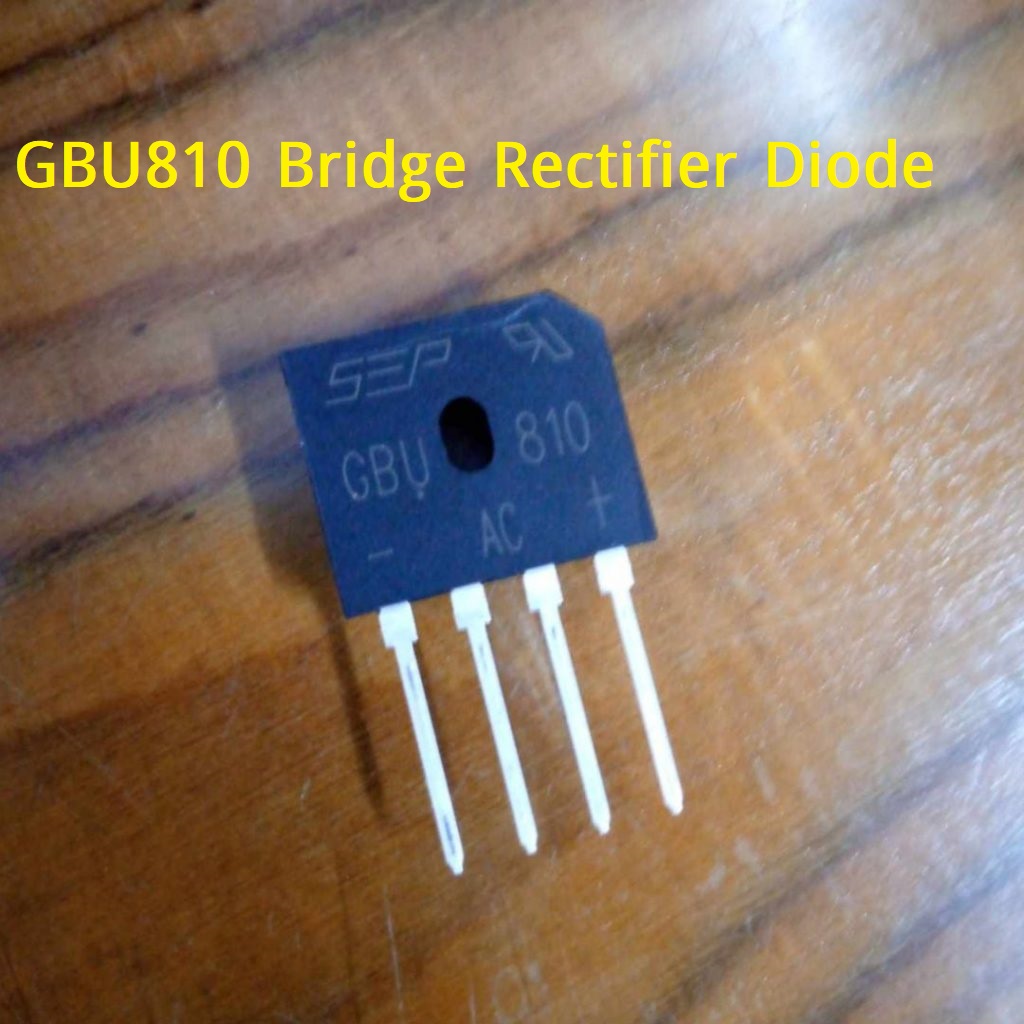

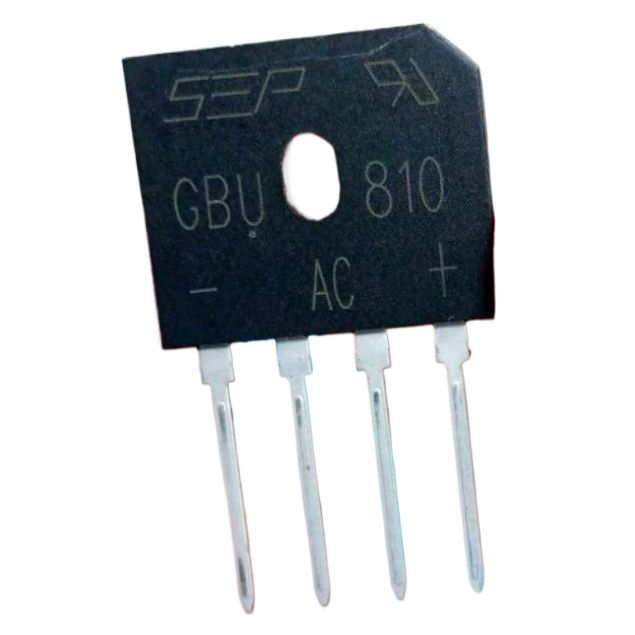

Description: GBU810 AC Bridge Rectifier Diode

GBU810 AC Bridge Rectifier Diode 1000V 8A Bridge Rectifiers IC Diode 4 Pin Leads Chip For Generator Motor

Specifications:

• Case: GBU
• Case Material: Molded Plastic. UL Flammability
• Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish Tin. Solderable per MIL-STD-202,
• Method 208
• Polarity: Marked on Body
• Mounting: Through Hole for #6 Screw
• Mounting Torque: 5.0 Inch-pounds Maximum
• Ordering Information: See Last Page
• Marking: Date Code and Type Number
• Weight: 6.6 grams (approximate)

Features :

• Glass Passivated Die Construction
• High Case Dielectric Strength of 1500VRMS
• Low Reverse Leakage Current
• Surge Overload Rating to 200A Peak
• Ideal for Printed Circuit Board Applications
• UL Listed Under Recognized Component
• Index, File Number E94661
• Lead Free Finish, RoHS Compliant (Note 4)

• Case: GBU
• Case Material: Molded Plastic. UL Flammability
• Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish Tin. Solderable per MIL-STD-202,
• Method 208
• Polarity: Marked on Body
• Mounting: Through Hole for #6 Screw
• Mounting Torque: 5.0 Inch-pounds Maximum
• Ordering Information: See Last Page
• Marking: Date Code and Type Number
• Weight: 6.6 grams (approximate)
