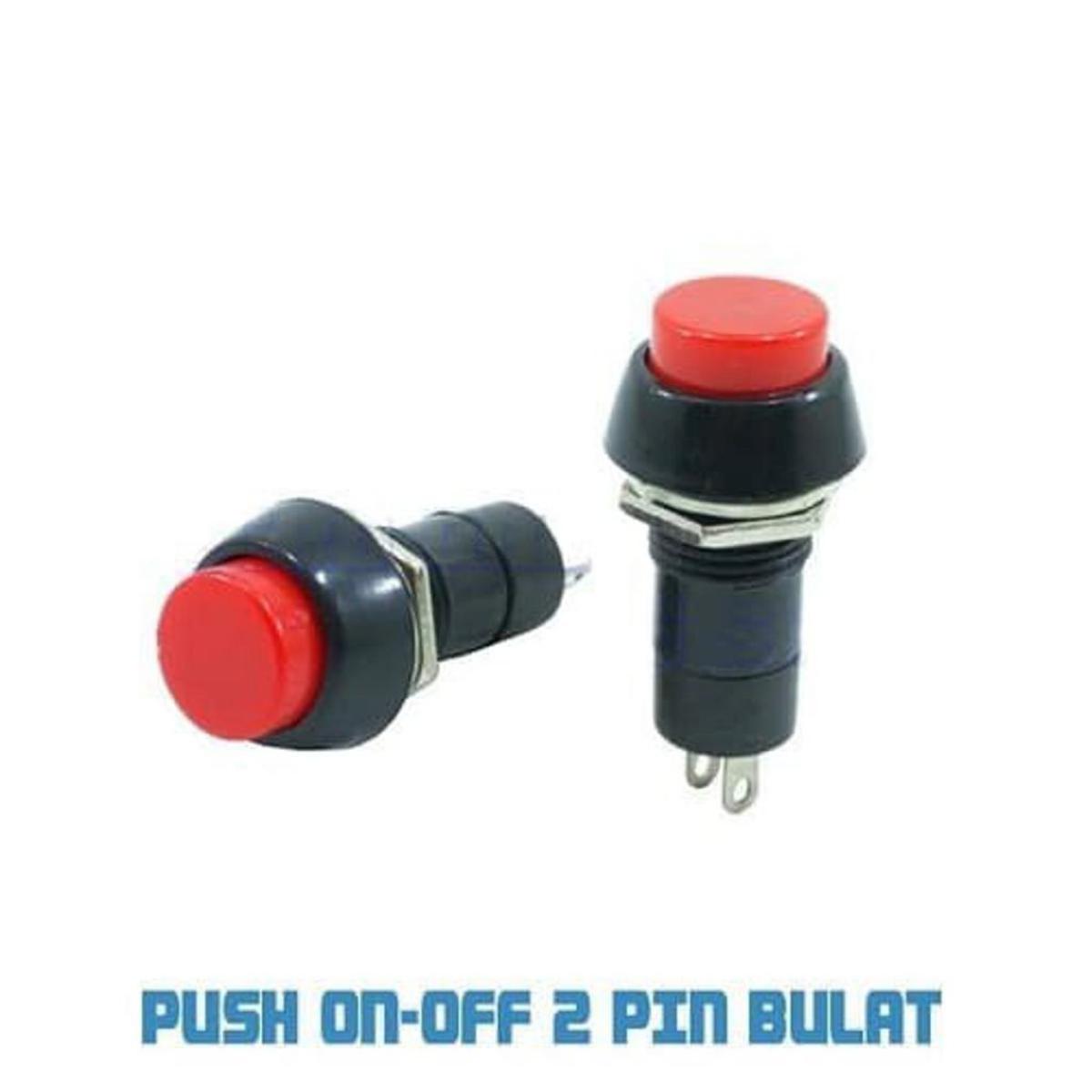

Description: Push Switch PBS-11 PUSH BUTTON AC 250V 3A

Push Switch PBS-11 PUSH BUTTON AC 250V 3A 2 Pin Leads On Off SPST RED CAP Plastic Push Button Switch Latching Switches

An aesthetically appealing design features single back-of-panel lock-nut fixing and screw clamp terminals for easy mounting and connection.

Specifications:

• Product name : push button switch;
• Model number: PBS-11A
• Action Type: Push Switch
• Contact Type: 1NO;
• Terminals: 2 Pins
• Material : plastic, metal, Color: red

• Current: 3A

• Voltage: 250VAC

• Type: Lock

• Opening diameter: 11.9 mm.

• Height: 29.8 mm.

• Distance between feet: 6.25 mm.

• Foot width: 0.2 mm.

• Thickness: 0.6 mm.

• Cable length: 10 cm.

• Total length: 13.5 cm.

• Main application: used for car changeover switches, motorcycles, electric vehicles, etc., can be used for all kinds of households (Note: the wire color is random )

Features:

• Type: Momentary Push Button Switch (switch is only “on” when the button is held down)
• Max. contact resistance: 20m
• Contact resistance 50 mΩ max.
• Insulation resistance 100 MΩ min. at 500 V DC
• Dielectric strength 1000 V 50/60 Hz / 1 min.
• Au over Ni contact treatment on bronze

Dimensions:

• Switch front dia: 12 mm.
• Mounting dia: 17 mm.
• Length: 40 mm.

Applications:

• Educational Projects.
• Industrial panels.
• Robot panels.
• Crane panels.
• Crane panels.
• Electrical panels.
• Agriculture instruments.
• And many more applications.

• Product name : push button switch
• Model number: PBS-11A
• Action Type: Push Switch
• Contact Type: 1NO
• Terminals: 2 Pins
• Material : plastic metal Color: red
