3Pcs- Resistors Network A09-104 9 Pin 100K Commoned Resistor 100K Ohm Tolerance ±2% Common Connected Network Array Resistor Electronics Circuitry & Parts

Name: 3Pcs- Resistors Network A09-104 9 Pin 100K Commoned Resistor 100K Ohm Tolerance ±2% Common Connected Network Array Resistor Electronics Circuitry & Parts
Brand: No Brand
SKU: ELPB1014634
Price: 166.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: ELPB1014634

Manufacturer: No Brand

Seller: Electronics Parts BD

Tk 166

0 review(s)

Call For Order : 09613-800800

Description: Resistor Network 9 Pin 100K A09-104

A09-104 Resistors Network 9 Pin 100K Commoned Resistor 100K Ohm Tolerance ±2% Common Connected Network Array Resistor Electronics Circuitry & Parts

This is a 100K Ohm resistor array in 9 Pin package. useful for pull up. This resistor array package is useful for pull up one 8 bit port and first pin should be connected to vcc. this can also be used as pull down if you connect 1 pin to GND and other pins to the controller port pins.

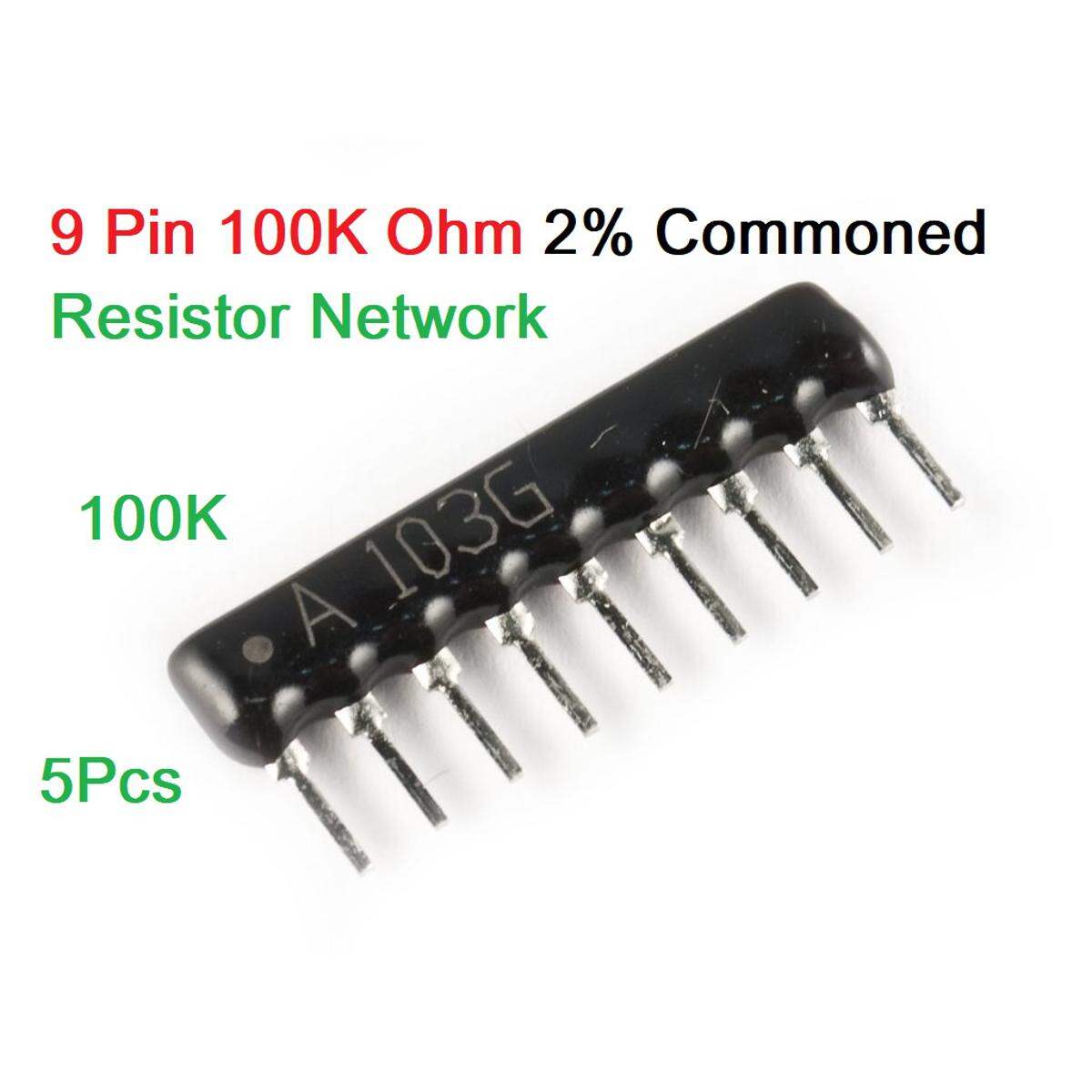

100K Ohm 8 Commoned Resistor Network Array 9 PIN. This Singe In-Line component is actually 8 individual 100K Ohm resistors that share a common terminal on pin 6 (denoted with a black dot).
Metal glaze elements on a ceramic substrate
Suitable for use in high density circuit design
Features:Product: Networks Termination Style: SIP
Resistor Values: 100k Ohms
Tolerance: 2 %
Circuit Type: Bussed
Number of Resistors: 8
Number of Pins: 9
Temperature Coefficient: 100 PPM / C
Operating Temperature Range: – 55 C to + 125 C
Package/Case: SIP-9
Length: 25.4 mm Width: 2.41 mm Height: 4.95 mm
Package : Through-Hole SIP
Features

High-Reliability Cermet Resistors
Space Saving Over Individual Resistors
Low Profile
High reliability with best quality
Miniature, high density packaging, number of pins=9
Network and Array resistance value= 10k ohm
8 10K resistors for Pull up
best for industrial hobbyist projects
