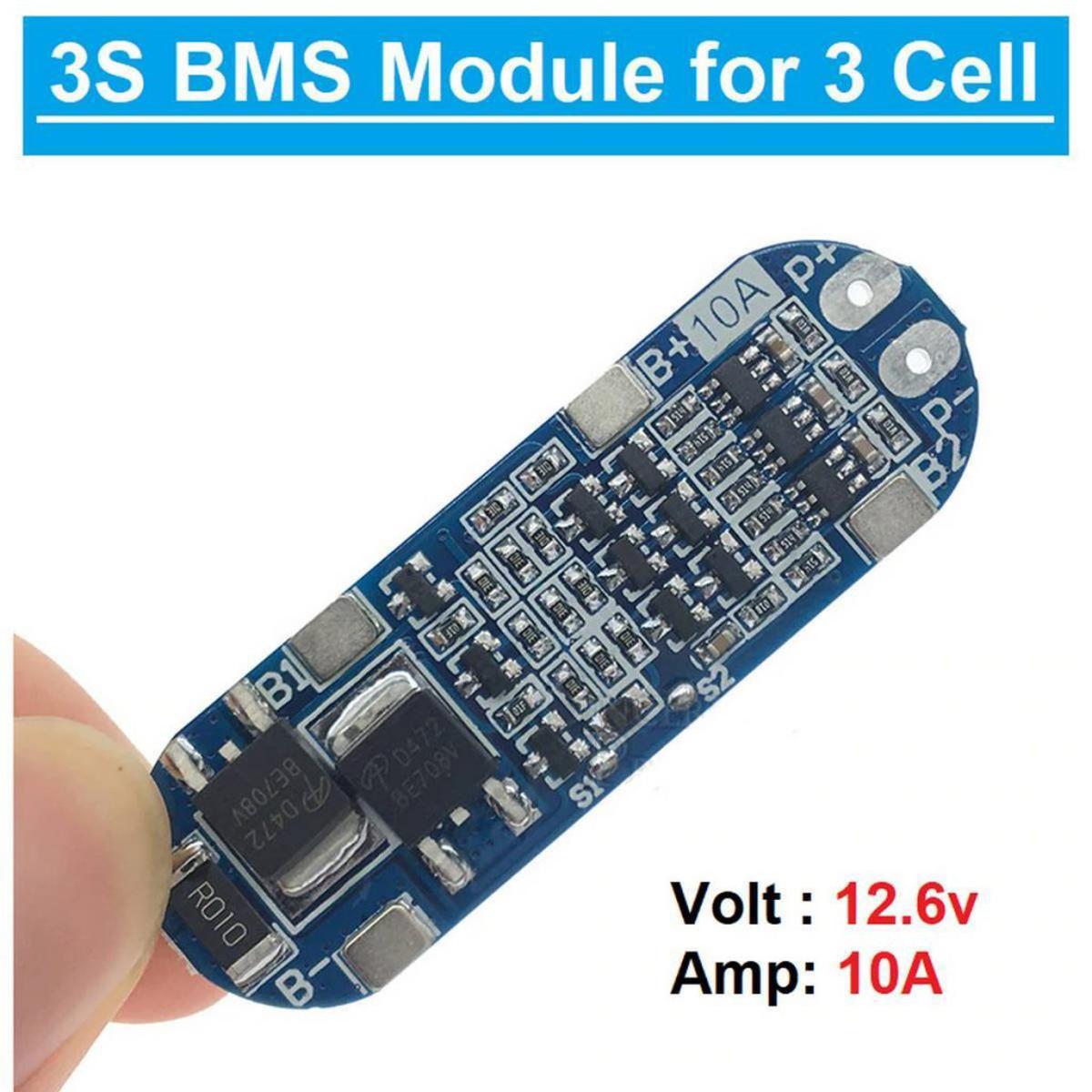

Description: BMS Battery Protection Board 3S 10A 11.1V 12.6V 18650

3S BMS BLUE 3S 12V 10A 18650 Lithium Battery Charger Module 11.1V 12.6V 10A Charge Discharge Current Short Circuit Protection Function Battery Management System

Specifications:

Brand new

Size: approx.50x16x3.5mm

Maximum discharge current: 10A

Overcharge detection voltage: 4.25-4.35V±0.05V

Over-discharge detection voltage: 2.3-3.0V±0.05V

Maximum working current: 5A-10A

Transient current: 9A-10A

Operating temperature: -40~50°

Storage temperature: -40~80°

Quiescent current: ＜6uA

Internal resistance: ＜60mΩ

Service life: ＞30,000 hours

Features:

High Quality

Short circuit protection.

Overcharge protection.

Over-discharge protection.

Overcurrent protection.

Can be applied to various 3.7V lithium core.

Compact size and lightweight.

Fine workmanship and durable.

Ensure the security of battery pack.

Stable performance.

Fine workmanship and durable.

Suitable for:

10.8V (Rated voltage of polymer battery)

11.1V (18650 or 3.7V lithium battery rated voltage)

12.6V (Lithium battery full charge voltage)

Welding point Description:

B+ : Connect to the battery positive

B- : Connect to the battery negative

BM: Connect to the battery 1 and battery 2 joining point

P+ : Connect to the charge / discharge side of the positive terminal

P- : Connect to the charge / discharge side of the negative terminal

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

• Short circuit protection.
• Overcharge protection.
• Over-discharge protection.
• Overcurrent protection.
• Can be applied to various 3.7V lithium core.
• Compact size and lightweight.
• Fine workmanship and durable.
• Ensure the security of battery pack.
• Suitable for:
• 10.8V (Rated voltage of polymer battery)
• 11.1V (18650 or 3.7V lithium battery rated voltage)
• 12.6V (Lithium battery full charge voltage)
