Description: BMS Battery Protection Board 3S 10A 11.1V 12.6V 18650

4 IC 3S BMS BLUE 3S 12V 10A 18650 Lithium Battery Charger Module 11.1V 12.6V 10A Charge Discharge Current Short Circuit Protection Function Battery Management System

Specifications:

• Brand new
• Size: approx.50x16x3.5mm
• Maximum discharge current: 10A
• Overcharge detection voltage: 4.25-4.35V±0.05V
• Over-discharge detection voltage: 2.3-3.0V±0.05V
• Maximum working current: 5A-10A
• Transient current: 9A-10A
• Operating temperature: -40~50°
• Storage temperature: -40~80°
• Quiescent current: ＜6uA
• Internal resistance: ＜60mΩ
• Service life: ＞30,000 hours

Features:

• High Quality
• Short circuit protection.
• Overcharge protection.
• Over-discharge protection.
• Overcurrent protection.
• Can be applied to various 3.7V lithium core.
• Compact size and lightweight.
• Fine workmanship and durable.
• Ensure the security of battery pack.
• Stable performance.
• Fine workmanship and durable.
• Suitable for:
• 10.8V (Rated voltage of polymer battery)
• 11.1V (18650 or 3.7V lithium battery rated voltage)
• 12.6V (Lithium battery full charge voltage)

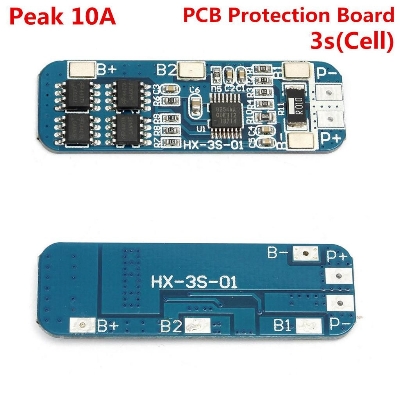

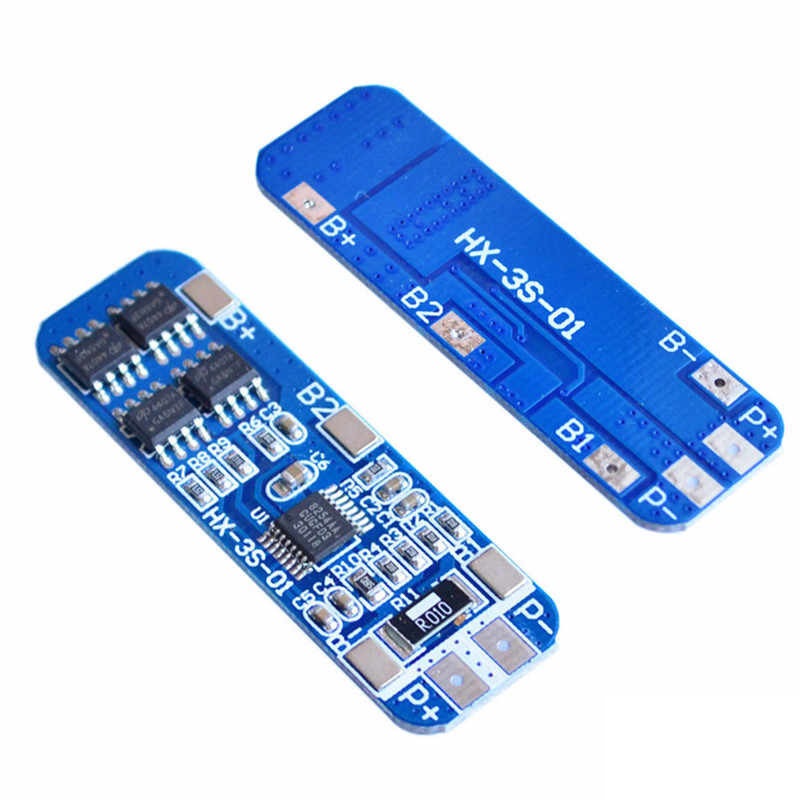

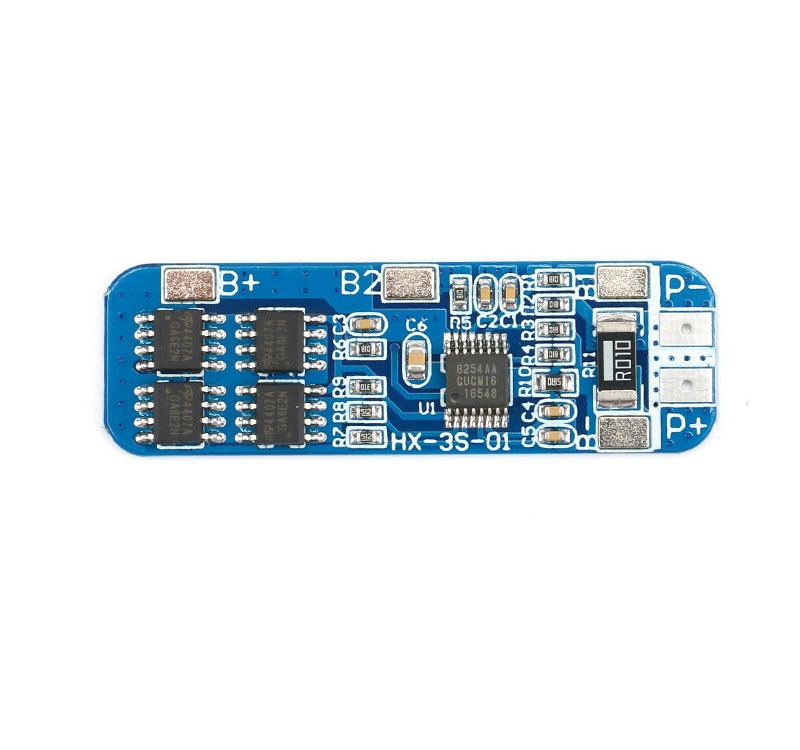

Welding point Description:

• B+ : Connect to the battery positive
• B- : Connect to the battery negative
• BM: Connect to the battery 1 and battery 2 joining point
• P+ : Connect to the charge / discharge side of the positive terminal
• P- : Connect to the charge / discharge side of the negative terminal

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
