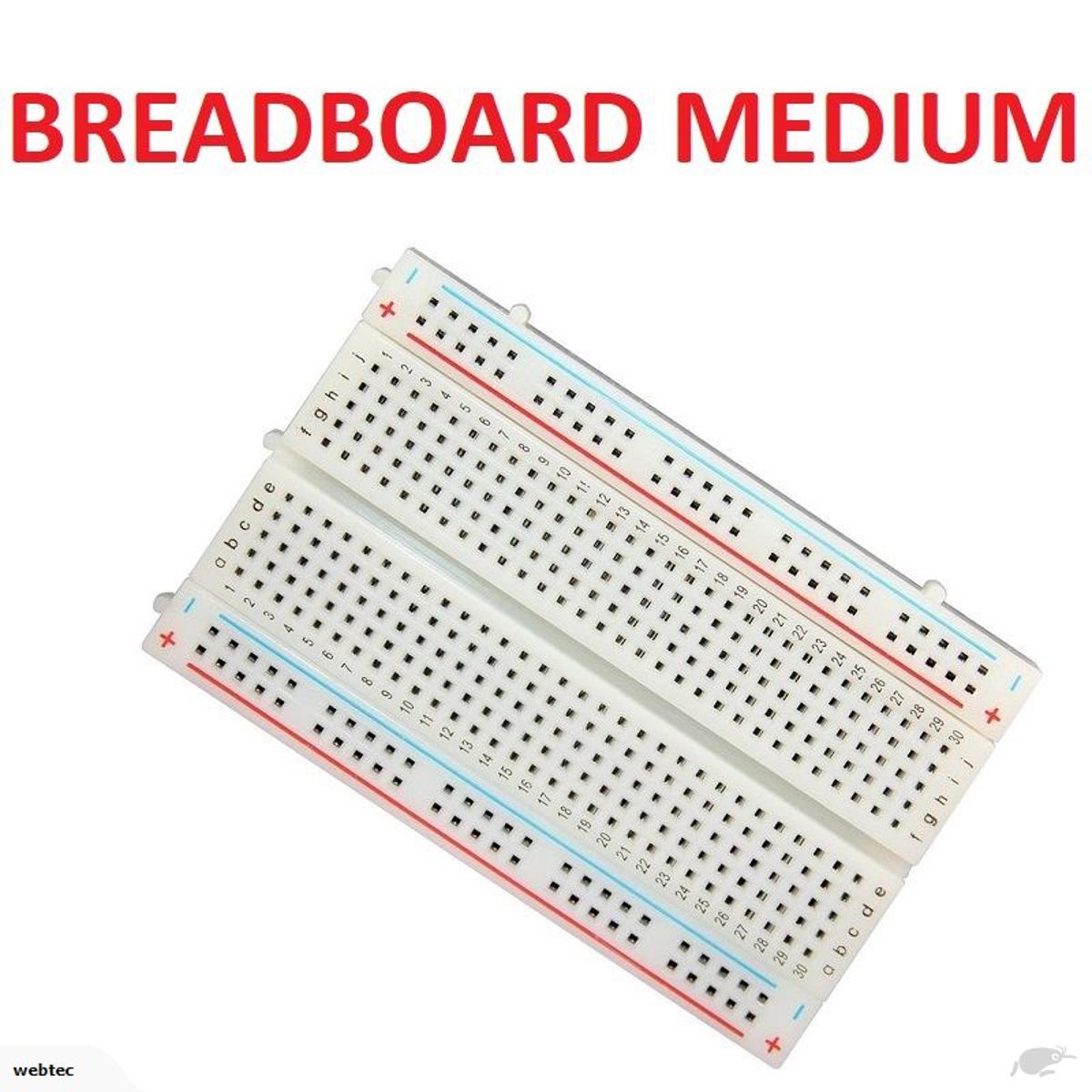

Description: Breadboard Medium Size Solderless White Prototype Test Circuit Board Plug-in 400 Tie Points

Testing Bread Board-400 is a White solderless (plug-in) breadboard. The White breadboard is great for students because the internal connections can be seen. It has a total of 400 connection-tie points (i.e. 400 wire insertion holes), including 4 power rails. Solder less breadboards are useful for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The TB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails. The housing is made of White ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. Bread Boards are Lead-Free and RoHS Compliant. Finished projects can be moved to a SB400 Solder able PC Bread Board to make them permanent.

Specifications:

• Brand China
• Color: White
• 100% Brand new and high quality!
• Plastic housing, metal contact clips.
• Completely reusable.
• Colored coordinates for easy component placement.
• 400 tie-point.2 power lanes, tie point 100,1 double-strip, tie point 300.
• Accept wire with diameter 20-29 AWG
• Voltage / Current: 300V/3-5A
• Dimension: 82x55x8.5mm
• Weight: 54g

Features:

• Double sided tape on back of breadboard
• White, for a professional appearance
• Colored coordinates for easy component placement
• Accepts a variety of wire sizes (AWG:20-29)
• Excellent for DIY projects, prototyping and experimenting

Package Include:

• 1 x Breadboard Medium Size Solderless White Prototype Test Circuit Board Plug-in 400 Tie Points Pin For Arduino Project Board DIY

• Brand China
• Color: White
• 100% Brand new and high quality!
• Plastic housing, metal contact clips.
• Completely reusable.
• Colored coordinates for easy component placement.
• 400 tie-point. 2 power lanes, tie point 100, 1 double-strip, tie point 300.
• Accept wire with diameter 20-29 AWG
• Voltage / Current: 300V/3-5A
• Dimension: 82x55x8.5mm
• Weight: 54g
