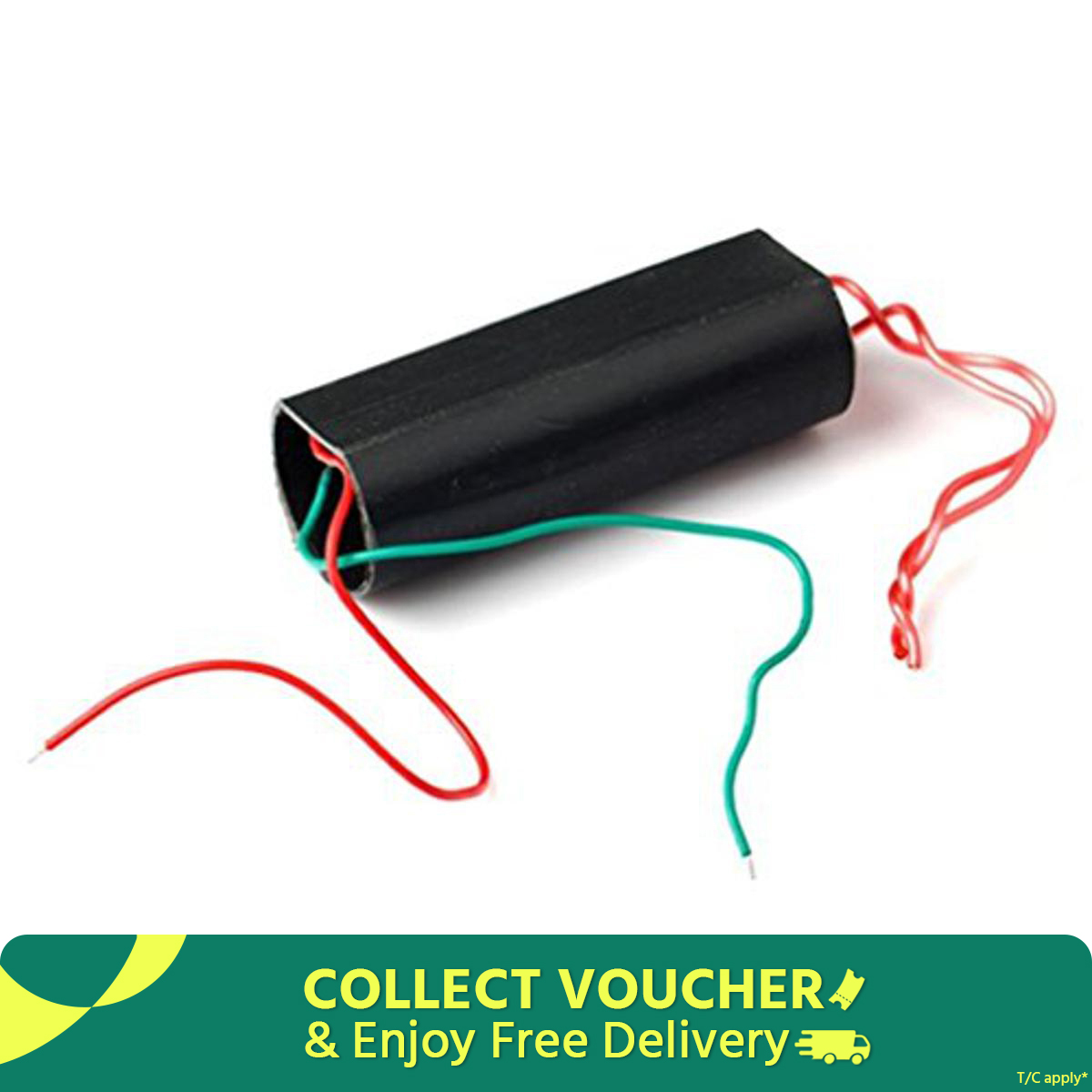

Description: DC 3.6V-6V To 400KV Boost Step Up Power Module High Voltage Generator

DC 3V-6V bis 400kV 400000V Boost Step up Power Module High Voltage Generator is a DC boost module that serves your purpose of voltage boost for DIY projects. But at the same time, the high-voltage module should avoid the use of electricity in high voltage no-load. Power must be adjusted to a suitable distance to the high-voltage output line; battery capacity is proportional to the distance and the use of the high-pressure arc (not a voltage as high as possible, you must provide enough current). Experimental test were conducted with the arc distance from short to long. Do not exceed the maximum arc distance electricity as energy can not be released due to high pressure and can easily damage the module.

• Input voltage: DC 3.6V – 6V
• Output voltage: DC 400KV – 600KV(Please note that when security)
• High type: pulse current
• High voltage bipolar discharge distance: 10mm – 20mm
• Output voltage lines length: about 100mm

Specification:

• Input voltage: DC 3.6V – 6V
• Output voltage: DC 400KV – 600KV(Please note that when security)
• High type: pulse current
• High voltage bipolar discharge distance: 10mm – 20mm
• Output voltage lines length: about 100mm
• Input power cable length: about 10mm (red is positive)
• Dimensions : ¦µ24 x 63mm

Power:

3.7V Li-ion battery can be used single or two series such as 18650 idle cell phone batteries ( to remove the protection board the proposed capacity of 2000mAh or more ) or NiCd / NiMH battery pack 4V or 6V lead acid batteries.This module is a small production with high-pressure science inverter transformer / booster finished module the input terminal DC 3V – 7.2V can get 20KV DC high voltage (about 1-2 cm arc) at the output can be used as high school science experiments electronic equipment negative ion generator high voltage source to use when making small science.

Note:

1. The high-voltage module should not be powered on when it is under high voltage no-load status. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity and voltage is proportional to the high voltage arc distance)2.During the experiment, please test the arc distance from short to long, DO NOT exceed the maximum arc distance, or the high voltage energy might not be released and it may easily damage the module.3. The input voltage will affect the output voltage and Arc distance.4. The power of the module is large and the heat dissipation inside is weak. Please let the module work intermittently, continuous work no longer than 1 minute. Improper voltage and long working hours may easily damaged the module.

Package Includes:

• 1 x 3.7V to 400KV Step-up Power Module Generator

• Input voltage: DC 3.6V – 6V
• Output voltage: DC 400KV – 600KV(Please note that when security)
• High type: pulse current
• High voltage bipolar discharge distance: 10mm – 20mm
• Output voltage lines length: about 100mm
• Input power cable length: about 10mm (red is positive)

• #multi plug
